• Semi-finishing and finishing applications.
• Through tool coolant.
• Secure and rigid insert clamping.

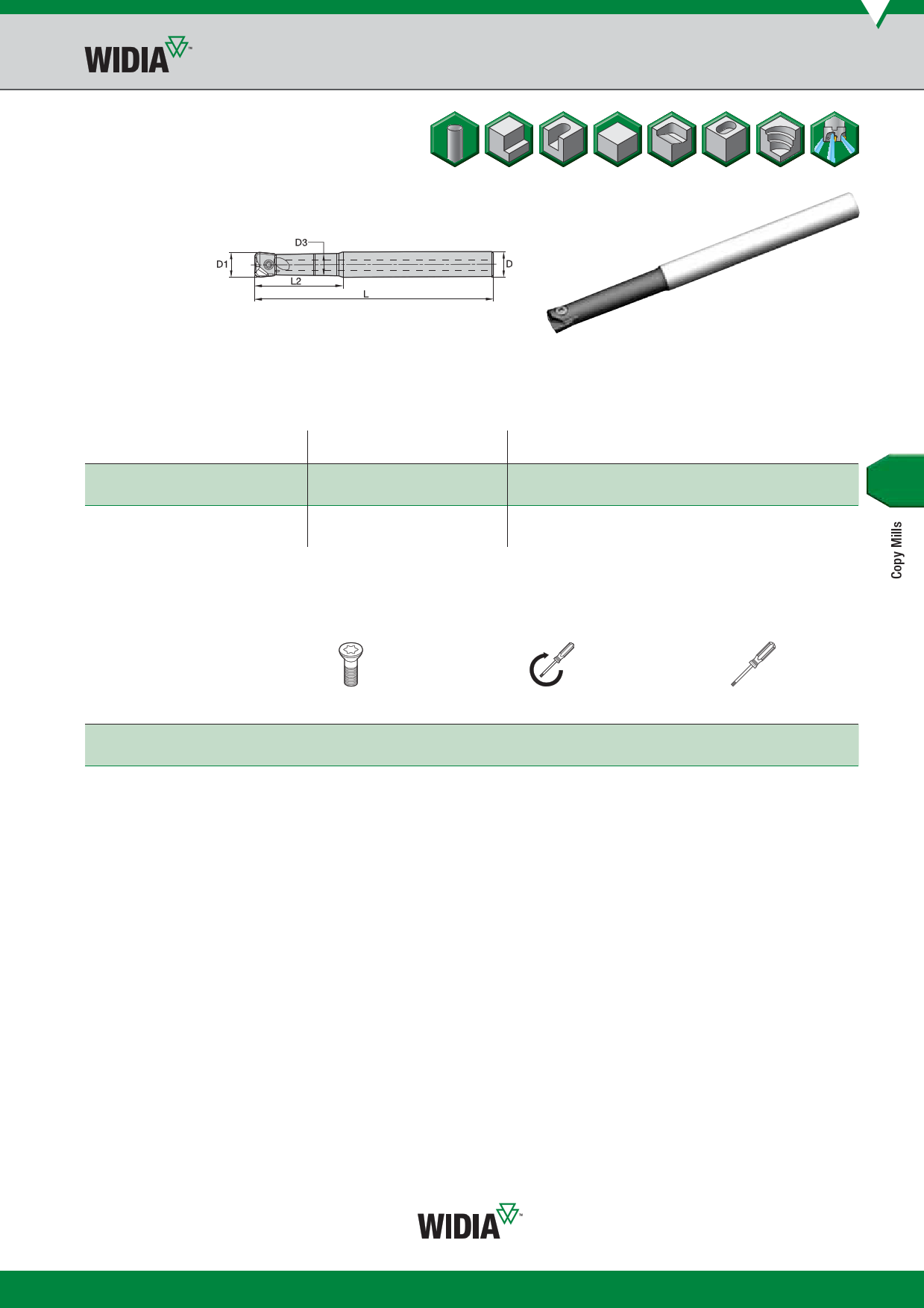

Copy Mills • M270™ Series
Toroidal Tool Bodies
Toroidal • Cylindrical Shanks
order number catalogue number D1 D D3 L L2 Z Z U
inserts
max RPM
coolant
supply
kg
3926514
M270TD010A10L120 10 10 9 120 45 1 2 M270TF10R..
57000
Yes 0,06
3926515
M270TD012A12L140 12 12 11 140 50 1 2 M270TF12R..
55000
Yes 0,09
3926516
M270TD016A16L160 16 16 14 160 57 1 2 M270TF16R..
53000
Yes 0,19
3926517
M270TD020A20L180 20 20 18 180 70 1 2 M270TF20R..
52000
Yes 0,35
NOTE: ZU = Effective teeth.
Z = number of pocket seats.
Spare Parts
insert
D1 screw
10 12748610500
12 12748610600
16 12748610700
20 12748610800
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
2,0
2,0
5,0
5,0
Torx
driver
12148788900
12148788900
12148099300
12148099300
