High-Performance Solid Carbide End Mills • VariMill™
Series 57NE • VariMill II™ ER • With Neck • Victory™ Grades
• Unequal flute spacing.
• Centre cutting.
• Optimised geometry for titanium
machining.
• Single tool for both roughing and finishing
operations requiring fewer setups.
• Standard items listed. Additional styles
and coatings made-to-order.

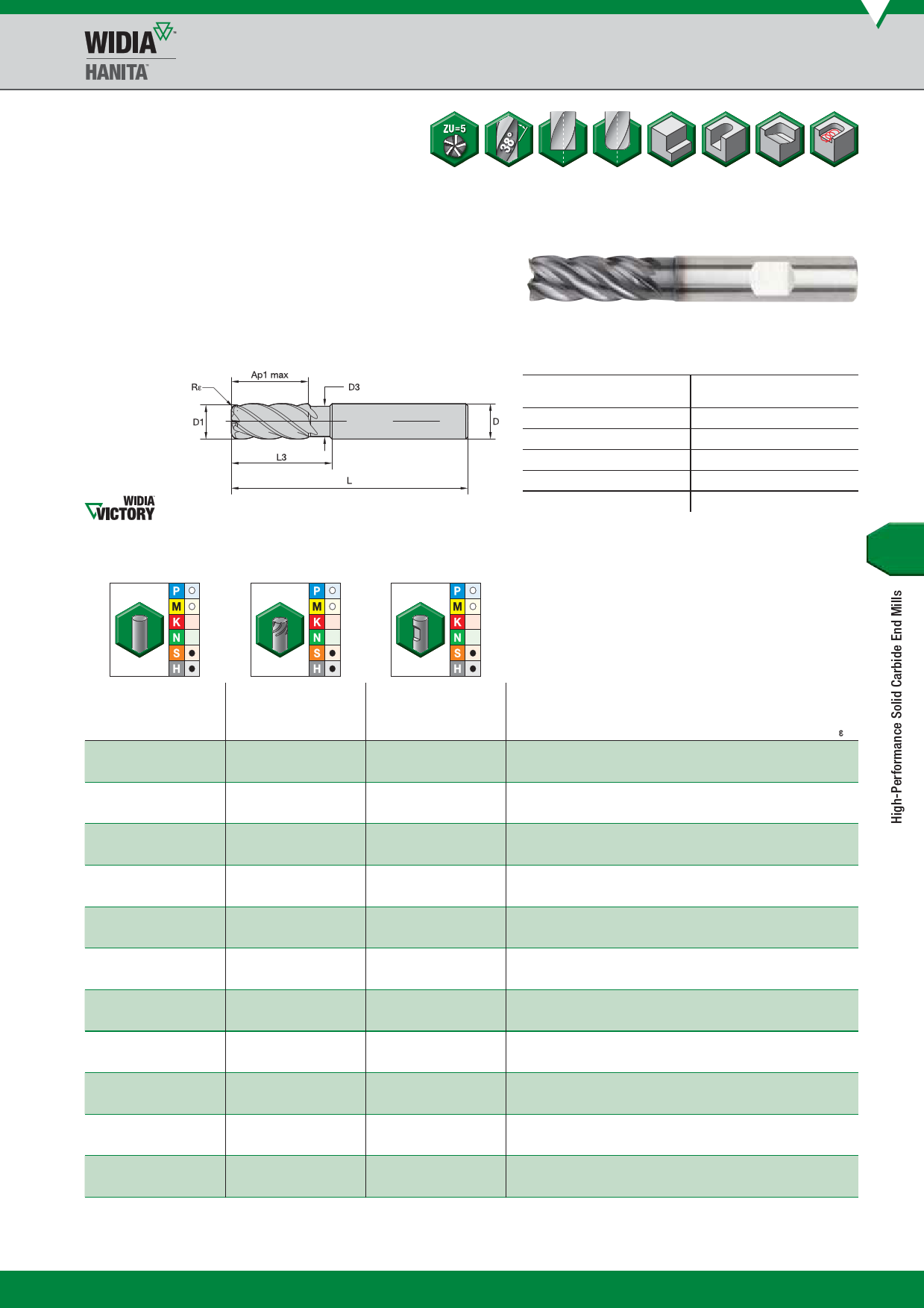

Series 57NE • VariMill II ER • With Neck • Victory Grades
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance e8
-0,014/-0,028
-0,020/-0,038
-0,025/-0,047
-0,032/-0,059
-0,040/-0,073
D
)3
> 3–6
> 6–10
> 10–18
> 18–30
tolerance h6
+/-
0/-0,006
0/-0,008
0/-0,009
0/-0,011
0/-0,013
first choice
alternate choice
WS15PE
WS15PE
WS15PE
AlTiN
AlTiN
AlTiN
length of cut
length
order # catalogue # order # catalogue # order # catalogue # D1 D
D3
Ap1 max
L3
L R
5599122 57NE10004T
—
—
10,0 10 9,40
22,00
30,00
76
—
5599123 57NE10024T
—
5599124 57NE10024W 10,0 10 9,40
22,00
30,00 76 0,50
5599125 57NE10034T
—
5599126 57NE10034W 10,0 10 9,40
22,00
30,00 76 1,00
5599127 57NE10054T
—
5599128 57NE10054W 10,0 10 9,40
22,00
30,00 76 2,00
—
5599129 57NE12005V
—
12,0 12 11,28
26,00
36,00
83
—
—
5599130 57NE12025V 5599131 57NE12025W 12,0 12 11,28
26,00
36,00 83 0,50
—
5599132 57NE12035V 5599133 57NE12035W 12,0 12 11,28
26,00
36,00 83 1,00
—
5599134 57NE12055V 5599135 57NE12055W 12,0 12 11,28
26,00
36,00 83 2,00
—
5599136 57NE16006V
—
16,0 16 15,04
32,00
48,00 100
—
—
5599137 57NE16026V 5599138 57NE16026W 16,0 16 15,04
32,00
48,00 100 0,50
—
5599139 57NE16036V 5599140 57NE16036W 16,0 16 15,04
32,00
48,00 100 1,00
—
5599141 57NE16056V 5599142 57NE16056W 16,0 16 15,04
32,00
48,00 100 2,00
—
5599143 57NE20007V
—
20,0 20 18,80
38,00
60,00 115
—
—
5599144 57NE20027V 5599145 57NE20027W 20,0 20 18,80
38,00
60,00 115 0,50
—
5599146 57NE20037V 5599147 57NE20037W 20,0 20 18,80
38,00
60,00 115 1,00
—
5599148 57NE20057V 5599149 57NE20057W 20,0 20 18,80
38,00
60,00 115 2,00
—
5599160 57NE20087V 5599161 57NE20087W 20,0 20 18,80
38,00
60,00 115 4,00
—
5599162 57NE25008V
—
25,0 25 23,50
45,00
75,00 135
—
—
5599163 57NE25028V 5599164 57NE25028W 25,0 25 23,50
45,00
75,00 135 0,50
—
5599165 57NE25038V 5599166 57NE25038W 25,0 25 23,50
45,00
75,00 135 1,00
—
5599167 57NE25058V 5599168 57NE25058W 25,0 25 23,50
45,00
75,00 135 2,00
—
5599169 57NE25088V 5599170 57NE25088W 25,0 25 23,50
45,00
75,00 135 4,00
