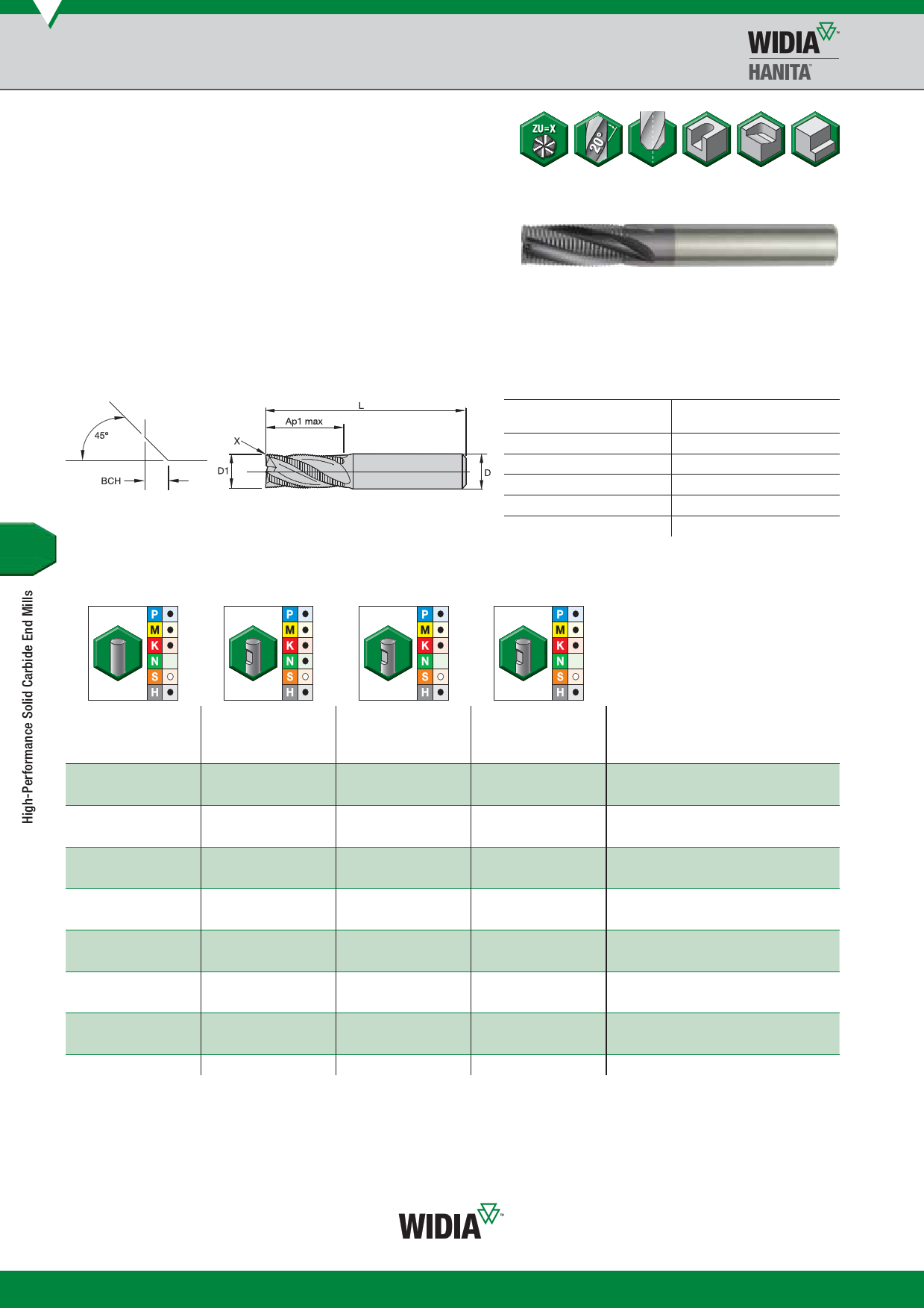

High-Performance Solid Carbide End Mills • Roughing
Series 4906
• Centre cutting.
• Fine pitch.
• LW = Multilayer.
• RW = Monolayer.
• Standard items listed. Additional
styles and coatings made-to-order.
Detail X
Series 4906
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance d11
-0,020/-0,080
-0,030/-0,105
-0,040/-0,130
-0,050/-0,160
-0,065/-0,195
D
)3
> 3–6
> 6–10
> 10–18
> 18–30
tolerance h6
+/-
0/-0,006
0/-0,008
0/-0,009
0/-0,011
0/-0,013
first choice
alternate choice
graTdieATlNiA-RlNT-RT
graTdIeCTNi-CCNW-CW
graTdieATlNiA-LlNW-LW
graTdieATlNiA-RlNW-RW
TiAlN
TiCN
TiAlN
TiAlN
length of cut length
order # catalogue # order # catalogue # order # catalogue # order # catalogue # D1 D Ap1 max
L BCH ZU
1657001 490604002RT 1656997 490604002CW 1657000 490604002LW 1657002 490604002RW 4,0 6
11,00
55 0,30 3
1657009 490605002RT 1657007 490605002CW 1657008 490605002LW 1657010 490605002RW 5,0 6
13,00
57 0,30 3
1657018 490606002RT 1657016 490606002CW 1657017 490606002LW 1657019 490606002RW 6,0 6
13,00
57 0,30 3
3133084 490607003RT 1657023 490607003CW 1657024 490607003LW 1657025 490607003RW 7,0 8
16,00
63 0,30 3
1657033 490608003RT 1657031 490608003CW 1657032 490608003LW 1657034 490608003RW 8,0 8
16,00
63 0,30 3
3133085 490609004RT 1657039 490609004CW 1657040 490609004LW 1657041 490609004RW 9,0 10 19,00
72 0,50 4
1657050 490610004RT 1657048 490610004CW 1657049 490610004LW 1657051 490610004RW 10,0 10 22,00
72 0,50 4
3133086 490611005RT 1657055 490611005CW 1968092 490611005LW 1657056 490611005RW 11,0 12 26,00
83 0,50 4
1657063 490612005RT 1657061 490612005CW 1657062 490612005LW 1657064 490612005RW 12,0 12 26,00
83 0,50 4
3133087 490613014RT 1657068 490613014CW 1968204 490613014LW 1657069 490613014RW 13,0 14 26,00
83 0,50 4
1657084 490614014RT 1570244 490614014CW 1657083 490614014LW 1657085 490614014RW 14,0 14 2600
83 0,50 4
1657096 490616006RT 1657094 490616006CW 1657095 490616006LW 1657097 490616006RW 16,0 16 32,00
92 0,50 4
1657104 490618018RT 1657102 490618018CW 1657103 490618018LW 1657105 490618018RW 18,0 18 32,00
92 0,50 4
1657112 490620007RT 1657110 490620007CW 1657111 490620007LW 1657113 490620007RW 20,0 20 38,00
104 0,50 4
1657120 490625008RT 1657118 490625008CW 1657119 490625008LW 1657121 490625008RW 25,0 25 45,00
121 0,50 5
O66
