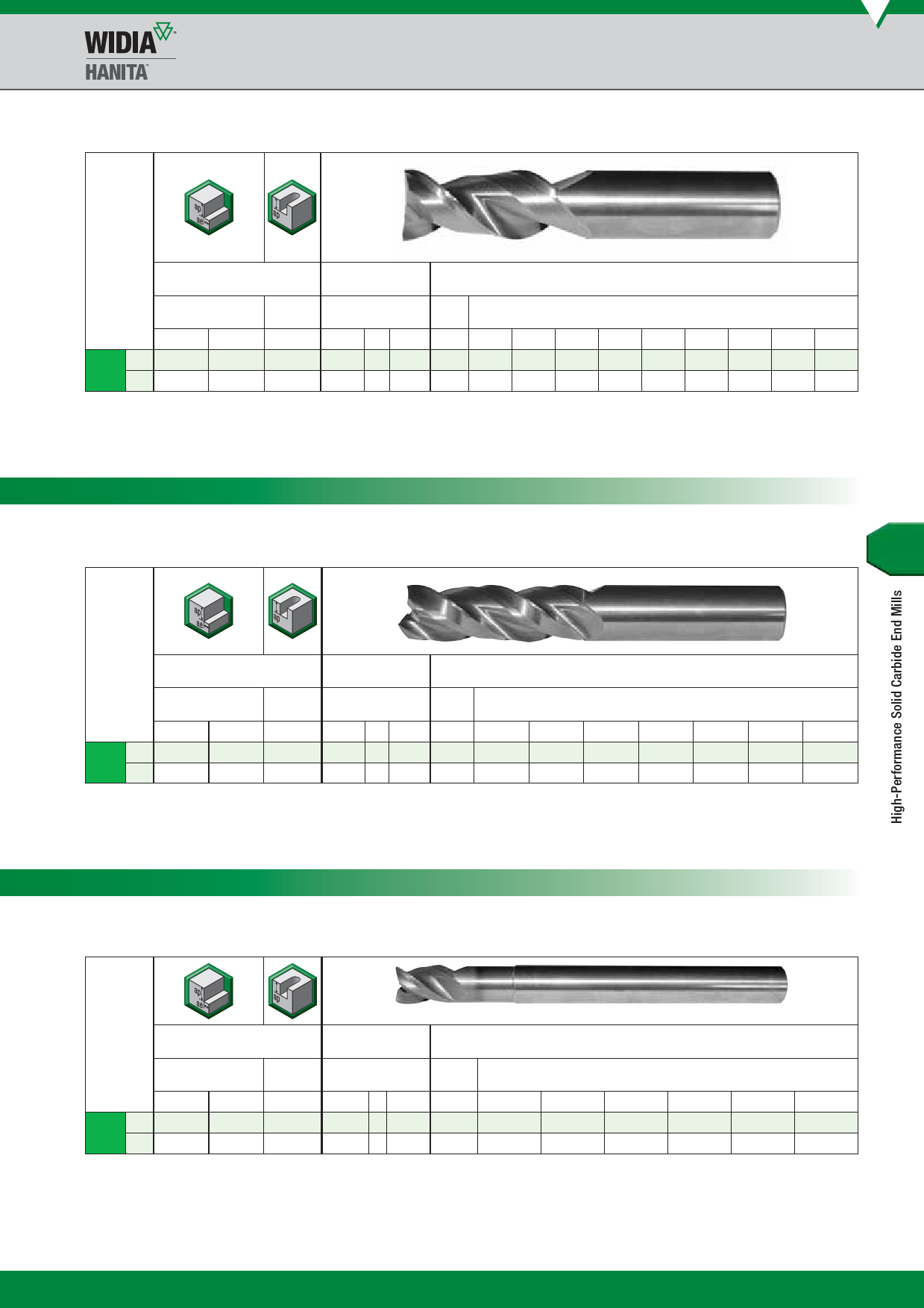

Series 5102 • AluSurf
для размещения заказа - zakaz@widiahanita.ru
High-Performance Solid Carbide End Mills • Aluminium
Application Data • Series 5102 • AluSurf™
For Side Milling (A)
and Slotting (B)
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
B
Cutting Speed — vc
m/min
D1 — Diameter
ap min
max mm 1,5 2,0 4,0 6,0 8,0 10,0 12,0 16,0 20,0
1 1,5 x D 0,5 x D 1 x D 500 – 2000 fz 0,014 0,018 0,036 0,054 0,072 0,090 0,108 0,144 0,180
N
2 1,5 x D 0,5 x D 1 x D 500 – 1500 fz 0,012 0,016 0,032 0,049 0,065 0,081 0,097 0,130 0,162
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5.
For better surface nish, reduce feed per tooth.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
Series 5103 • AluSurf
Application Data • Series 5103 • AluSurf™
For SideMilling (A)
and Slotting (B)
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
B
Cutting Speed — vc
m/min
D1 — Diameter
ap min
max mm
3,0
6,0
8,0 10,0 12,0 16,0
1 1,5 x D 0,5 x D 1 x D 500 – 2000 fz
N
2 1,5 x D 0,5 x D 1 x D 500 – 1500 fz
0,027
0,024
0,054
0,049
0,072
0,065
0,090
0,081
0,108
0,097
0,144
0,130
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5.
For better surface nish, reduce feed per tooth.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
20,0
0,180
0,162
Series 51N3 • AluSurf
Application Data • Series 51N3 • AluSurf™
For Side Milling (A)
and Slotting (B)
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
B
Cutting Speed — vc
m/min
ap min
max mm
6,0
D1 — Diameter
8,0 10,0 12,0 16,0 20,0
1 1 x D 0,5 x D 1 x D
N
2 1 x D 0,5 x D 1 x D
500 – 2000
500 – 1500
fz
fz
0,060
0,054
0,080
0,072
0,100
0,090
0,120
0,108
0,160
0,144
0,200
0,180
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5.
For better surface nish, reduce feed per tooth.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
