Solid Carbide Drills

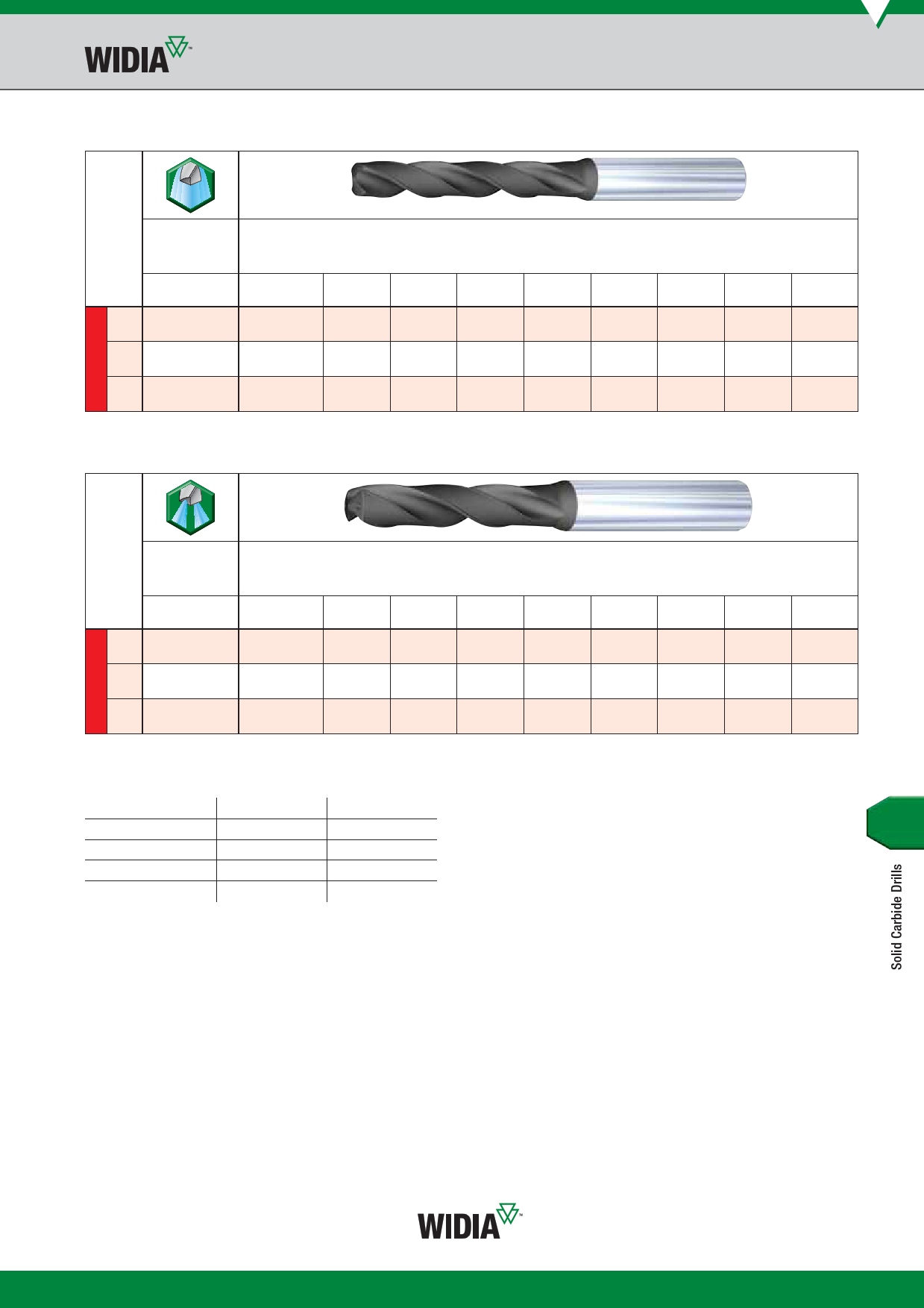

Application Data • TOP DRILL S™ • Cast Iron
TOP DRILL S • TDS212 • WK15PD™ • Flood Coolant • Metric
Material
Group
Cutting Speed
— vc
Range — m/min
Tool Diameter
min – max
(mm)
3,0
Recommended Feed Rate (f) by Diameter
4,0 6,0 8,0 10,0 12,0 16,0 20,0
15, 16 70 – 170
mm/r
0,16–0,31 0,20–0,38 0,23–0,44 0,25–0,49 0,31–0,60 0,38–0,74 0,31–0,60 0,38–0,74
K
17, 18,
19
80
– 140
mm/r
0,16–0,25 0,20–0,31 0,23–0,36 0,25–0,40 0,31–0,48 0,38–0,60 0,31–0,48 0,38–0,60
20 70 – 130
mm/r
0,12–0,25 0,14–0,30 0,17–0,35 0,19–0,40 0,24–0,48 0,30–0,60 0,24–0,48 0,30–0,60
TOP DRILL S • TDS411/TDS412/TDS413 • WK15PD • Through Coolant • Metric
Material
Group
Cutting Speed
— vc
Range — m/min
Tool Diameter
min – max
(mm)
3,0
Recommended Feed Rate (f) by Diameter
4,0 6,0 8,0 10,0 12,0 16,0 20,0
15, 16 80 – 190
mm/r
0,11–0,22 0,12–0,24 0,16–0,31 0,20–0,38 0,23–0,44 0,25–0,49 0,31–0,60 0,38–0,74
K
17, 18,
19
90
– 170
mm/r
0,12–0,16 0,13–0,19 0,16–0,25 0,20–0,31 0,23–0,36 0,25–0,40 0,31–0,48 0,38–0,60
20 80 – 150
mm/r
0,08–0,17 0,09–0,19 0,12–0,25 0,14–0,30 0,17–0,35 0,19–0,40 0,24–0,48 0,30–0,60
nominal size range
>3–6
>6–10
>10–18
>18–25,4
Metric
tolerance
D1 tolerance m7
0,004/0,016
0,006/0,021
0,007/0,025
0,008/0,029
D tolerance h6
0,000/-0,008
0,000/-0,009
0,000/-0,011
0,000/-0,013
