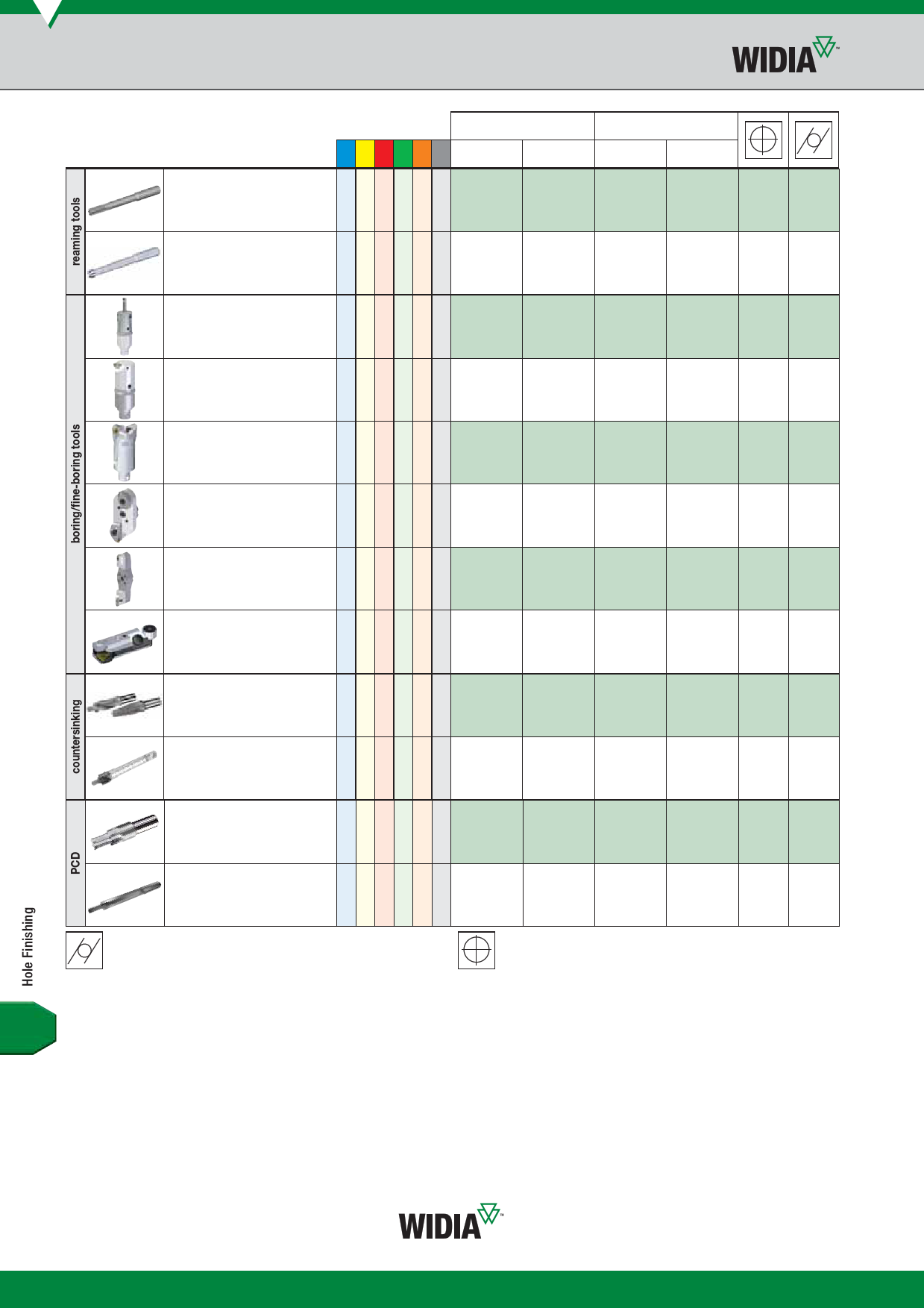

Hole Finishing
Tool Selection Guide
для размещения заказа - zakaz@widiahanita.ru
first choice
alternate choice
HSR™ — Solid Carbide
High-Speed Reamer
Carbide
PMKN S H
standard diameter
range
accuracy
engineered
solution diameter
range
accuracy
.196–.551"
5–14mm
IT7
.056–1.00"
1,4–25,4mm
IT6
>.39"
>10mm
.0004" .0003"
10 m 7 m
HSR — Carbide Tipped
High-Speed Reamer
Carbide/Cermet
.551–1.26"
14–32mm
IT7
.551–2.55"
14–65mm
IT6
.0004" .0003"
10 m 7 m
ROTAFLEX™ FBHBB
Fine-Boring
Carbide/Cermet/PCD/CBN
.236–.866"
6–22mm
IT7
—
—
.0002"
5 m
.0002–
.0004"
5–10 m
ROTAFLEX FBH
Fine-Boring
Carbide/Cermet/PCD/CBN
.866–4.25"
22–115mm
IT7
—
—
.0002"
5 m
.0002–
.0004"
5–10 m
ROTAFLEX TCHS
Roughing
Carbide/Cermet/PCD/CBN
.886–4.52"
22,5–115mm
IT7
—
—
.0004"
10 m
>.0008"
>20 m
ROTAFLEX Small Bridge Tools
Roughing
Carbide/Cermet/PCD/CBN
3.425–7.87"
87–200mm
IT7
—
—
.0004"
10 m
>.0008"
>20 m
ROTAFLEX Large Bridge Tools
Roughing
Carbide/Cermet/PCD/CBN
7.87–20.47"
200–520mm
IT7
—
—
.0004"
10 m
>.0008"
>20 m
Fine-Boring Cartridges
Fine-Boring
Carbide/Cermet/PCD/CBN
3.425–20.47"
87–520mm
IT7
—
—
.0002"
5 m
.0002–
.0004"
5–10 m
Countersinking
Round Tools
Steel Base
Port Cutters
Carbide/Cermet
Steel Base
PCD
Round Tools
Steel Base CBN
–
–
–
IT7
.0004" .0004"
10 m 10 m
for standard
ports
SAE, BSPP,
–
ISO
–
IT7
.0004" .0004"
10 m 10 m
–
–
.394–4.00"
10–100mm
IT6
.0004" .0004"
10 m 10 m
PCD
Round Tools
Carbide Base
Cylindricity
NOTE: Process- and application-dependent.
Highly dependent on the pre-machine hole accuracy.
Use of high-performance drilling/pre-machining tools
mandatory to reach values.
–
–
.197–1.00"
5–25mm
IT6
.0002" .0003"
5 m 7 m
Position
NOTE: Process- and application-dependent.
Highly dependent on the pre-machine hole accuracy.
Use of high-performance drilling/pre-machining tools
mandatory to reach values.
W4
