Toolholders

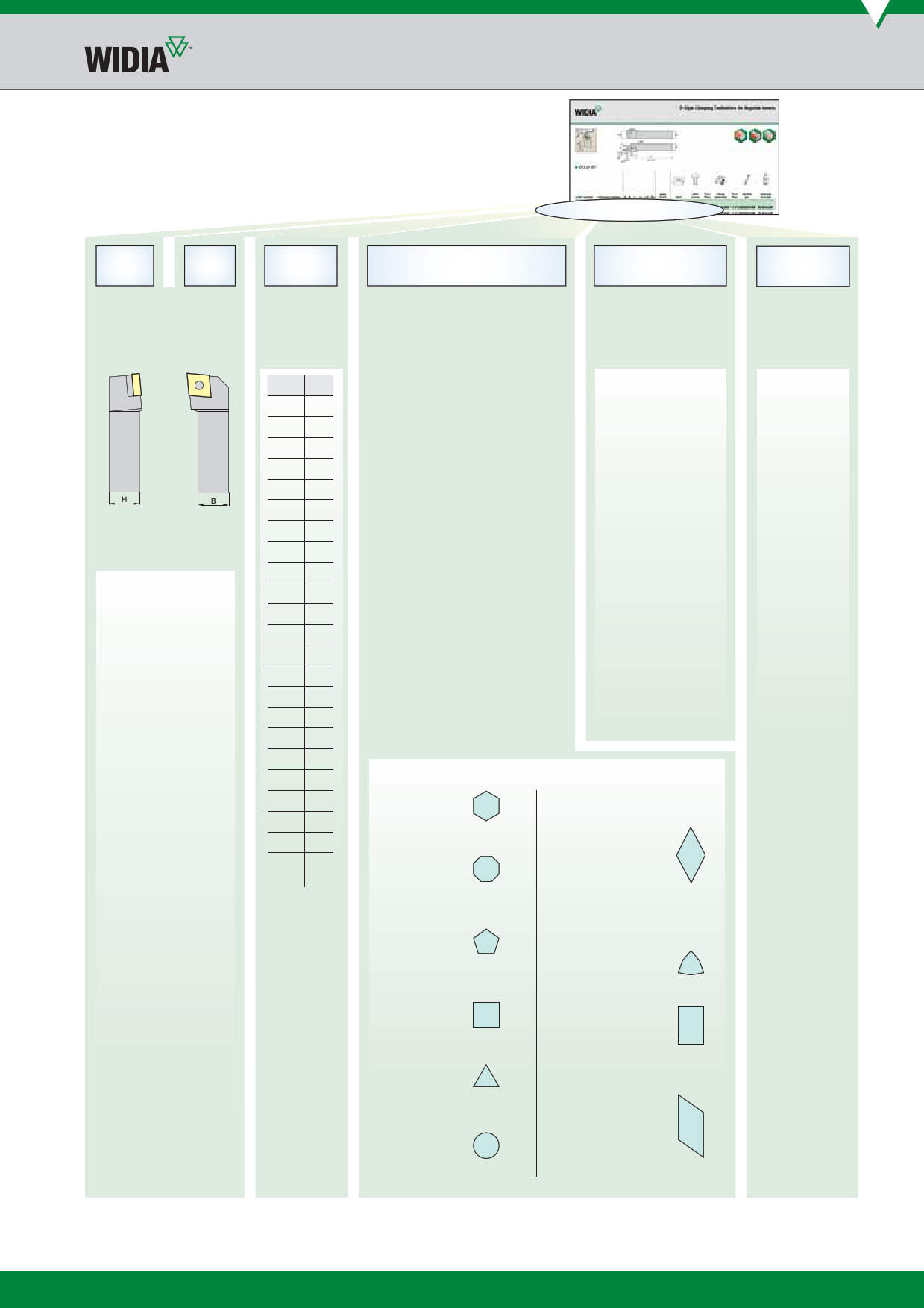

Catalogue Numbering System
By referencing this easy-to-use guide, you can
identify the correct product to meet your needs.
DCLNR2525M12KC04
25 25
Shank Dimensions
M
Tool Length
12
Insert Size
KC
Additional
Information
The seventh and eighth
position shall be a
significant two-digit
number that indicates
the holder cross section.
• If the dimension for the
width “B” or the height
“H” is represented by
a one-digit number, a
0 (zero) will be used in
front of it.
Example: 8,0mm = 08
L1 ISO
32 A
40 B
50 C
60 D
70 E
80 F
90 G
100 H
110 J
125 K
140 L
150 M
160 N
170 P
180 Q
200 R
250 S
300 T
350 U
400 V
450 W
500 Y
Special X
Design
KC =
D-Style Clamping
Hexagon
H 120°
Octagon
O 135°
Pentagon
P 108°
Square
S 90°
Triangular
T 60°
Round
R—
Cutting Edge Length L10
Rhomboid
C 80°
D 55°
E 75°
M 86°
V 35°
Trigon
80°
W with enlarged
corner angles
Rectangular
L 90°
Parallelogram
A 85°
B 82°
K 55°
zakaz@widiahanita.ru
www.widiahanita.ru
04
Insert Thickness
(optional)
04 = 4,76mm
06 = 6,35mm
C7
