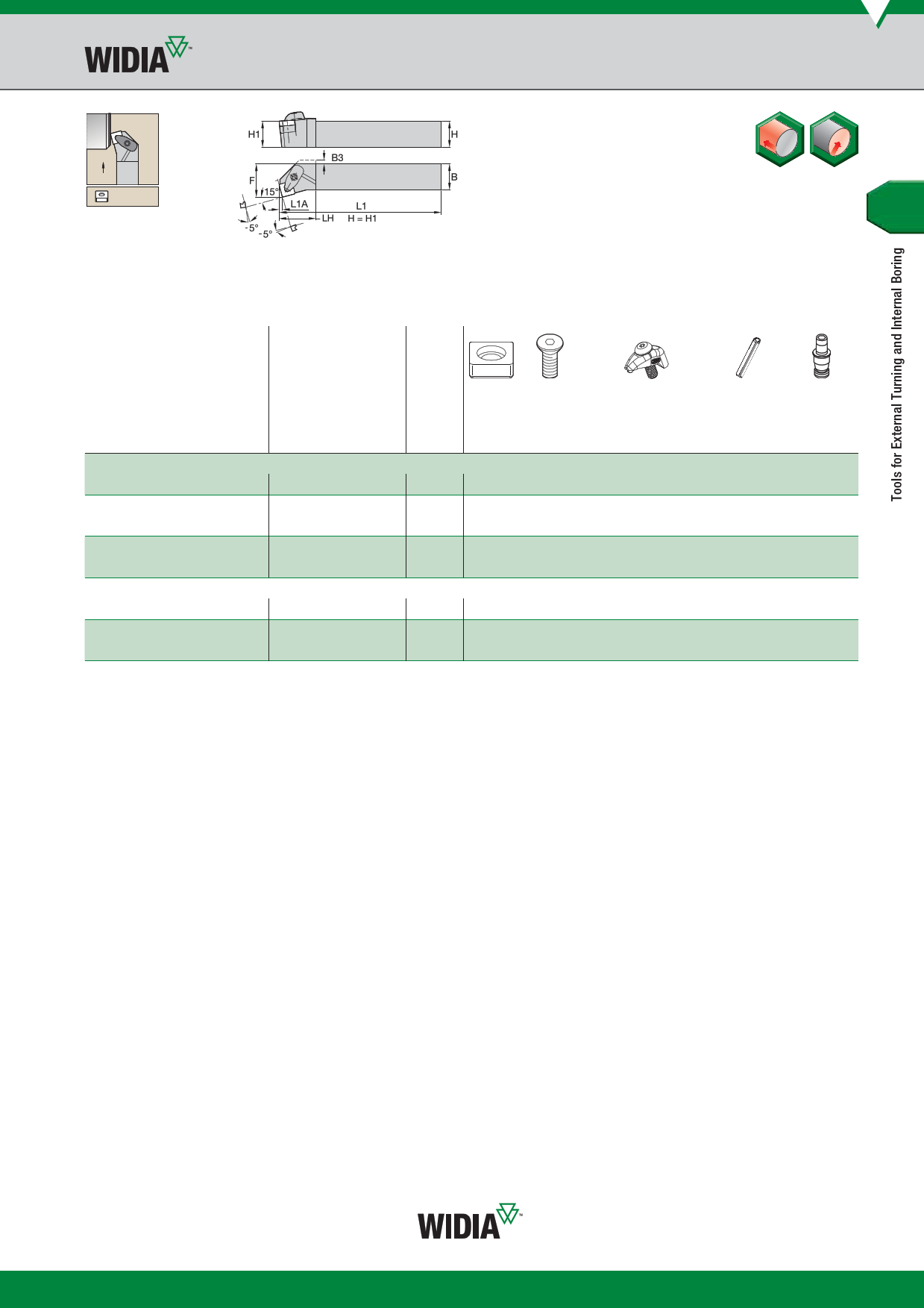

D-Style Clamping Toolholders for Negative Inserts
See pages B68–B80
for inserts.
DSKN 75°
gage
order number catalogue number H B F L1 LH L1A B3 insert
shim
shim Torx clamp Torx slotted
screw Plus assembly Plus
pin
optional
lock pin
right hand
5696685 DSKNR2020K12KC04 20 20 25,0 125 32,0 3,1 8,0 SN..120408 ISSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696686 DSKNR2525M12KC04 25 25 32,0 150 32,0 3,1 4,0 SN..120408 ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP
5696687 DSKNR3225P12KC04 32 25 32,0 170 32,0 3,1 — SN..120408 ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP
5696688 DSKNR3232P15KC06 32 32 40,0 170 32,0 3,8 — SN..150612 ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP
5696689 DSKNR3232P19KC06 32 32 40,0 170 38,0 4,6 — SN..190612 ISSN643 KMSP625IP 25 IP CM210R ASSY 25 IP SSP025016M KLM68L25IP
left hand
5696682 DSKNL2525M12KC04 25 25 32,0 150 32,0 3,1 4,0 SN..120408 ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP
5696683 DSKNL3225P12KC04 32 25 32,0 170 32,0 3,1 — SN..120408 ISSN443 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM46L15IP
5696684 DSKNL3232P15KC06 32 32 40,0 170 32,0 3,8 — SN..150612 ISSN543 KMSP515IP 15 IP CM209R ASSY 15 IP SSP025016M KLM58L15IP
