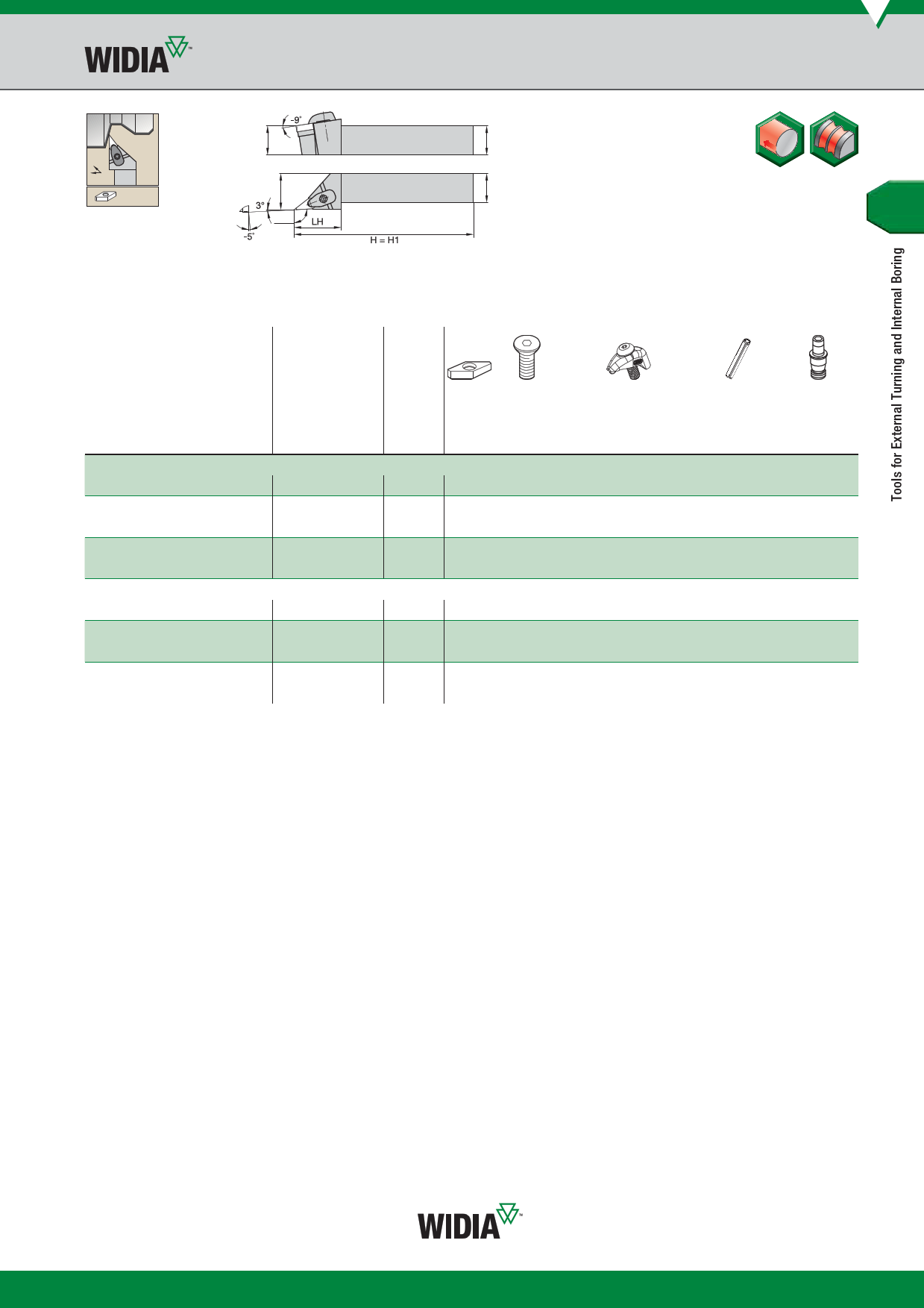

D-Style Clamping Toolholders for Negative Inserts
See pages B94–B99
for inserts.
DVJN 93°
H1
F
3°
93°
L1
H
B
gage
order number catalogue number H B F L1 LH insert
shim
shim Torx clamp Torx
screw Plus assembly Plus
slotted
pin
right hand
5696737
DVJNR2020K16KC04 20 20 25,0 125 46,0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP SSP025016M
5696738 DVJNR2525M16KC04 25 25 32,0 150 46,0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP SSP025016M
5696739 DVJNR2525M22KC04 25 25 32,0 150 55,0 VN..220408 IVSN432 KMSP415IP 15 IP CM235R ASSY 15 IP SSP025016M
5696740 DVJNR3225P16KC04 32 25 32,0 170 46,0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP SSP025016M
5696741 DVJNR3225P22KC04 32 25 32,0 170 55,0 VN..220408 IVSN432 KMSP415IP 15 IP CM235R ASSY 15 IP SSP025016M
left hand
5696732
DVJNL2020K16KC04 20 20 25,0 125 46,0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP SSP025016M
5696733 DVJNL2525M16KC04 25 25 32,0 150 46,0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP SSP025016M
5696734 DVJNL2525M22KC04 25 25 32,0 150 55,0 VN..220408 IVSN432 KMSP415IP 15 IP CM235R ASSY 15 IP SSP025016M
5696735 DVJNL3225P16KC04 32 25 32,0 170 46,0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY 15 IP SSP025016M
5696736 DVJNL3225P22KC04 32 25 32,0 170 55,0 VN..220408 IVSN432 KMSP415IP 15 IP CM235R ASSY 15 IP SSP025016M
optional
lock pin
KLM34L9IP
KLM34L9IP
KLM4615IP
KLM34L9IP
KLM4615IP
KLM34L9IP
KLM34L9IP
KLM4615IP
KLM34L9IP
KLM4615IP
