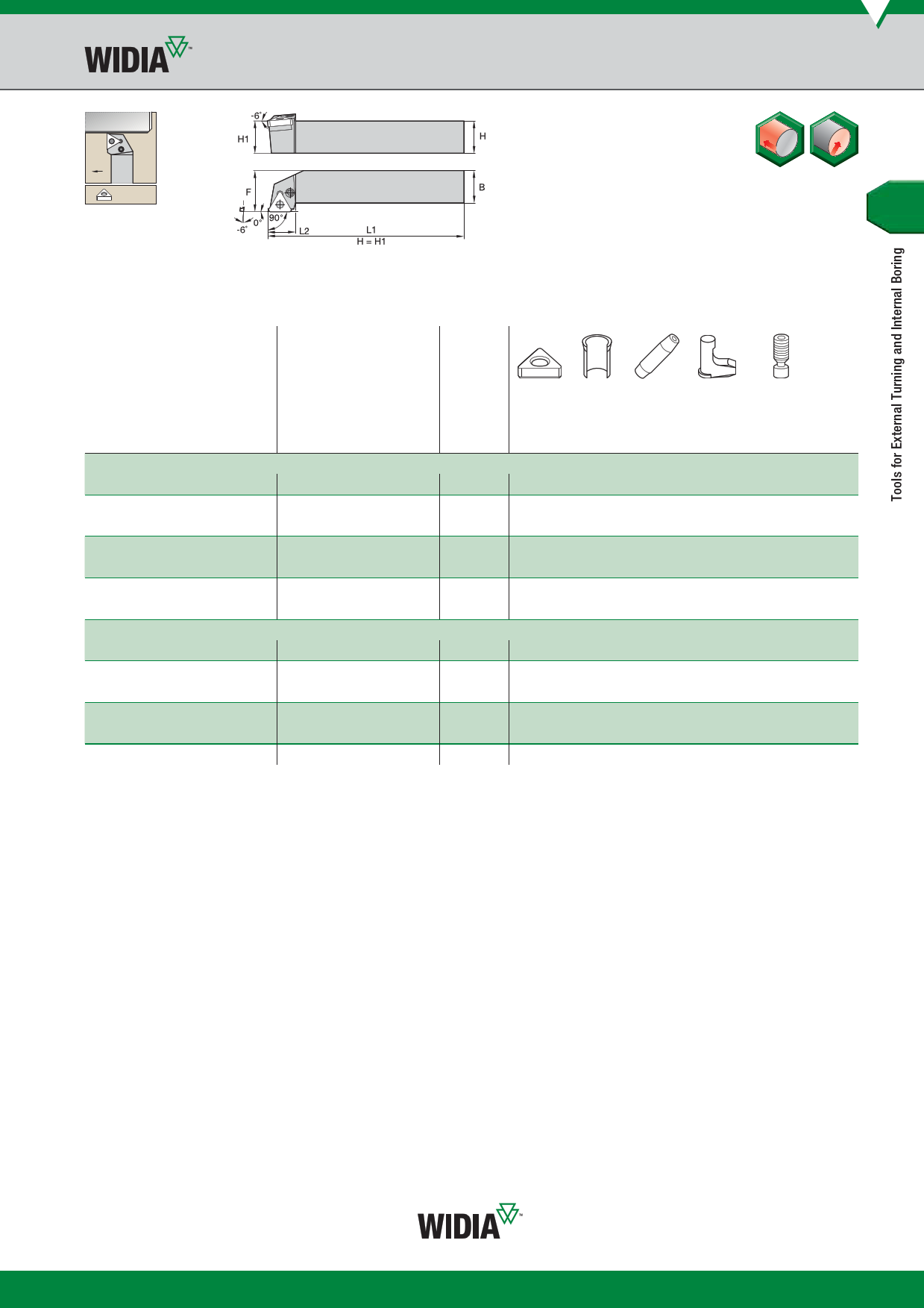

P-Style Clamping Toolholders for Negative Inserts
See pages B81–B93
for inserts.
PTGN 90°
order number catalogue number H B F L1 L2
gage
insert
right hand
3879385
PTGNR1616H16 16 16 20,0 100 20,0 TN..160408
3879389
PTGNR2020K16 20 20 25,0 125 20,0 TN..160408
3879390
PTGNR2525M16 25 25 32,0 150 20,0 TN..160408
3879387
PTGNR2525M22 25 25 32,0 150 26,0 TN..220408
3879846
PTGNR3225P22 32 25 32,0 170 28,0 TN..220408
3879391
PTGNR3232P22 32 32 40,0 170 26,0 TN..220408
3900163
PTGNR4040T27 40 40 50,0 300 31,0 TN..270612
left hand
3879383
PTGNL1616H16 16 16 20,0 100 20,0 TN..160408
3879384
PTGNL2020K16 20 20 25,0 125 20,0 TN..160408
3879388
PTGNL2525M16 25 25 32,0 150 20,0 TN..160408
3879386
PTGNL2525M22 25 25 32,0 150 26,0 TN..220408
3879392
PTGNL232P22 32 32 40,0 170 26,0 TN..220408
3900162
PTGNL4040T27 40 40 50,0 300 31,0 TN..270612
shim
512.013
512.013
512.013
512.023
512.023
512.023
512.031
512.013
512.013
512.013
512.023
512.023
512.031
shim
pin
513.018
513.018
513.018
513.023
513.023
513.023
513.025
513.018
513.018
513.018
513.023
513.023
513.025
punch
pin
515.018
515.018
515.018
515.018
515.018
515.018
515.022
515.018
515.018
515.018
515.018
515.018
515.022
lever
511.018
511.018
511.018
511.023
511.023
511.023
511.028
511.018
511.018
511.018
511.023
511.023
511.028
lever
screw
514.118
514.118
514.118
514.123
514.123
514.123
514.128
514.118
514.118
514.118
514.123
514.123
514.128
Torx
Plus
10 IP
10 IP
10 IP
15 IP
15 IP
15 IP
15 IP
10 IP
10 IP
10 IP
15 IP
15 IP
15 IP
