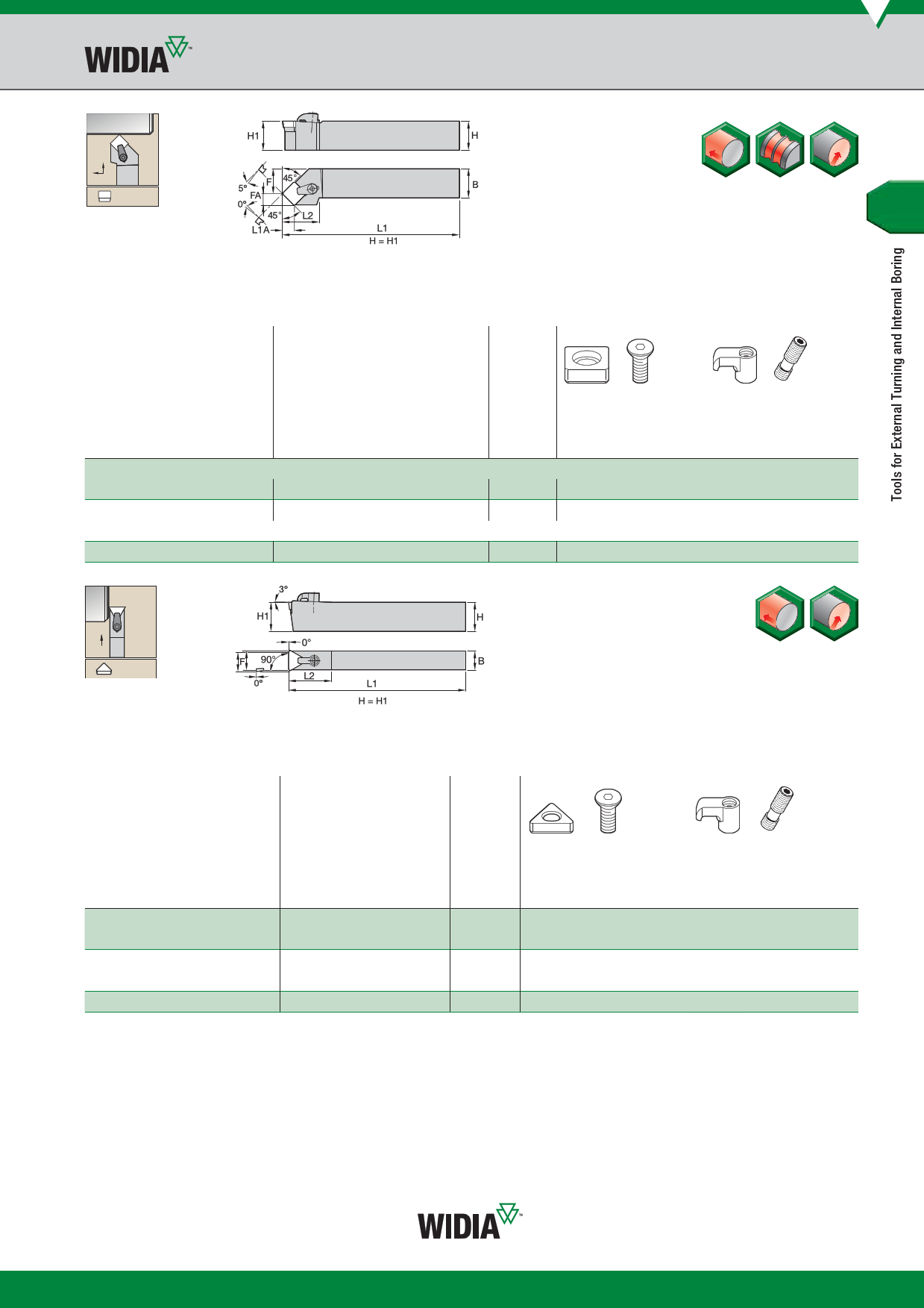

C-Style Clamping Toolholders for Positive Inserts
See pages B186–B191 and
B211–B212 for inserts.
CSSP 45°
order number catalogue number H B F L1 L2 FA L1A
gage
insert
right hand
3870074
3870075
CSSPR2020K12
CSSPR2525M12
20 20 25,0 125 32,0 8,7 8,3 SP..120308
25 25 32,0 150 32,0 8,7 8,3 SP..120308
left hand
3870073
CSSPL2525M12 25 25 32,0 150 32,0 8,7 8,3 SP..120308
shim
SM840
SM840
SM840
shim
screw hex
clamp
MS111 2 mm CKM10
MS111 2 mm CKM9
MS111 2 mm CKM9
clamp
screw hex
STCM8 4 mm
STCM4 4 mm
STCM4 4 mm
See pages B192–B194 and
B212–B216 for inserts.
CTCP 90°
order number catalogue number H B F L1 L2
gage
insert
3870080
CTCPN4018R22 40 18 19,2 200 41,0 TP..220408
3870076
CTCPN2510M11 25 10 10,0 150 26,0 TP..110304
3870077
CTCPN2514M16 25 14 14,4 150 28,0 TP..160308
3870078
CTCPN2518M22 25 18 19,2 150 41,0 TP..220408
3870079
CTCPN2520M22 25 20 20,2 150 41,0 TP..220408
shim
SM837
SM819
SM841
SM837
SM837
shim
screw
MS125
MS960
MS111
MS125
MS125
hex
2.5 mm
—
2 mm
2.5 mm
2.5 mm
clamp
CKM13
CKM7
CKM13
CKM13
CKM13
clamp
screw
STCM4
STCM5
STCM4
STCM4
STCM4
hex
4 mm
2.5 mm
4 mm
4 mm
4 mm
