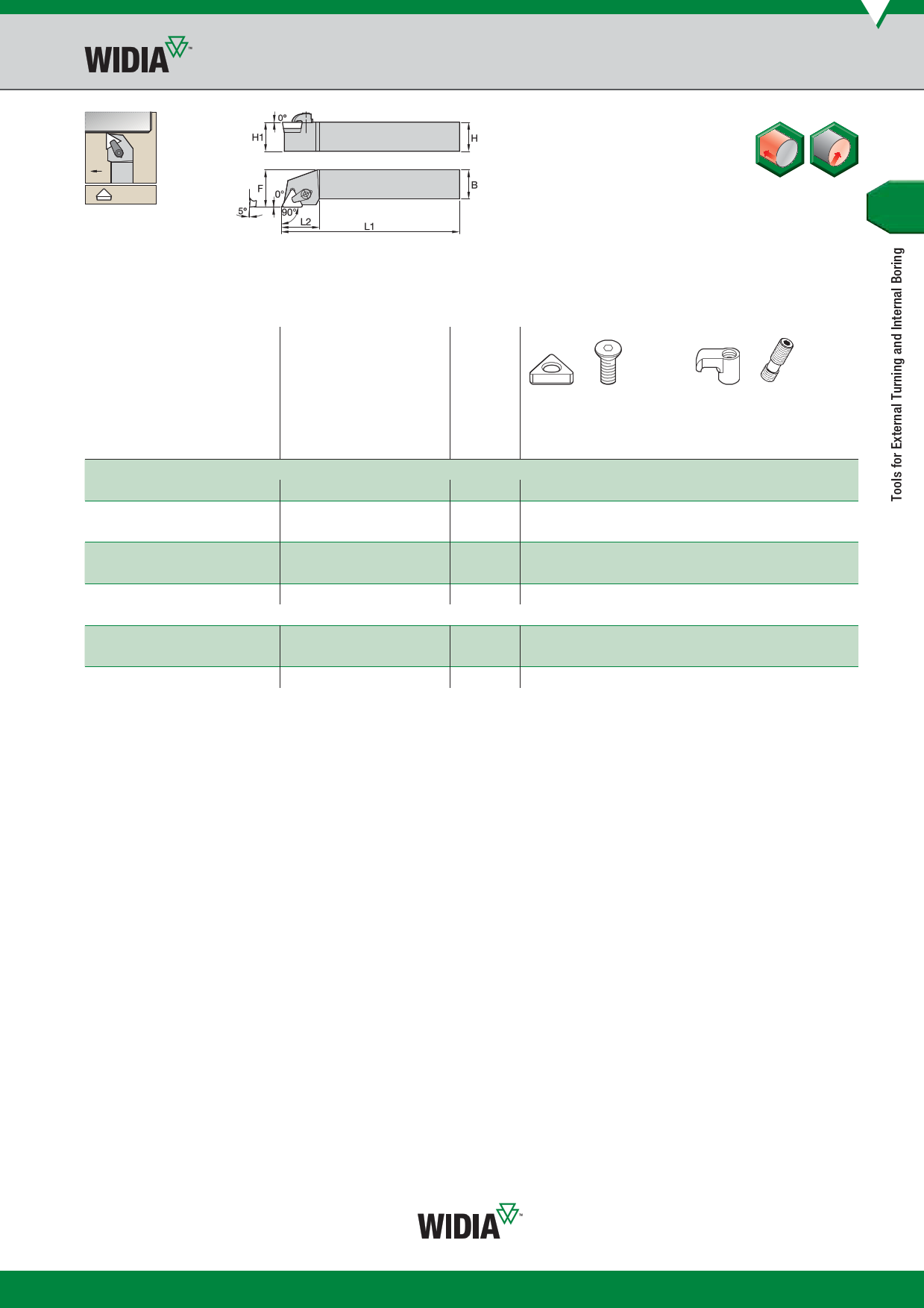

C-Style Clamping Toolholders for Positive Inserts
See pages B192–B194 and
B212–B216 for inserts.
CTGP 90°
order number catalogue number H B F L1 L2
gage
insert
right hand
3870092
CTGPR1212F11 12 12 16,0 80 20,0 TP..110304
3870103
CTGPR1616H11 16 16 20,0 100 20,0 TP..110304
3870104
CTGPR2020K11 20 20 25,0 125 20,0 TP..110304
3870105
CTGPR2020K16 20 20 25,0 125 26,0 TP..160308
3870106
CTGPR2525M16 25 25 32,0 150 26,0 TP..160308
3870107
CTGPR2525M22 25 25 32,0 150 30,0 TP..220408
left hand
3870089
CTGPL1212F11 12 12 16,0 80 20,0 TP..110304
3870090
CTGPL2020K16 20 20 25,0 125 26,0 TP..160308
3870091
CTGPL2525M16 25 25 32,0 150 26,0 TP..160308
shim
SM819
SM819
SM819
SM841
SM841
SM837
SM819
SM841
SM841
shim
screw
hex
MS960
MS960
MS960
MS111
MS111
MS125
—
—
—
2 mm
2 mm
2.5 mm
MS960
MS111
MS111
—
2 mm
2 mm
clamp
CKM19
CKM19
CKM19
CKM10
CKM9
CKM9
CKM19
CKM10
CKM9
clamp
screw
hex
STCM9
STCM9
STCM9
STCM8
STCM4
STCM4
2.5 mm
2.5 mm
2.5 mm
4 mm
4 mm
4 mm
STCM9
STCM8
STCM4
2.5 mm
4 mm
4 mm
