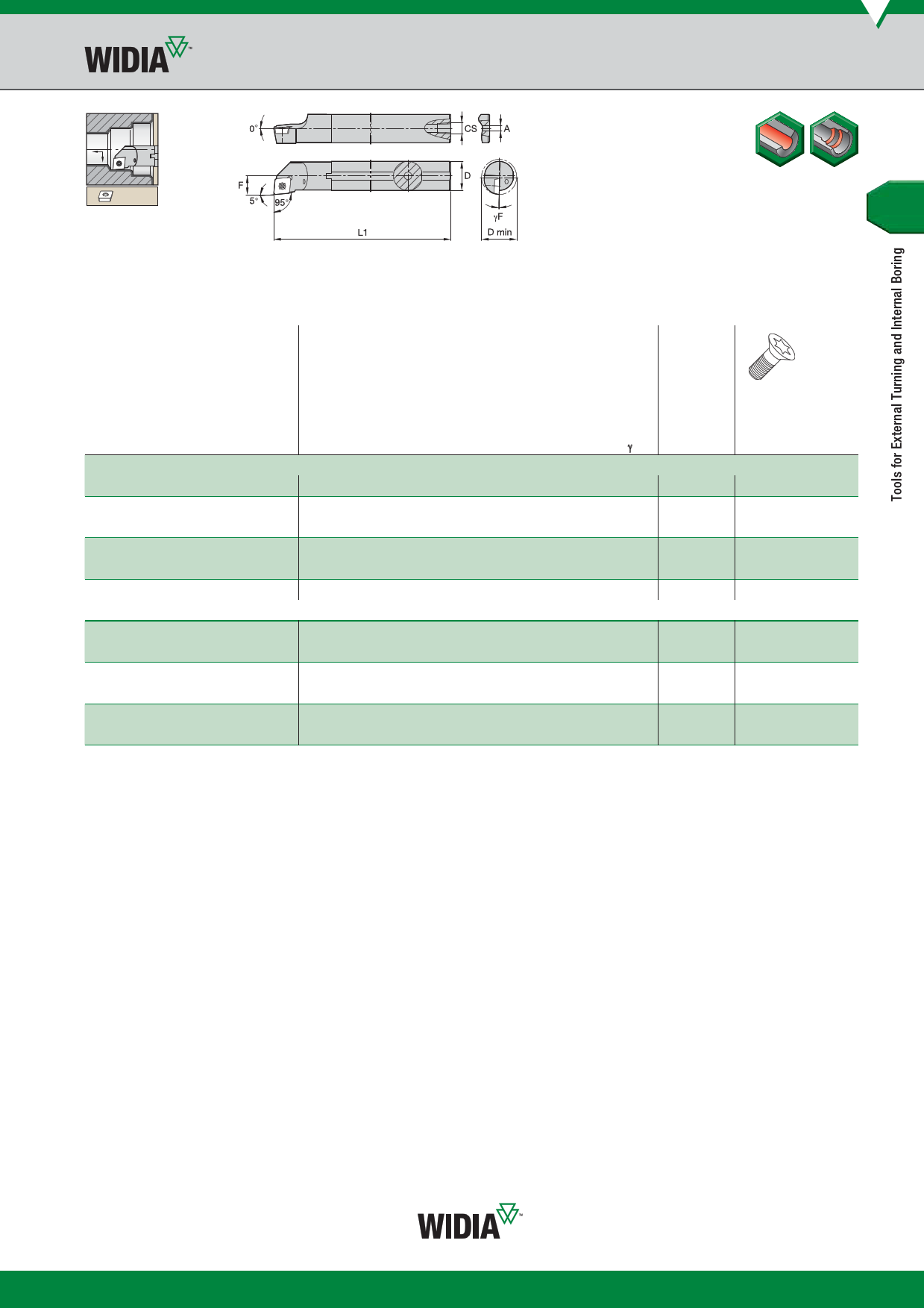

S-Style Clamping Boring Bars for Positive Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B30–B46
for inserts.
A-SCLP 95°
order number catalogue number D D min
F
L1 A
gage
insert
CS
aF° insert
screw
right hand
5077640
A08JSCLPR06
8 11,0 6,0 110 2,4
—
-6.0 CP..0602..
MS1939
5077645
A10KSCLPR06
10 13,0
7,0 125 3,2
—
-4.0 CP..0602..
MS1939
5077681
A12MSCLPR06
12 16,0
9,0 150 4,0
—
-3.0 CP..0602..
MS1153
5077694
A16RSCLPR06
16 20,0 11,0 200 — 1/8 - 27 NPT 5.0 CC..0602.. MS1153
5077695
A16RSCLPR09
16 20,0 11,0 200 4,0 1/8 - 27 NPT -4.0 CP..09T308 MS1155
5077722
A20SSCLPR09
20 25,0 13,0 250 — 1/8 - 27 NPT -2.0 CP..09T3.. MS1155
left hand
5077619
A08JSCLPL06
8 11,0 6,0 110 2,4
—
-6.0 CP..0602..
MS1939
5077644
A10KSCLPL06
10 13,0
7,0 125 3,2
—
-4.0 CP..0602..
MS1939
5077680
A12MSCLPL06
12 16,0
9,0 150 4,0
—
-3.0 CP..0602..
MS1153
5077688
A16RSCLPL06
16 20,0 11,0 200 — 1/8 - 27 NPT -5.0 CC..0602.. MS1153
5077692
A16RSCLPL09
16 20,0 11,0 200 — 1/8 - 27 NPT -4.0 CP..09T3.. MS1155
5077721
A20SSCLPL09
20 25,0 13,0 250 — 1/8 - 27 NPT -2.0 CP..09T3.. MS1155
Torx
T7
T7
T7
T7
T15
T15
T7
T7
T7
T7
T15
T15
