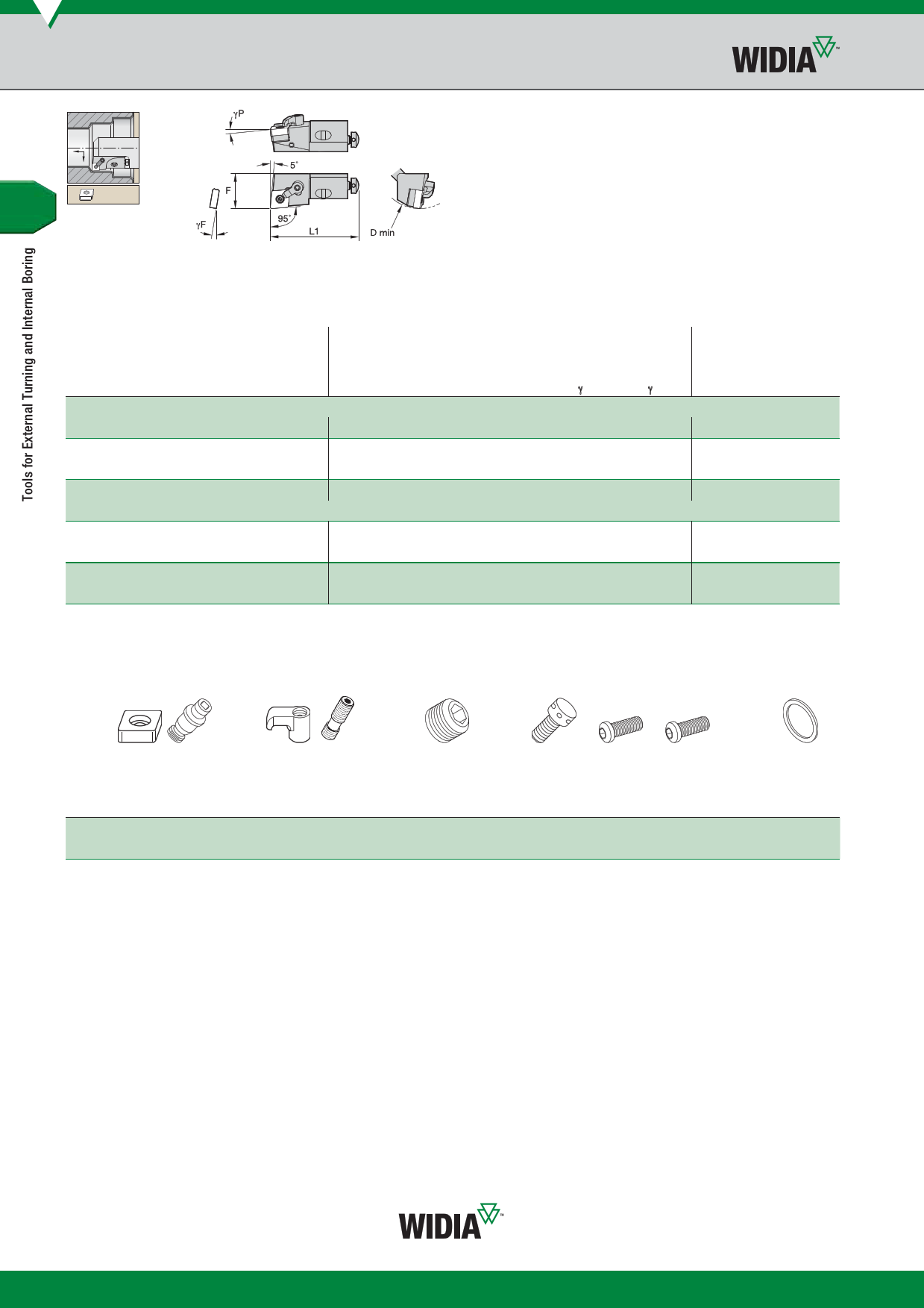

M-Style Clamping Cartridges for Negative Inserts
See pages B30–B46
for inserts.
MCLN 95°
order number
catalogue number
D min
F
L1 aF° aP°
gage
insert
right hand
3870410
MCLNR12CA12
50 20,0 55 -9.0 -5.0 CN..120408/CN..432
3870409
MCLNR16CA12
60 25,0 63 -9.0 -5.0 CN..120408/CN..432
3870408
MCLNR20CA12
70 25,0 70 -9.0 -5.0 CN..120408/CN..432
3870407
MCLNR25CA19
100 32,0 100 -9.0 -5.0 CN..190612/CN..643
left hand
3870414
MCLNL12CA12
50 20,0 55 -9.0 -5.0 CN..120408/CN..432
3870413
MCLNL16CA12
60 25,0 63 -9.0 -5.0 CN..120408/CN..432
3870412
MCLNL20CA12
70 25,0 70 -9.0 -5.0 CN..120408/CN..432
3870411
MCLNL25CA19
100 32,0 100 -9.0 -50 CN..190612/CN..643
Spare Parts
D min shim
lock
pin
clamp
hex clamp screw hex
50 — KLM43 2 mm CKM34 STCM38 2 mm
60 ICSN432 KLM46S 2.5 mm CKM34 STCM9 2.5 mm
70 ICSN432 KLM46 2.5 mm CKM34 STCM9 2.5 mm
100 ICSN633 KLM68 4 mm CKM35 STCM8 4 mm
radial
axial
adjusting
adjusting
screw hex screw
KUAM22 2 mm KUAM31
KUAM25 2.5 mm KUAM32
KUAM25 2.5 mm KUAM32
KUAM27 4 mm KUAM32
mounting
screw
191.406
191.407
191.407
—
holding
screw
—
—
—
MS364
hex washer
4 mm CSWM 060 050
5 mm CSWM 080 050
5 mm CSWM 080 050
8 mm CSWM 100 080
C94
