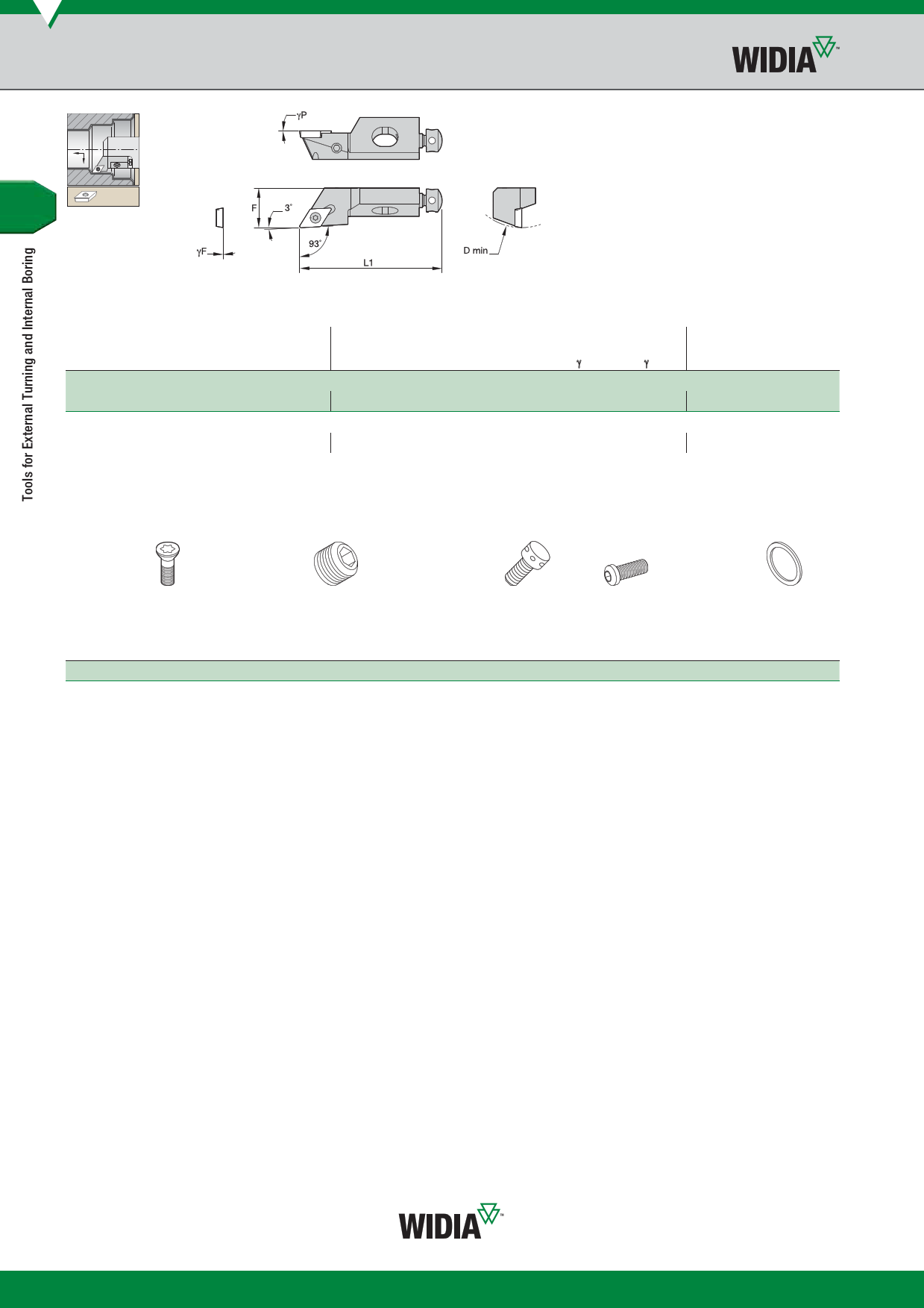

S-Style Screw Clamp Cartridges for Positive Inserts
See pages B47–B64
for inserts.
SDJP 93°
order number
catalogue number
D min
F
L1 aF° aP°
gage
insert
right hand
3871247
SDJPR10CA07
40 14,0 50 0.0 0.0 DP..070204/DP..2151
left hand
3871248
SDJPL10CA07
40 14,0 50 0.0 0.0 DP..070204/DP..2151
Spare Parts
D min
40
insert
screw
MS1153
Torx
T7
radial
adjusting
screw
KUAM28
hex
2 mm
axial
adjusting
screw
KUAM30
mounting
screw
191.405
hex
4 mm
washer
CSWM 060 050
C118
