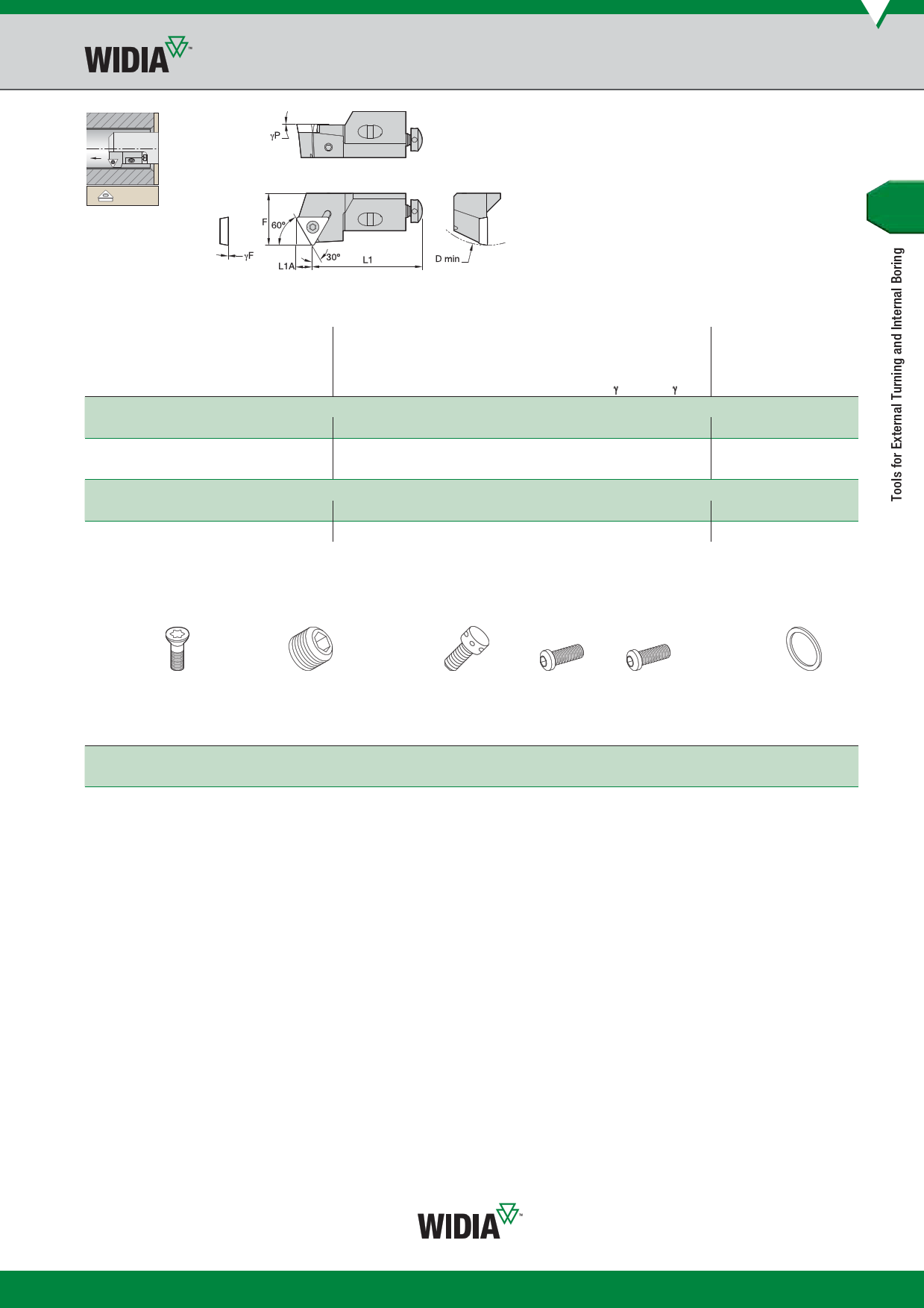

S-Style Screw Clamp Cartridges for Positive Inserts
See pages B99–B105
for inserts.
STWP 60°
order number
catalogue number
D min
F
L1 L1A aF° aP°
gage
insert
right hand
3870364
STWPR08CA09
25 10,0 28 4,3 0.0 0.0 TP..090204/TP..18151
3870363
STWPR10CA11
40 14,0 44 5,0 0.0 0.0 TP..110204/TP..2151
3870252
STWPR12CA16
50 20,0 47 7,2 0.0 0.0 TP..16T308/TP..3252
left hand
3870366
STWPL10CA11
40 14,0 44 5,0 0.0 0.0 TP..110204/TP..2151
3870365
STWPL12CA16
50 20,0 47 7,2 0.0 0.0 TP..16T308/TP..3252
Spare Parts
D min
25
40
50
insert
screw
MS1152
MS1153/span>
MS1155
Torx
T7
T7
T15
radial
adjusting
screw
KUAM34
KUAM28
KUAM23
hex
1.5 mm
2 mm
2.5 mm
axial
adjusting
screw
KUAM20
KUAM30
KUAM31
mounting
screw
—
191.405
191.406
holding
screw
MS2175
—
—
hex
2.5 mm
4 mm
4 mm
washer
CSWM 040 050
CSWM 060 050
CSWM 060 050
