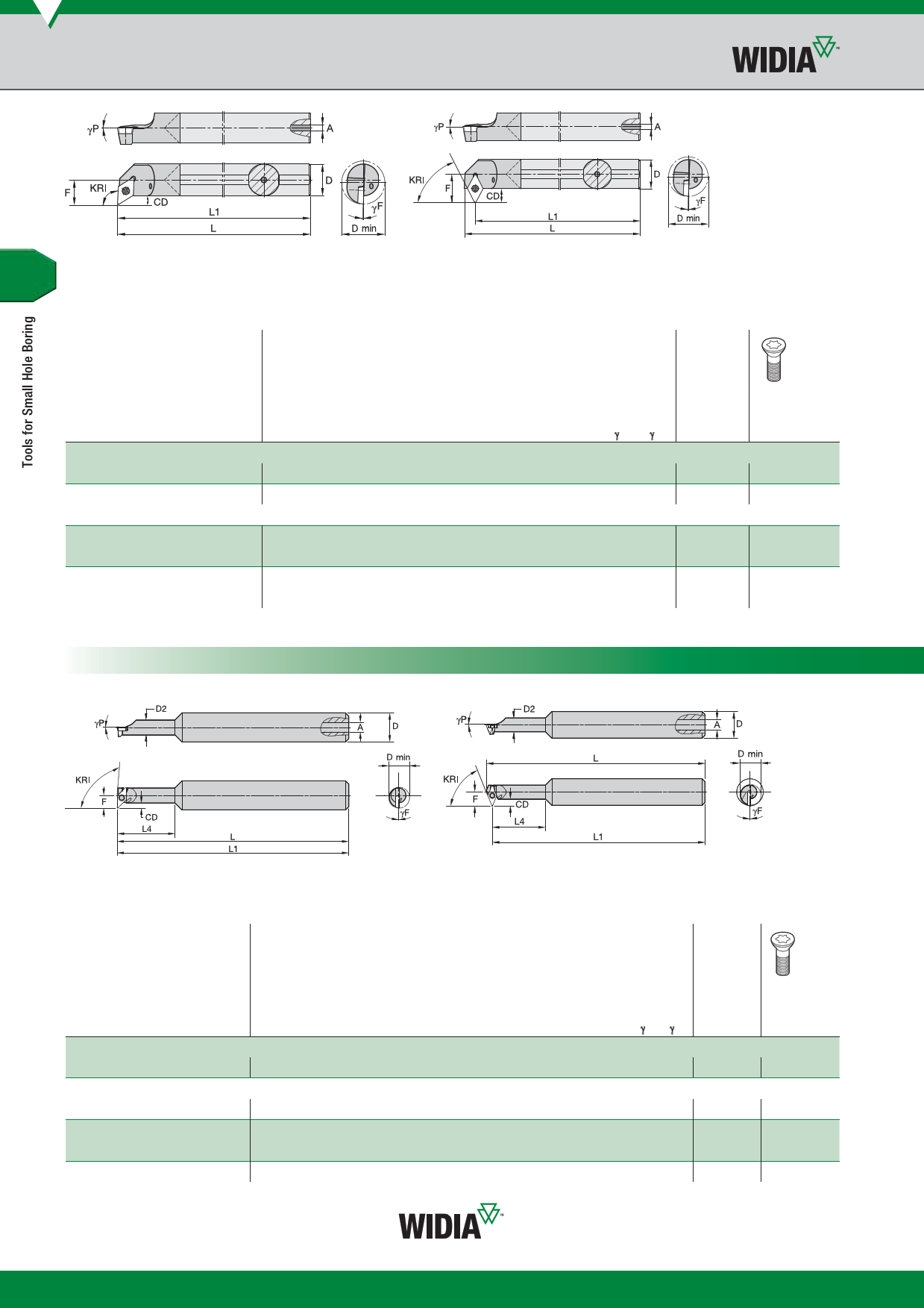

Small Hole Boring Bars for Proling
Clamping System S • Carbide
NOTE: KRI shown as 95°.
CCPM
NOTE: KRI shown as 67,5°.
order number catalogue number KRI D D min F CD
L
gage
insert
L1
A aF° aP°
insert
screw Torx
right hand
2831010
CCPM6152225R 67.5 6,00 10,16 6,60 3,51 154,61 152,40 1,19 0.0° 0.0° GP..050102 CT15 T6
2831020
CCPM61525R
95.0 6,00 9,14 5,59 2,49 152,40 152,40 1,19 0.0° 0.0° GP..050102 CT15 T6
left hand
2831004
CCPM6152225L 67.5 6,00 10,15 6,60 3,51 152,61 152,40 1,19 0.0° 0.0° GP..050102 CT15 T6
2830980
CCPM8152225L 67.5 8,00 11,38 7,01 2,92 155,96 152,40 2,36 0.0° 0.0° GP..050102 CT15 T6
3897899
CCPM61525L
95.0 6,00 9,14 5,59 2,49 152,40 152,40 1,19 0.0° 0.0° GP..050102 CT15 T6
3896022
CCPM81525L
95.0 8,00 10,74 6,38 2,28 152,40 152,40 2,23 0.0° 0.0° GP..050102 CT15 T6
Clamping System S • Steel
GSPM
NOTE: KRI shown as 95°.
NOTE: KRI shown as 67,5°.
order number catalogue number KRI D D min D2 F CD L
gage insert
L1 L4 A aF° aP° insert screw Torx
right hand
3518694
GSPM1316515R 95.0 16,00 16,00 12,95 9,50 3,02 127,00 127,00 50,80 2,49 0.0° 0.0° GC..060202 GT21 T7
left hand
3897894
GSPM101638225L 67.5 16,00 13,72 9,78 8,59 3,70 105,01 101,60 38,10 2,49 0.0° 0.0° GC..060202 GT21 T7
3897896 GSPM131651225L 67.5 16,00 16,89 12,95 10,16 3,68 130,90 127,00 50,80 2,49 0.0° 0.0° GC..060202 GT21 T7
3897895
GSPM1016385L 95.0 16,00 13,08 9,78 7,93 3,04 114,30 114,30 38,10 2,49 0.0° 0.0° GC..060202 GT21 T7
3896052
GSPM1316515L 95.0 16,00 16,00 12,95 9,50 3,02 127,00 127,00 50,80 2,49 0.0° 0.0° GC..060202 GT21 T7
D26
