WMT™ System
Catalogue Numbering System
для размещения заказа - zakaz@widiahanita.ru

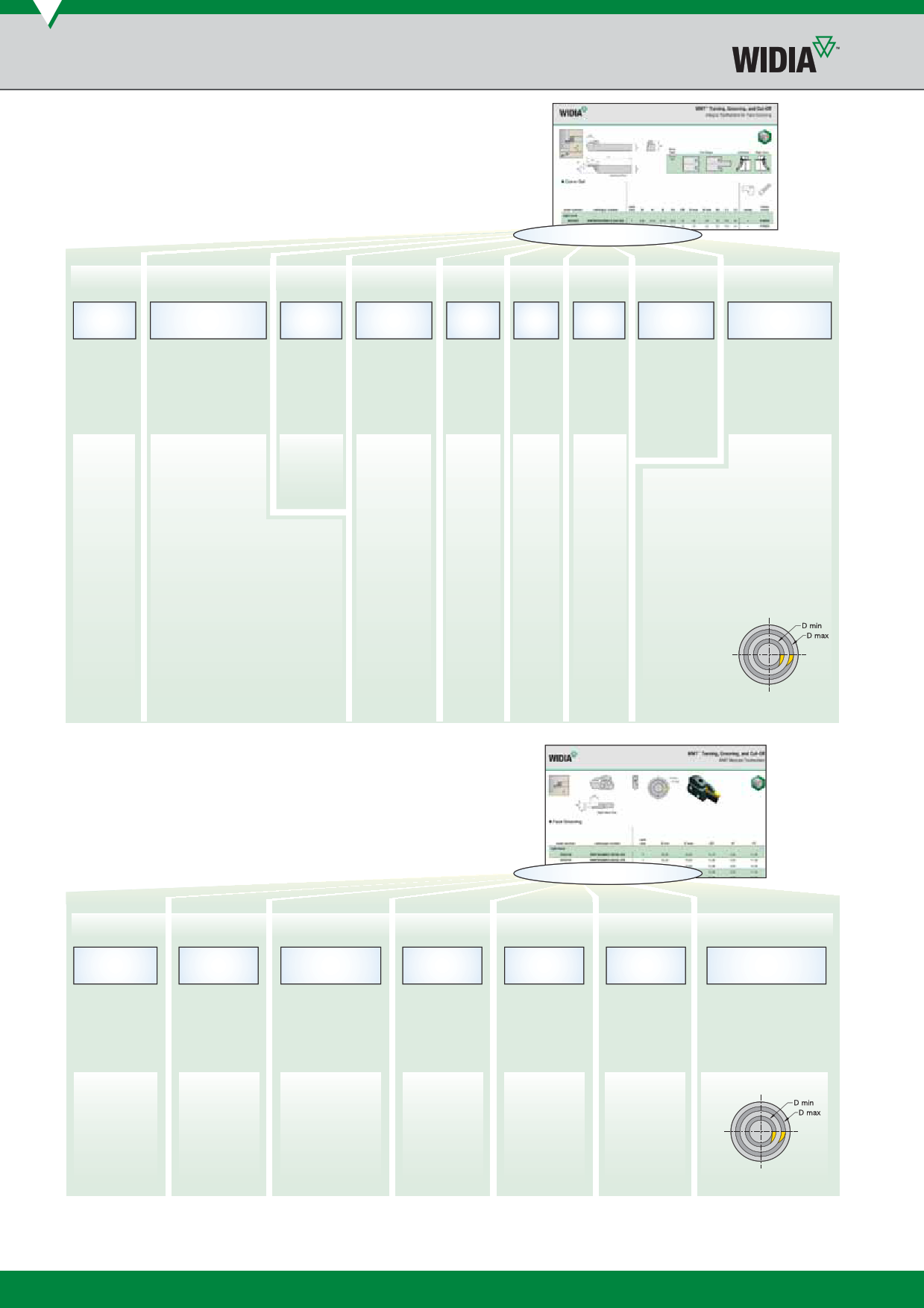

WMT System
Our WMT toolholders now have a smart new naming system.
Here are some examples of the improved nomenclature for
our WMT Toolholders.
Integral Toolholders
WMT
Tooling
System
B
Tool Style
WMTBR2525M313038-052
R 2525 M 3 13 —
Hand Shank Size Tool Seat Max
Length Size Grooving
Depth
038-052
Face Grooving
Diameter
WMT =
S = Straight
R = Right Height x Width H = 100
1 CD max
Diameters are
Groove
hand
in mm
J = 110
in mm
min and max
and Turn
(WMT
Insert)
C = Straight with
circular support
E = End mount
L = Left
hand
K = 125
L = 140
M = 150
P = 170
2
2B
3
D min – D max
in mm
(e.g., 70–100 =
70mm D min
100 mm D max)
for outer face
groove diameter
999 = unlimited
D max
A = Straight, face grooving,
curve in
B = Straight, face grooving,
curve out
4
5
6
8
Modular Blades
WMT WGM
Tooling
System
Connection
Type
R
Hand
WMTWGMR316B070-100
3
Seat Size
16
Max Grooving
Depth
B
Tool Style
070-100
Face Grooving
Diameter
R = Right hand
L = Left hand
A = Curve In
B = Curve Out
