TopGroove™
Boring Bars
для размещения заказа - zakaz@widiahanita.ru
Steel shank with
through coolant.
A-NNT

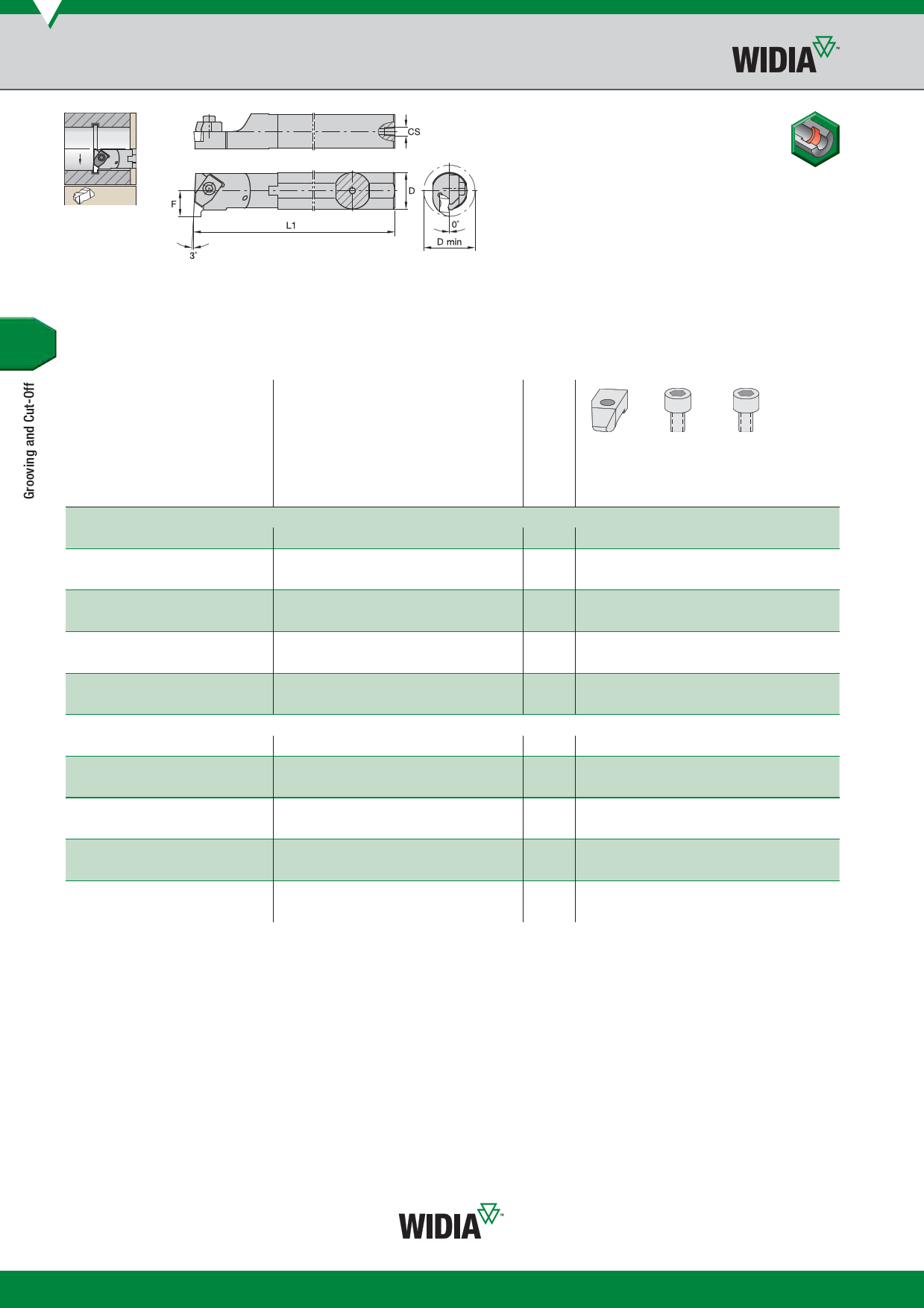

Right-hand toolholder shown.
order number catalogue number D D min L1 F
CS
right hand
3641644
A12MNNTOR2
12 18,5 150 11 1/16-27 NPT
3641643
A16MNNTOR2
16 22,0 150 11 1/8-27 NPT
3641645
A20QNNTOR2
20 26,0 180 13 1/8-27 NPT
3641651
A25RNNTOR2
25 34,0 200 17 1/4-18 NPT
3641622
A25RNNTOR3
25 34,0 200 17 1/8 - 27 NPT
3641646
A32SNNTOR3
32 44,0 250 22 1/4-18 NPT
3641653
A40TNNTOR3
40 54,0 300 27 1/4-18 NPT
3641654
A40TNNTOR4
40 54,0 300 27 1/4-18 NPT
3641661
A50UNNTOR4
50 70,0 350 35 1/4-18 NPT
left hand
3641655
A12MNNTOL2
12 18,5 150 11 1/16-27 NPT
3641649
A16MNNTOL2
16 22,0 150 11 1/8-27 NPT
3641652
A20QNNTOL2
20 26,0 180 13 1/8-27 NPT
3641657
A25RNNTOL2
25 34,0 200 17 1/4-18 NPT
3641650
A25RNNTOL3
25 34,0 200 17 1/4-18 NPT
3641656
A32SNNTOL3
32 44,0 250 22 1/4-18 NPT
3641659
A40TNNTOL3
40 54,0 300 27 1/4-18 NPT
3641663
A40TNNTOL4
40 54,0 300 27 1/4-18 NPT
3641690
A50UNNTOL4
50 70,0 350 35 1/4-18 NPT
NOTE: Minimum bore capability varies with depth of groove. See pages E86–E87 for details.
F dimension measured over sharp point of insert.
gage
insert
NG2L
N.2L
N.2L
N.2L
N.3L
N.3L
N.3L
N.4L
N.4L
NG2R
N.2R
N.2R
N.2R
N.3R
N.3R
N.3R
N.4R
N.4R
clamp
CM147
CM75
CM75
CM75
CM73LP
CM73LP
CM73LP
CM73LP
CM73LP
CM146
CM74
CM74
CM74
CM72LP
CM72LP
CM72LP
CM72LP
CM72LP
clamp
screw
MS1200
MS1200
MS1200
MS1200
—
—
—
—
—
MS1200
MS1200
MS1200
MS1200
—
—
—
—
—
clamp
screw
hex/
Torx
Plus
—
—
—
—
MS2111
MS2111
MS2111
MS2111
MS2111
2.5 mm
2.5 mm
2.5 mm
2.5 mm
25 IP
25 IP
25 IP
25 IP
25 IP
—
—
—
—
MS2111
MS2111
MS2111
MS2111
MS2111
2.5 mm
2.5 mm
2.5 mm
2.5 mm
25 IP
25 IP
25 IP
25 IP
25 IP
E78
