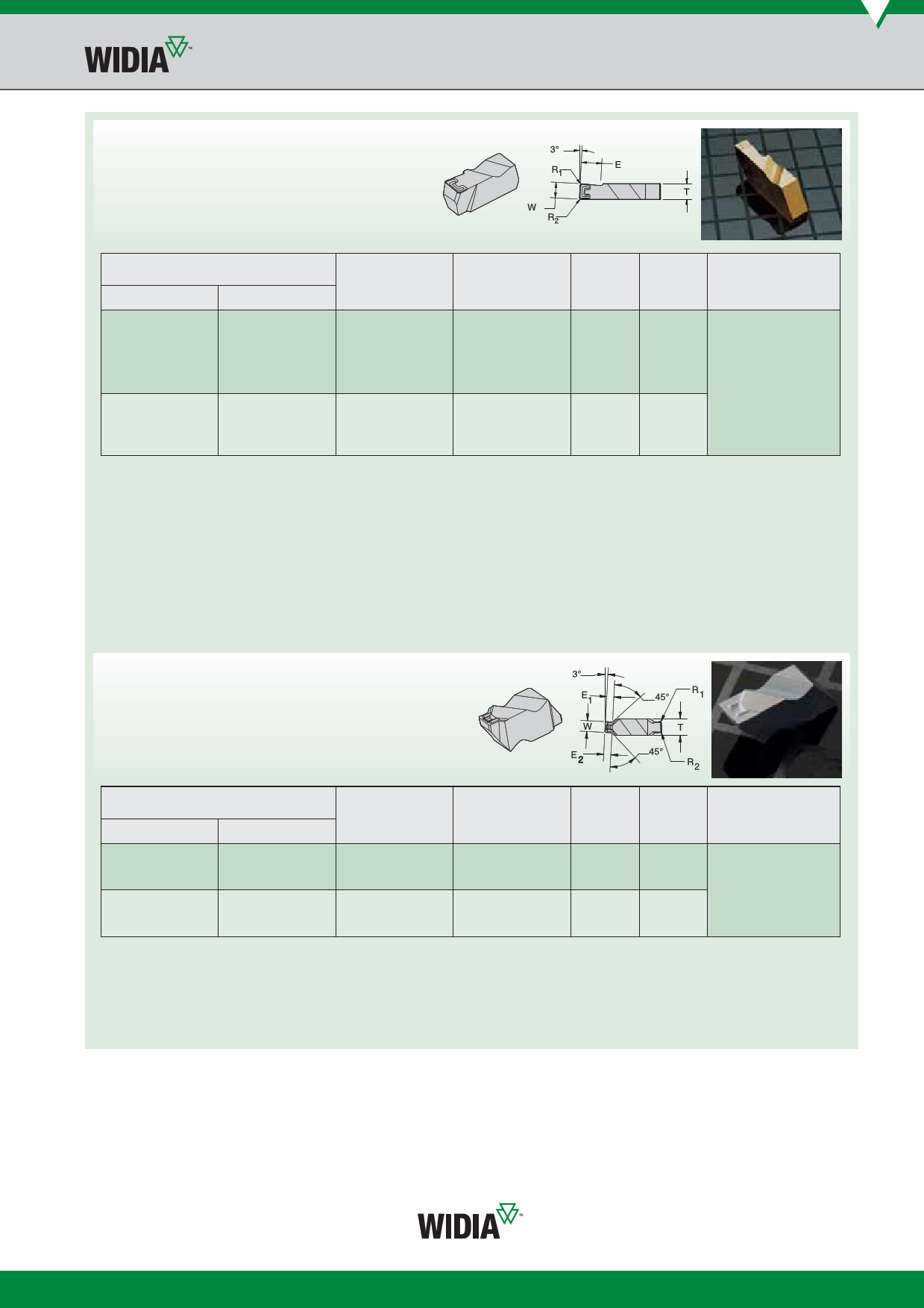

TopGroove™
Custom Order TopGroove Inserts with Chip Control
A-SK Specials
10 positive cutting action
• Deep grooving
• Deep face grooving
insert catalogue number
right hand
NGD3-R-SK
or
left hand
NGD3-L-SK
or
NFD3-R-SK
NFD3-L-SK
NGD4-R-SK
or
NFD4-R-SK
*One cutting edge.
NG4-L-SK
or
NF4-L-SK
width range W
1,45–1,75
2,26–2,57*
3,05–3,35*
4,67–4,98*
3,05–3,35*
4,57–4,98*
6,22–6,53*
NG-SK, NF-SK, NGD-SK, and NFD-SK inserts may be specially
ordered within the specications listed in the above charts.
Order example: NF3R-SK W = .090,
R1 = .010, R2 = .010, grade TN6010™.
Unless otherwise specied, a standard tolerance of ±0,03mm
on width (W) will be applied, and a standard tolerance of
±0,06mm on radii (R1 and R2) will be applied.
corner radii range
R1 and R2
.008–.033
.008–.033
.008–.033
.046–.071
.008–.033
.046–.071
.046–.071
E
3,18
6,35
6,35
6,35
6,35
9,53
12,70
T grades
4,95
Carbide grades
quoted upon request.
See page E47.
6,48
If deeper cutting depth (E) is required, please specify. Refer to
the application drawing and charts for maximum face groove
depths and minimum face groove diameters.
In addition to the guidelines above, full radius face groove inserts
may be quoted. Under certain conditions, chip control performance
may vary from standard insert styles.
C1-SK Specials
• Groove and chamfer
insert catalogue number
right hand
left hand
NB2-R-K
NB2-L-K
width range W
1,19–3,18
corner radii range
R1 and R2
0,13–0,38
E
2,54
NB3-R-K
NB3-L-K
2,39–4,32
0,13–0,64
NOTE: The above insert style is for simultaneous groove and chamfer operations with chip control.
3,81
T grades
3,81 Carbide grades
quoted upon request.
See page E47.
4,95
