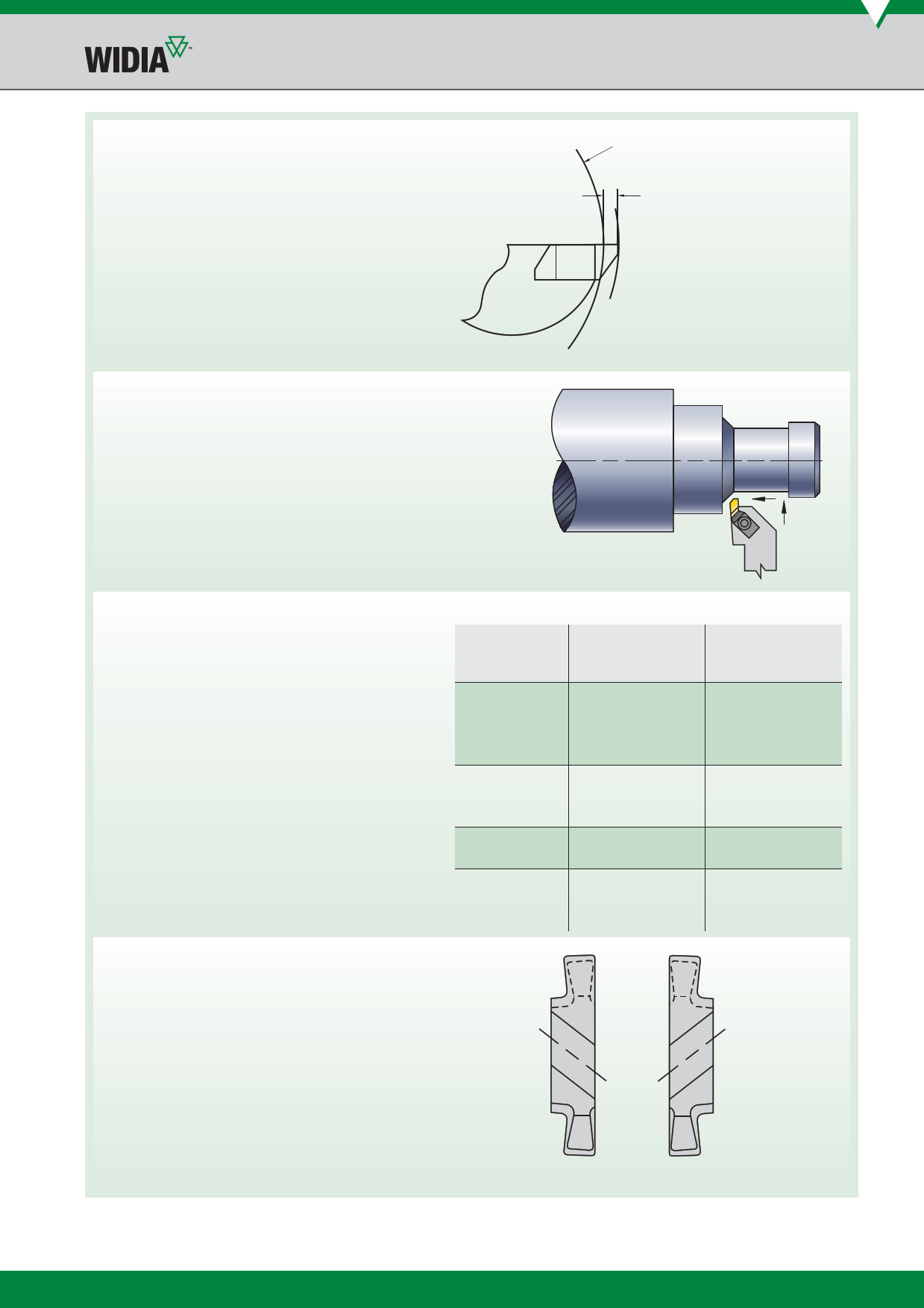

TopGroove™
Machining Guidelines
Internal Groove Depth versus Bar Interference
minimum bore diameter
at maximum groove depth
maximum groove depth
NOTE: Internal grooving depth limits are a function of bar clearance versus bore diameters.
Machining Guidelines for Back Turning/Turning/Proling
The NP-K-style TopGroove inserts were engineered specifically for back
turning on small automatic lathes, but they also find applications for other
light turning and profiling operations. For general applications, maximum
depth of cut should not exceed 2,74mm for size 2 inserts or 3,84mm
for size 3 inserts.
Machining Guidelines for Using TopGroove Deep Grooving Inserts (NGD)
Typically, those NGD- and NRD-style inserts with two
cutting edges require no machine offset changes.
However, those inserts with only one cutting edge
do require offset changes. Refer to the chart here
to ensure proper offset adjustments.
TopGroove Insert Selection Guide
insert
catalogue number
NGD-3062
NGD-3094
NGD-3125
NGD-3189
NGD-4125
NGD-4189
NGD-4250
NRD-3031
NRD-3062
NRD-4062
NRD-4094
NRD-4125
add to C
dimension
mm
0,00
2,54
2,54
2,54
0,00
3,18
6,35
0,00
2,54
0,00
6,35
6,35
• All TopGroove inserts are precision ground
to provide accurate edge location and secure
locking of the insert in the toolholder pocket.
• TopGroove inserts can be used in either toolholders
or boring bars.
• Right-hand TopGroove toolholders use right-hand inserts.
Left-hand TopGroove toolholders use left-hand inserts.
• Right-hand TopGroove boring bars use left-hand inserts.
Left-hand TopGroove boring bars use right-hand inserts.
add to F
dimension
mm
0,00
2,54
2,54
2,54
0,00
3,18
6,35
0,00
2,54
0,00
6,35
6,35
left-hand insert
right-hand insert
