WIDIA™ Milling Tool Bodies

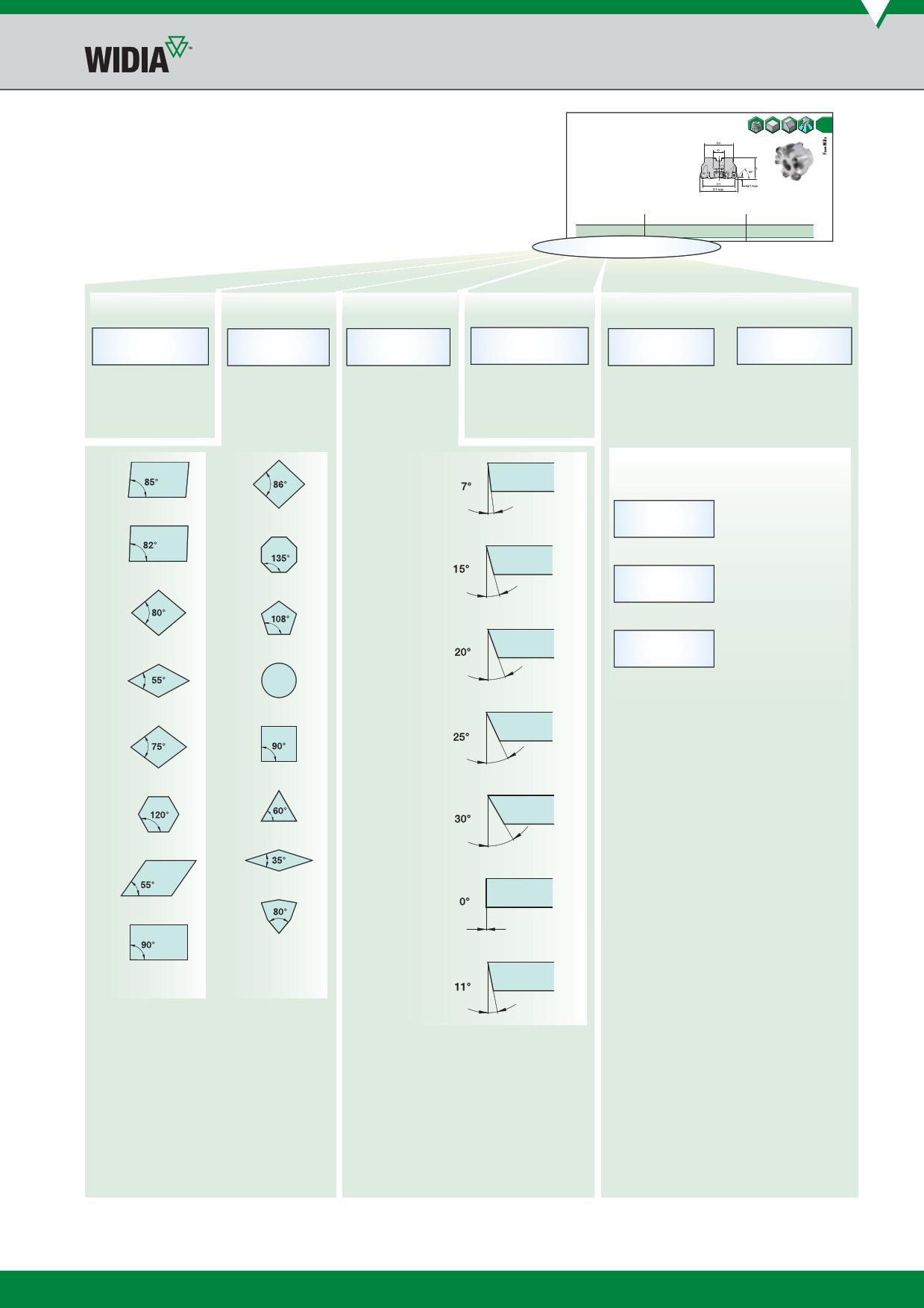

Catalogue Numbering System
By referencing this easy-to-use guide,
you can identify the correct product to
meet your needs.
• Twelve cutting edges.
• First choice for low depth-of-cut face milling.
• Maximum number of teeth per diameter.
n Shell Mills
order number
catalogue number
coolant
D1 D1 max D D6 L L2 Ap1 max Z max RPM supply
kg
3957995
M1200D040Z04HN07 40
48,7 22 38 40 40
3,5
4 15800
Yes 0,26
3957996
M1200D040Z05HN07 40
48,7 22 38 40 40
3,5
5 15800
Yes 0,26
3957997
M1200D050Z04HN07 50
58,7 22 38 40 40
3,5
M1200D100Z03C100HN07L800
4 12700
Yes 0,35
Indexable Milling Tool Bodies
100 H
Shank/Pilot
Diameter
Insert Shape
AM
B
O
CP
DR
ES
N
Insert
Clearance Angle
07
Insert Size
(Cutting Edge Length)
L 800
Overall Length of Tool
Used for all cylindrical shank and long version
Weldon® if required (standard Weldon without)
Optional uses as required
C
LH Left Hand
CD Carbide Shank
HME Heavy Metal Shank
F
HT
G
V
K
W
N
L
Special
X Design
P
