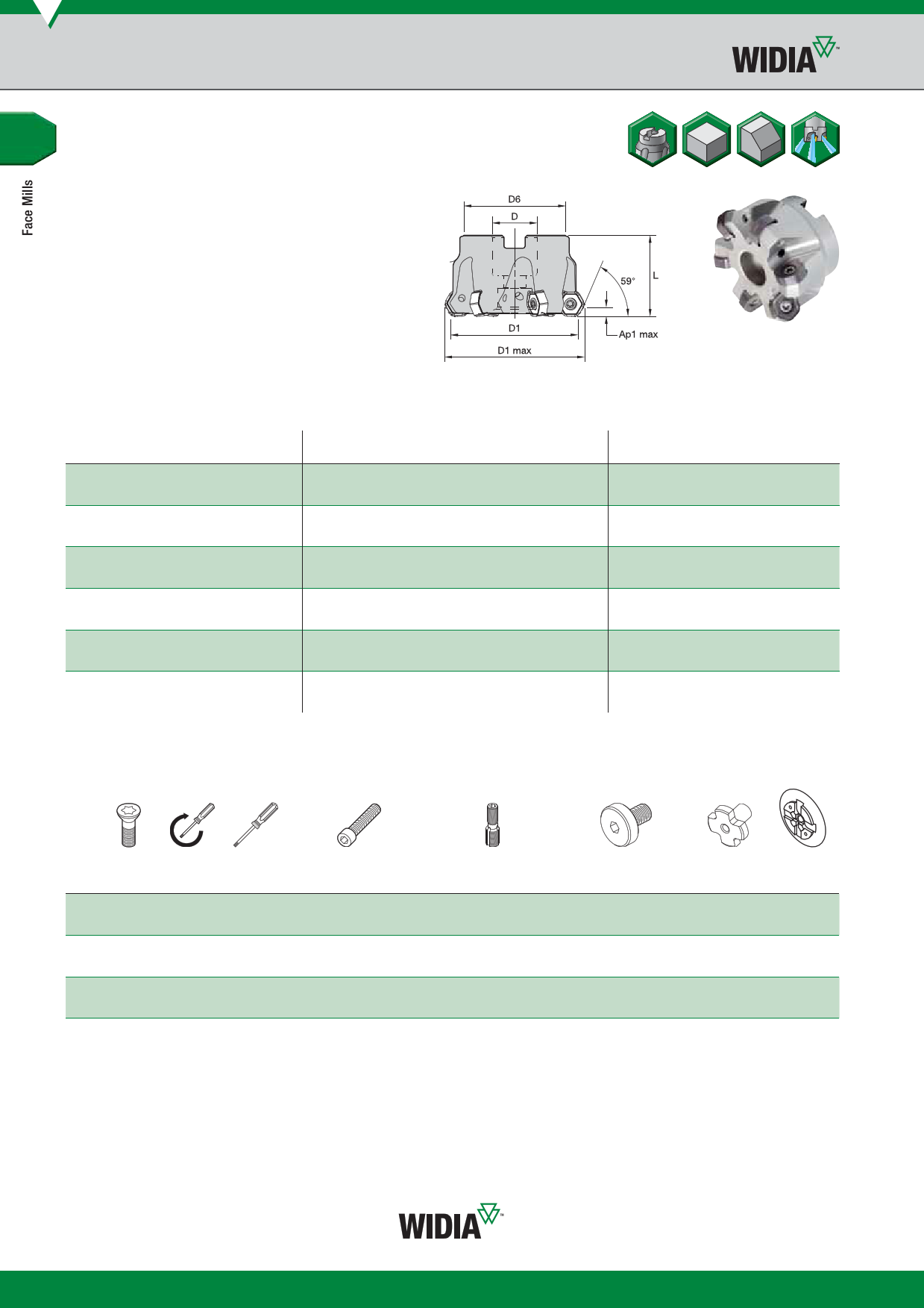

Face Mills • Victory™ M1200 Mini Series
Victory M1200 Mini • HD • Shell Mills
• Twelve cutting edges.
• Higher axial depth-of-cut capability
with 59° lead angle.
Shell Mills
order number
catalogue number
coolant
D1 D1 max D D6 L Ap1 max Z max RPM supply
kg
4136482
M1200HD040Z04HN07
40
46,8 22 38 40
4,7
4 15800
Yes 0,22
4136863
M1200HD040Z05HN07
40
46,8 22 38 40
4,7
5 15800
Yes 0,22
4136864
M1200HD050Z04HN07
50
56,8 22 38 40
4,7
4 12700
Yes 0,34
4136865
M1200HD050Z05HN07
50
56,8 22 38 40
4,7
5 12700
Yes 0,34
4136866
M1200HD063Z04HN07
63
69,8 22 50 40
4,7
4 10100
Yes 0,58
4136867
M1200HD063Z06HN07
63
69,8 22 50 40
4,7
6 10100
Yes 0,60
4136868
M1200HD080Z05HN07
80
86,8 27 60 50
4,7
5 7900
Yes 1,11
4136869
M1200HD080Z08HN07
80
86,8 27 60 50
4,7
8 7900
Yes 1,17
4136870
M1200HD100Z06HN07 100
106,7
32 80 50
4,7
6 6300
Yes 1,74
4136871
M1200HD100Z09HN07 100
106,7
32 80 50
4,7
9 6300
Yes 1,74
4136872
M1200HD125Z08HN07 125
131,7
40 90 63
4,7
8 5050
Yes 2,86
4136873
M1200HD125Z12HN07 125
131,7
40 90 63
4,7
12 5050
Yes 2,90
Spare Parts
insert
Torx
D1 screw Nm driver
40 12146034500 3,5 12148082400
50 12146034500 3,5 12148082400
socket-head
cap screw
—
12146120500
mounting screw
with coolant grooves
12146109200
—
coolant
screw assembly
—
—
coolant
lock screw
—
—
coolant
cap
—
—
63 12146034500 3,5 12148082400
80 12146034500 3,5 12148082400
12146120500
12748701000
—
—
— ——
— ——
100 12146034500 3,5 12148082400
—
—
12146109400
——
125 12146034500 3,5 12148082400
—
—
— 12146107000 12146111000
NOTE: Mounting screw with coolant groove, coolant screw assembly, coolant lock screw, and coolant cap must be ordered separately.
