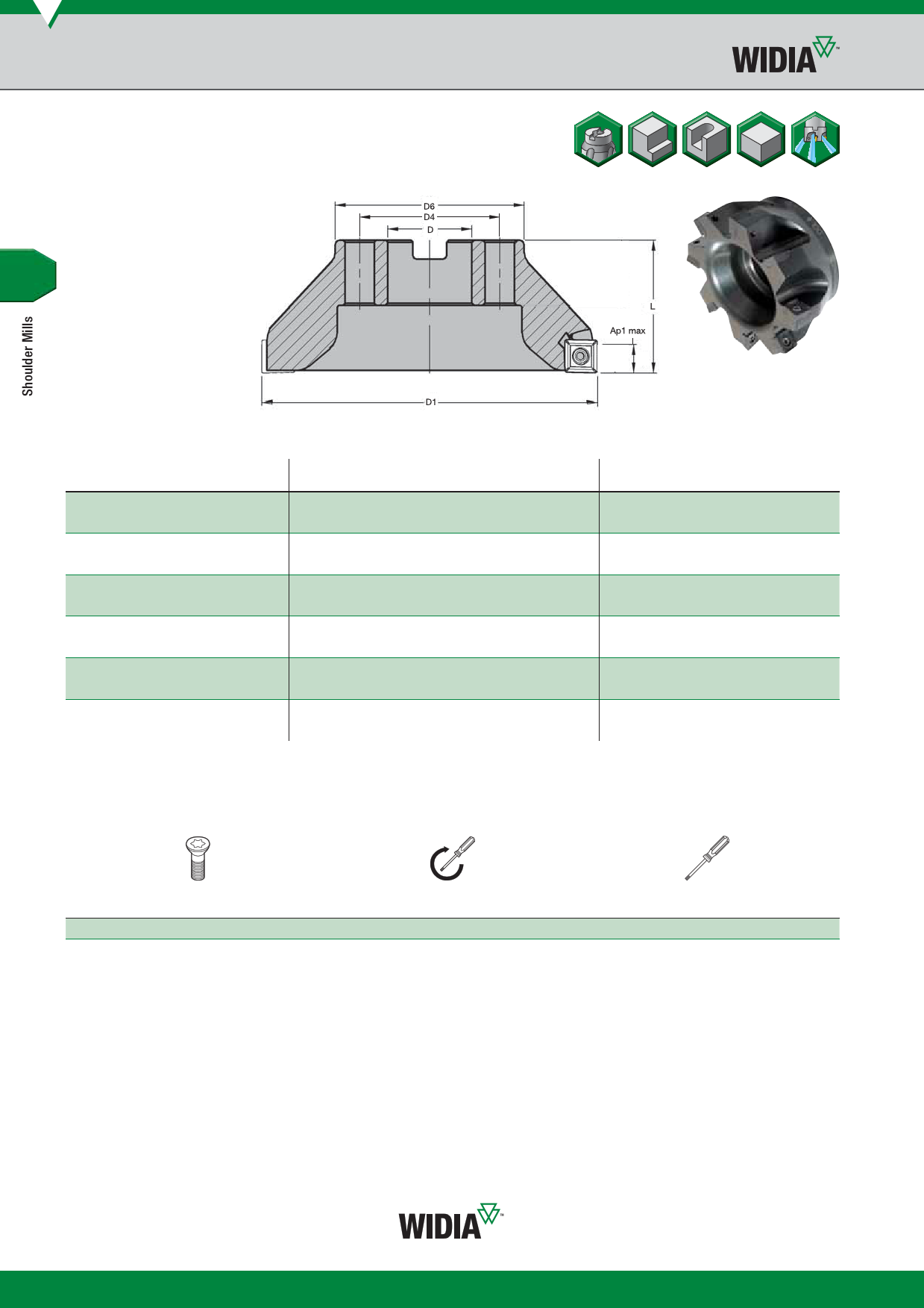

Shoulder Mills • M690 Series
Shell Mills • SD1204..
для размещения заказа - zakaz@widiahanita.ru
• Four cutting edges.
• 90° shoulders.
• Excellent for slot and profile milling.
Shell Mills
coolant
order number
catalogue number
D1
D
D4
D6 L Ap1 max Z max RPM supply
kg
2003556
12396953800
50 22 — 47 40
10,0
4 22400
Yes 0,3
2003557
12396954000
50 22 — 47 40
10,0
5 22400
Yes 0,3
2003573
12396954200
63 22 — 50 40
10,0
5 20000
Yes 0,5
2003574
12396954400
63 22 — 50 40
10,0
6 20000
Yes 0,5
2003580
12396954600
80 27 — 60 50
10,0
6 17700
Yes 1,0
2003581
12396954800
80 27 — 60 50
10,0
8 17700
Yes 1,1
2003596
12396955000
100 32 — 78 50
10,0
8 15800
No 1,5
2003597
12396955200
100 32 — 78 50
10,0
10 15800
No 1,6
2003693
12396955400
125 40 — 89 63
10,0
9 14200
No 3,0
2003694
12396955600
125 40 — 89 63
10,0
12 14200
No 3,0
2003793
12396955800
160 40 66,7 90 63
10,0
12 12500
No 3,6
2003794
12396956000
160 40 66,7 90 63
10,0
15 12500
No 3,6
NOTE: Standard milling cutters will accept insert nose radius up to 2mm without modication.
For tool body modication instructions, see page J16.
