Copy Mills • M370™ Series
Additional Application Advice • WO.J0804...

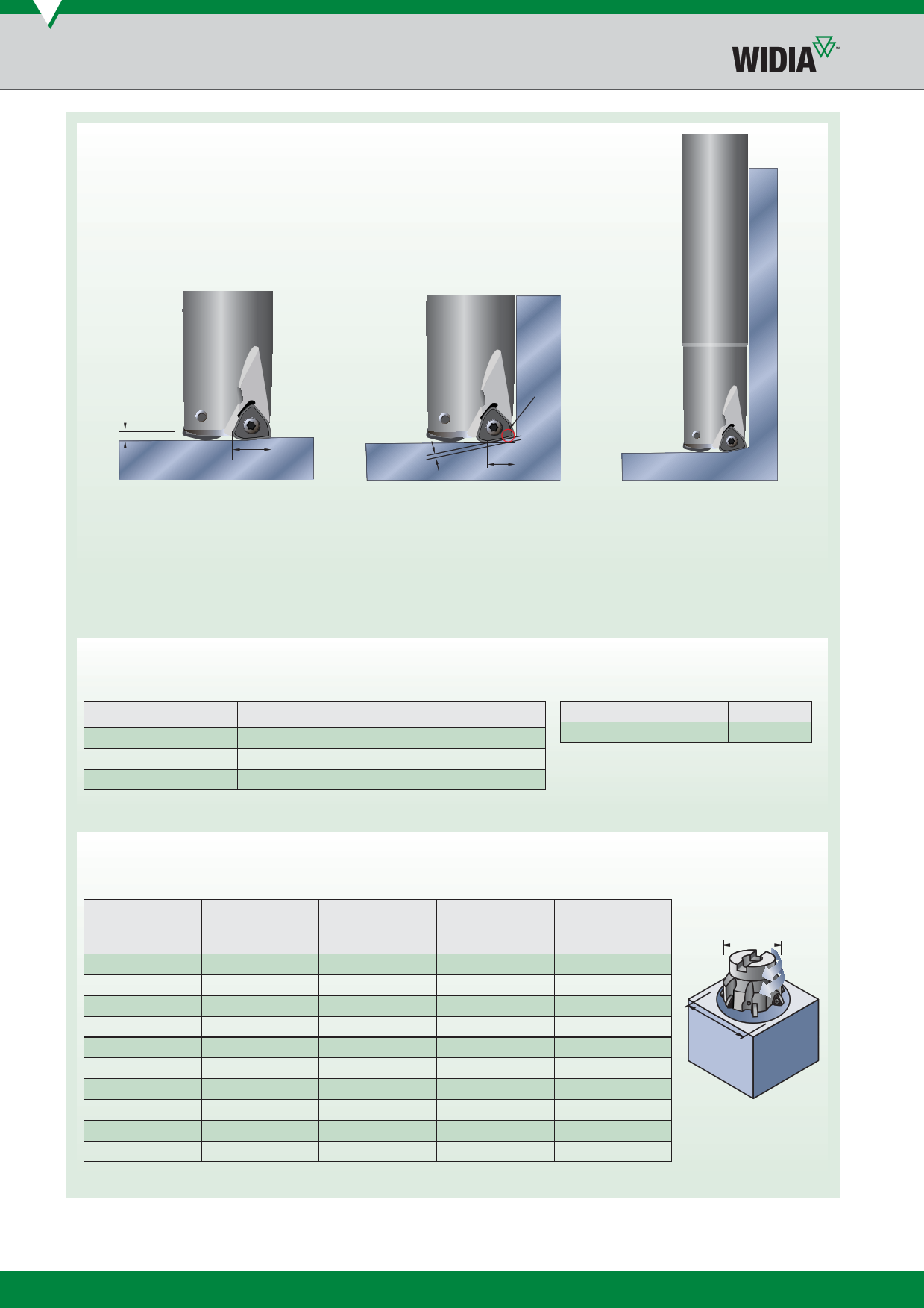

Applying High-Feed Tools
The high-feed concept bases its strategy on small depth of cut
and higher fz values, which results in a higher MRR and productivity
with low radial forces.
Ap1 max
Wt
Small Ap1 values and higher feed
rates generate lower cutting forces
versus traditional milling strategies.
Rt
Wt
t
For CAM programming, the tools
can be programmed as a toroidal
tool type by using the Rt value as
the insert radius.
Recommended when long
overhang is necessary due to
lower radial forces. Maximum
L/D ratio of 10 x D.
General Programming Information for Applying M370
L/D ratio
<3
>3–<5
>5–<7
starting Ap1
0,9mm
0,6mm
0,4mm
starting fz range
1–1,3mm
1–1,3mm
0,6–1mm
Rt
2,5mm
t
1mm
Wt
7,5mm
Maximum Linear Ramping and Helical Interpolation from Solid • Metric
cutter diameter
25
28
32
40
42
50
52
63
66
80
max linear ramp angle
(straight line)
3,1°
2,6°
2,9°
1,6°
1,5°
1,3°
1,2°
1°
1°
0,8°
min hole
diameter
30,2
36,1
44,1
60
64
80
84
106
112
140
max hole
diameter
49,5
55,5
63,5
79,5
83,5
99,5
103,5
125,5
131,5
155,5
Ap1 max
per revolution
1,25
1,25
1,25
1,25
1,25
1,25
1,25
1,25
1,25
1,25
Cutter
Diameter
Hole
Diameter
M10
