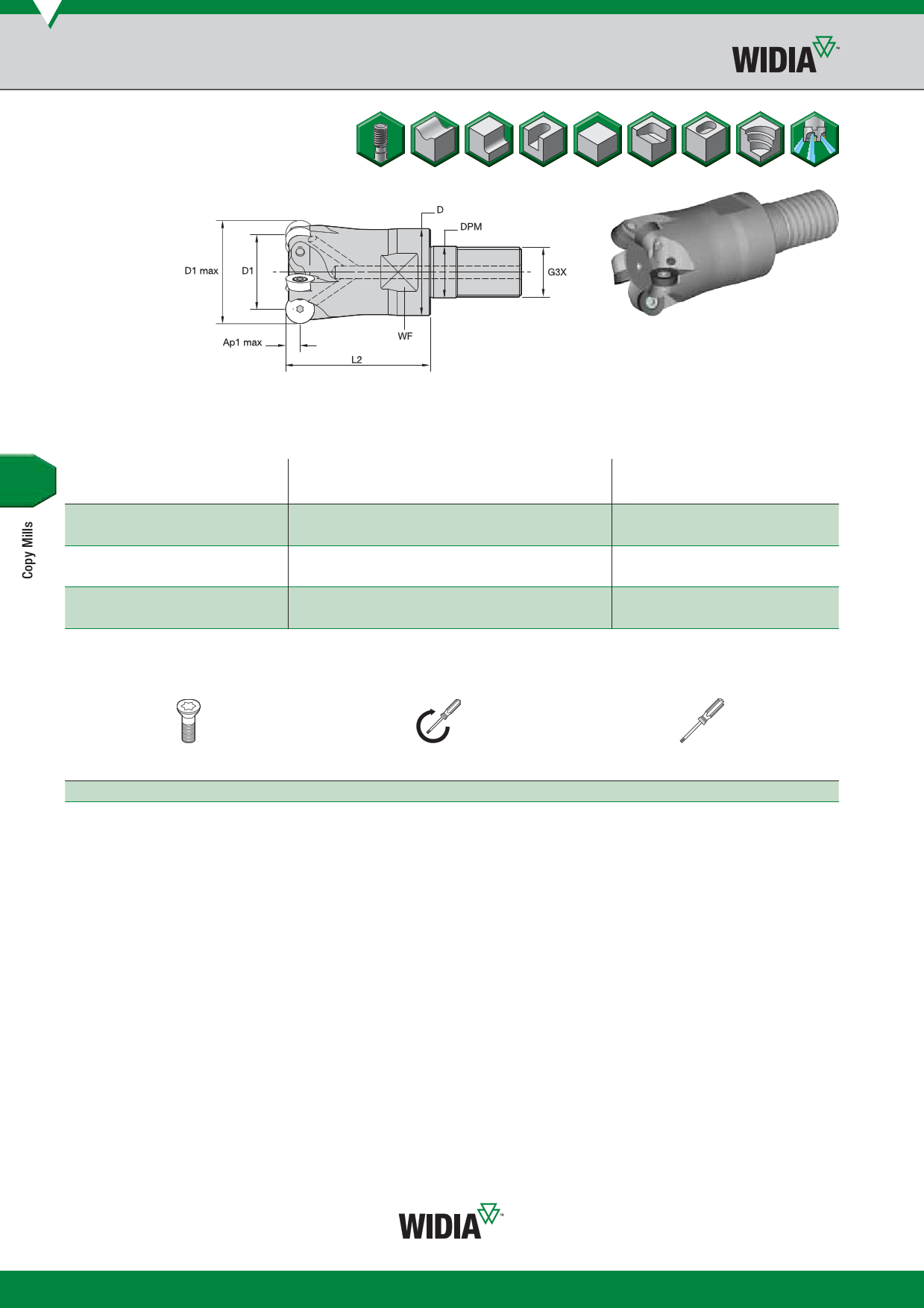

Copy Mills • M170™ Series
Screw-On End Mills • RD0702..
для размещения заказа - zakaz@widiahanita.ru
• Premium nickel-coated bodies.
• Designed for maximum performance.
• Ideally suited for die and mould manufacturing.
Screw-On End Mills
order number
catalogue number
D1 max D1 D
max
ramp
coolant
DPM G3X L2 WF Ap1 max Z angle max RPM supply
kg
3926607
M170D015Z02M08RD07
15
8 13 8,5 M8 23 10
3,5
2 18.0° 21200
Yes 0,03
3926608
M170D016Z03M08RD07
16
9 13 8,5 M8 23 10
3,5
3 9.0°
21200
Yes 0,03
3926609 M170D020Z04M10RD07 20 13 18 10,5 M10 30 14 3,5 4 12.5° 19600
Yes 0,06
3926610 M170D025Z05M12RD07 25 18 21 12,5 M12 35 19
3,5
5 8.5°
12700
Yes 0,10
3926611 M170D030Z05M16RD07 30 23 29 17,0 M16 43 22
3,5
5 6.5°
10600
Yes 0,20
3926612 M170D035Z06M16RD07 35 28 29 17,0 M16 43 22 3,5 6 4.8° 9900
Yes 0,23
Spare Parts
insert
screw
193.341
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
1,0
Torx
12147549000
M46
