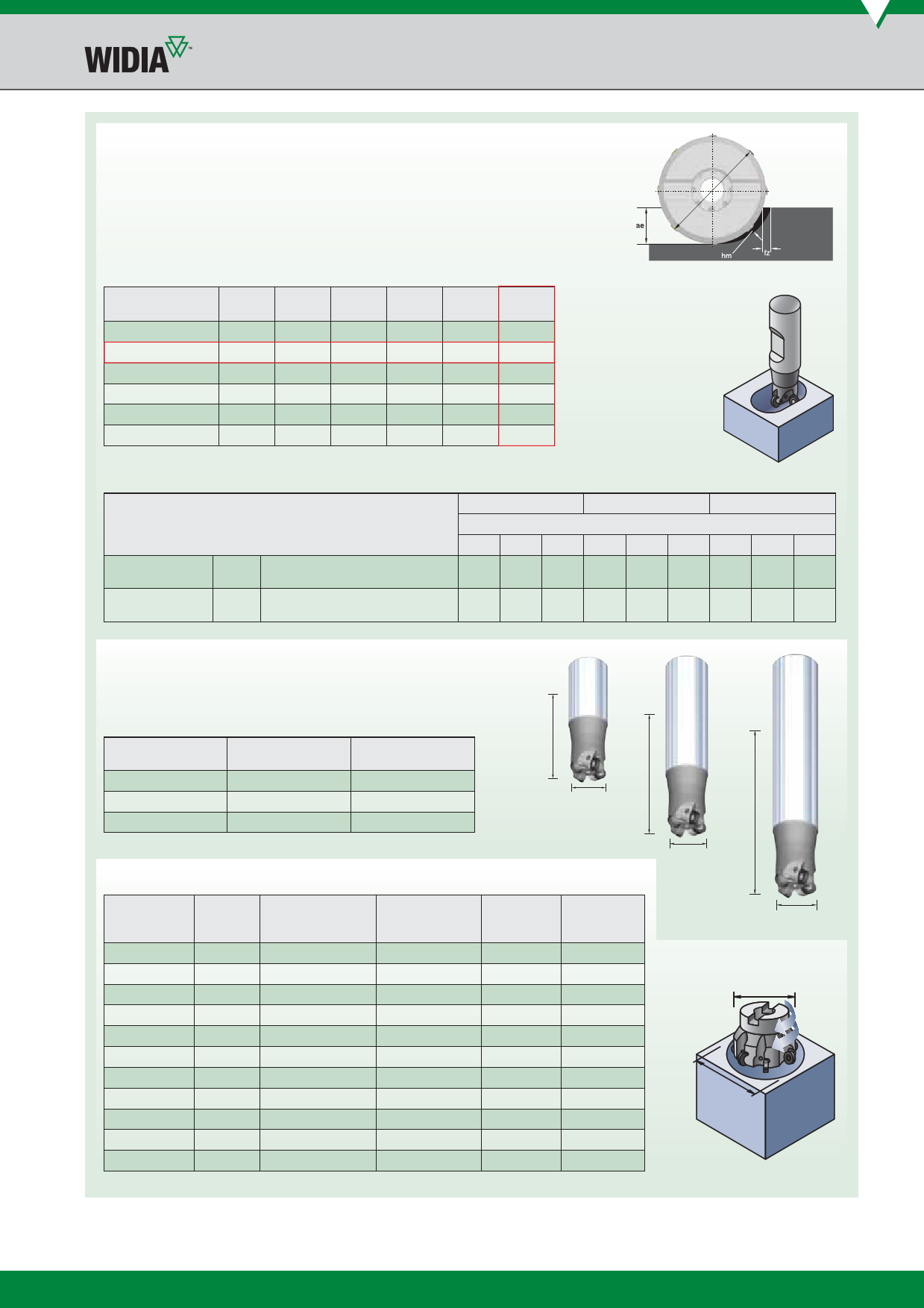

Copy Mills • M170™ Series
Additional Application Advice • RD12T3..
Selecting the Correct Cutting Values
1. fz depends on the Ap1 and ae values
With round inserts, two factors can affect the hm: Ap1 and ae.
fz has to be adjusted accordingly.
Recommended Starting Feed Rate Values (fz) Related to the Ap1 and ae Values:
ae engagement
Ap1 = 1mm
Ap1 = 2mm
Ap1 = 3mm
Ap1 = 4mm
Ap1 = 5mm
Ap1 = 6mm
10%
1,01mm
0,77mm
0,63mm
0,55mm
0,49mm
0,45mm
20%
0,77mm
0,55mm
0,45mm
0,39mm
0,35mm
0,32mm
30%
0,63mm
0,45mm
0,37mm
0,32mm
0,28mm
0,26mm
40%
0,55mm
0,39mm
0,32mm
0,27mm
0,24mm
0,22mm
50%
0,49mm
0,35mm
0,28mm
0,24mm
0,22mm
0,20mm
100%
0,35mm
0,24mm
0,20mm
0,17mm
0,15mm
0,14mm
Example application
highlighted.
Example Cutting Conditions for RD..10... Insert in Pocketing, L/D ratio = 2 x D:
insert = RDPX12T3M0SN
TN2505
TN6525
TN6540
feed per tooth fz (mm)/ae>50%
min med max min med max min med max
Edge Geometry MM ae>50% Recommended starting Ap1 = 2mm
–
–
– 0,24mm 0,30mm 0,50mm 0,24mm 0,40mm 0,60mm
Edge Geometry MH ae>50% Recommended starting Ap1 = 2mm 0,24mm 0,30mm 0,50mm 0,24mm 0,40mm 0,65mm 0,24mm 0,50mm 0,70mm
2. Ap1 and vc corrections depend on L/D ratio
With increasing L/D ratios, or overhang, vibrations can occur due to reduced
rigidity. To ensure successful application, it is recommended to adjust Ap1
and vc values according to the following table:
L/D ratio
<2
2<L/D<4
>4
% of Ap1 max
to reduce
0%
65–75%
80–95%
% of vc
to reduce
0%
10–15%
20–40%
L
L
D
Recommended Cutting Conditions • Helical Interpolation from Solid
cutter diameter
24
32
35
40
42
50
52
63
66
80
100
min hole
diameter
25,6mm
40,6mm
46,9mm
57,4mm
61,2mm
77,4mm
81,3mm
102,4mm
108,5mm
136,5mm
176,5mm
max hole diameter
(at bottom)
36mm
52mm
58mm
68mm
72mm
88mm
92mm
114mm
120mm
148mm
188mm
Ap1 max per
revolution
1,3mm
5,3mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
6mm
max ramp
angle
15°
12°
11°
9.3°
7.2°
6.1°
4.5°
4.5°
4.5°
3.5°
2.2°
Ap1 max
when plunging
3mm
4,4mm
3,9mm
3,3mm
3,5mm
3,5mm
3,2mm
4,6mm
4,4mm
4,2mm
4,2mm
L
D
D
Cutter
Diameter
Hole
Diameter
