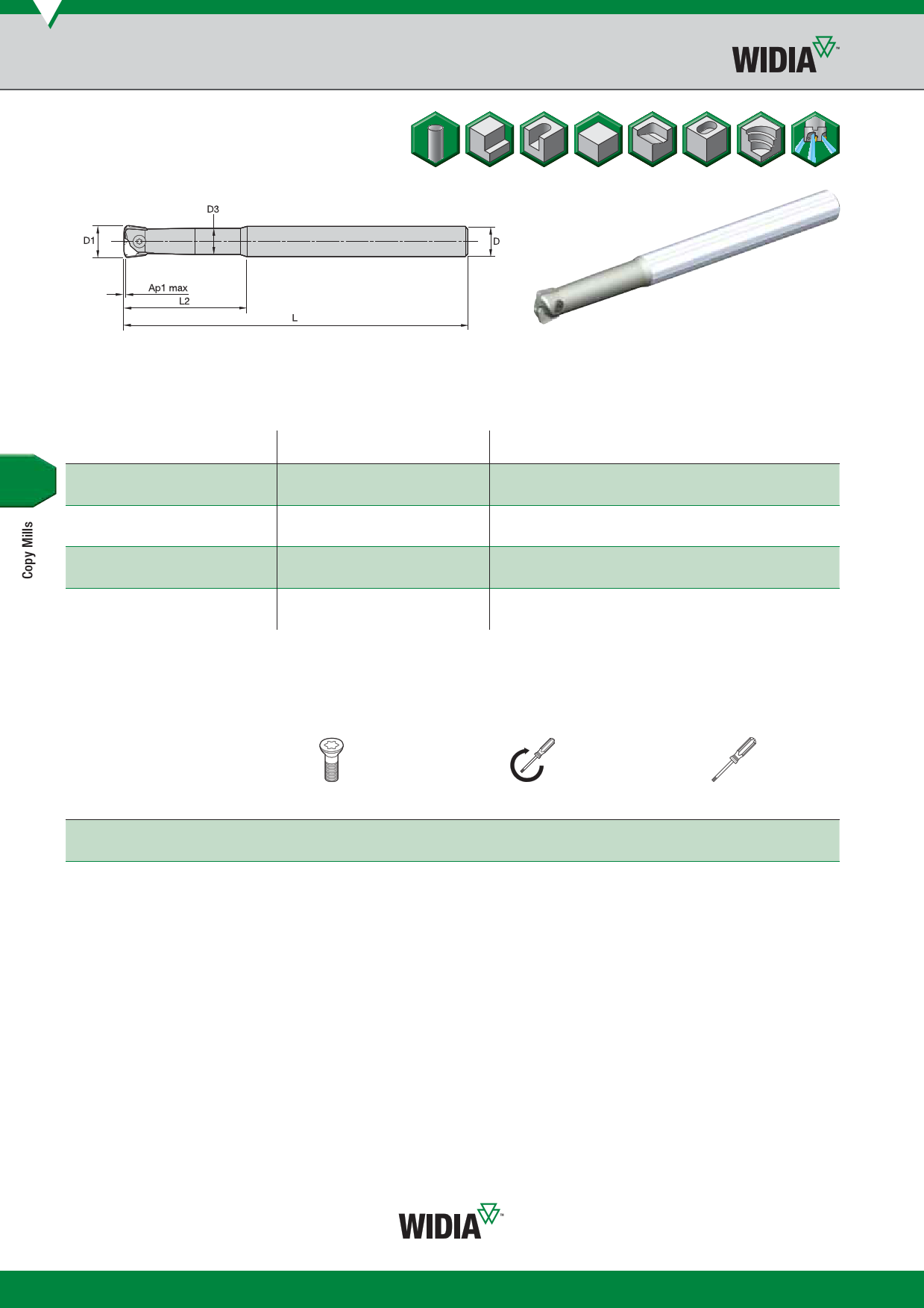

Copy Mills • M270™ Series
High-Feed Tool Bodies
для размещения заказа - zakaz@widiahanita.ru
• High metal removal rates.
• Excellent in long reach applications.
• Carbide shank for higher rigidity.
High-Feed • Carbide Cylindrical Shanks
order number catalogue number D1 D D3 L L2 Ap1 max Z Z U insert 1
coolant
insert 2* max RPM supply kg
3926518 M270TD010A10L120C 10 10 9 120 45 0,6 1 2 M270HF10
—
57000
Yes 0,11
3926519 M270TD010A10L150C 10 10 9 150 45 0,6 1 2 M270HF10
—
57000
Yes 0,14
3926520 M270TD012A12L120C 12 12 11 120 50 0,6 1 2 M270HF12 M270HF13 55000
Yes 0,15
3926521 M270TD012A12L160C 12 12 11 160 50 0,6 1 2 M270HF12 M270HF13 55000
Yes 0,22
3926522 M270TD016A16L140C 16 16 14 140 57 0,9 1 2 M270HF16 M270HF17 53000
Yes 0,32
3926543 M270TD016A16L180C 16 16 14 180 57 0,9 1 2 M270HF16 M270HF17 53000
Yes 0,44
3926544 M270TD020A20L150C 20 20 18 150 70 1,1 1 2 M270HF20
—
52000
Yes 0,52
3926545 M270TD020A20L200C 20 20 18 200 70 1,1 1 2 M270HF20
—
52000
Yes 0,74
NOTE: ZU = Effective teeth.
Z = number of pocket seats.
*D1 = 13mm when using M270HF13; D1 = 17mm when using M270HF17.
Spare Parts
insert
D1 screw
10 12748610500
12 12748610600
16 12748610700
20 12748610800
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
2,0
2,0
5,0
5,0
Torx
driver
12148788900
12148788900
12148099300
12148099300
M126
