• High metal removal rates.
• Excellent in long reach applications.
• Rough and semi-finishing applications.

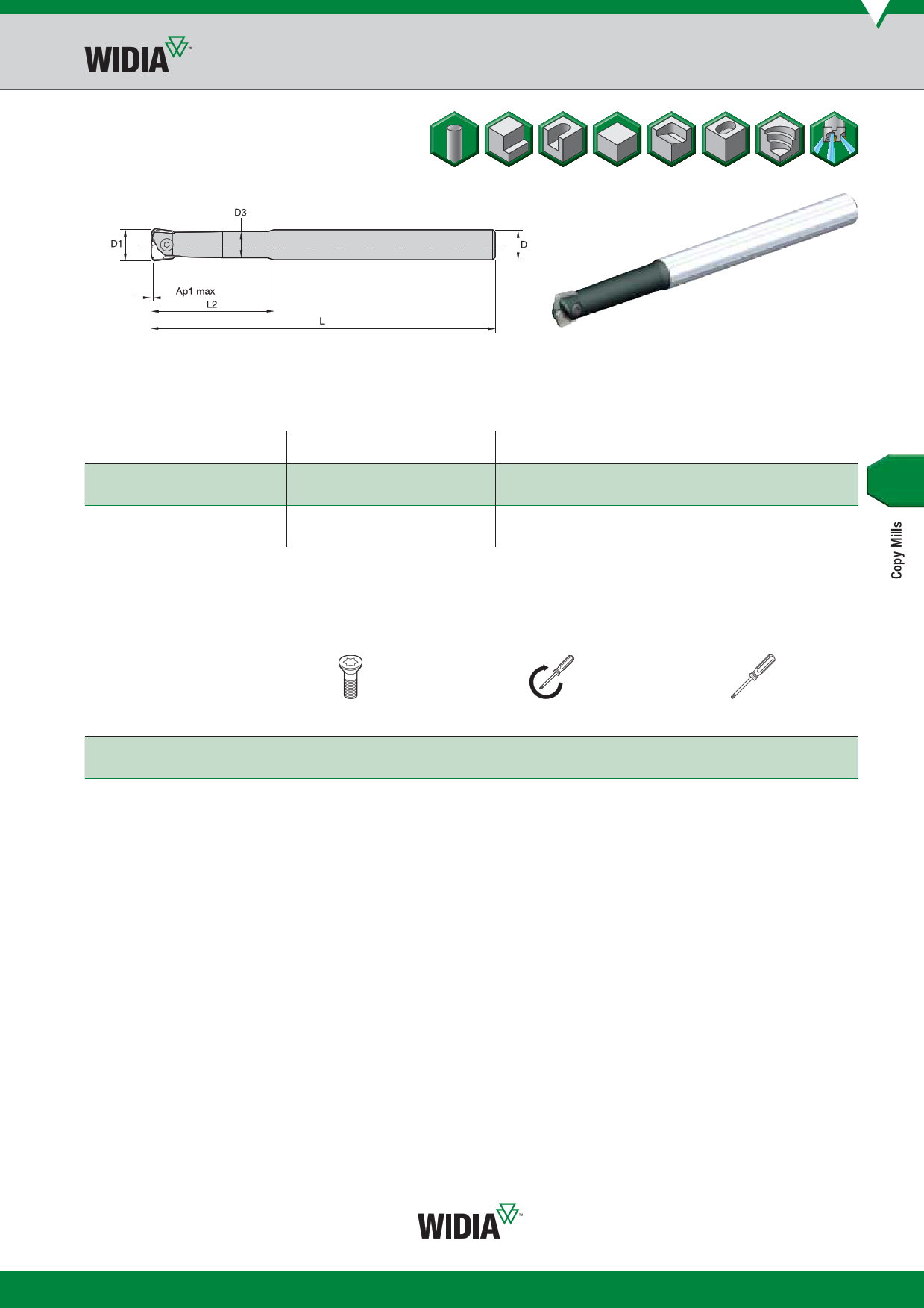

Copy Mills • M270™ Series
High-Feed Tool Bodies
High-Feed • Cylindrical Shanks
order number catalogue number D1 D D3 L L2 Ap1 max Z Z U
3926514 M270TD010A10L120 10 10 9 120 45 0,6 1 2
3926515 M270TD012A12L140 12 12 11 140 50 0,6 1 2
3926516 M270TD016A16L160 16 16 14 160 57 0,9 1 2
3926517 M270TD020A20L180 20 20 18 180 70 1,1 1 2
NOTE: ZU = Effective teeth.
Z = number of pocket seats.
*D1 = 13mm when using M270HF13; D1 = 17mm when using M270HF17.
insert 1
M270HF10
M270HF12
M270HF16
M270HF20
Spare Parts
insert 2*
—
M270HF13
M270HF17
—
max RPM
57000
55000
53000
52000
coolant
supply
Yes
Yes
Yes
Yes
kg
0,06
0,09
0,19
0,35
insert
D1 screw
10 12748610500
12 12748610600
16 12748610700
20 12748610800
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
2,0
2,0
5,0
5,0
Torx
driver
12148788900
12148788900
12148099300
12148099300
