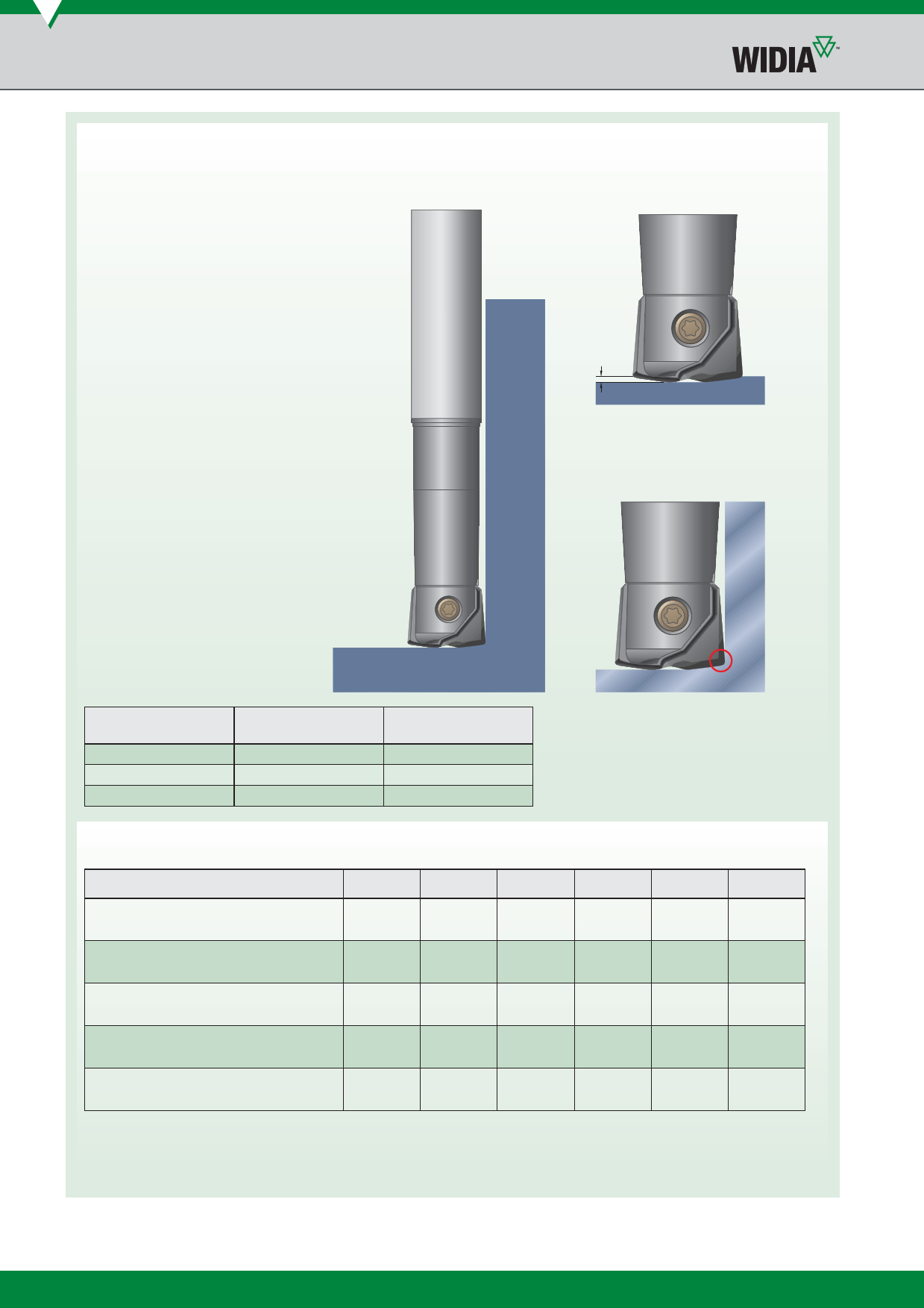

Copy Mills • M270™ Series
Additional Application Advice • M270 High-Feed
Applying High-Feed Tools
The high-feed concept bases its strategy in small depth of cut and high fz
values, which results in a higher MRR and productivity with low radial forces.
Recommended when long overhang is
necessary due to lower radial forces.
Maximum L/D ratio of 10 x D.
Ap1 max
Small Ap1 values and higher feed rate
generate lower cutting forces versus
traditional milling strategies.
L/D ratio
<4
4<L/D<7
>8
% of Ap1 max
to reduce
0%
55–65%
65–75%
% of vc
to reduce
0%
10–15%
20–30%
Rt
For CAM programming, the tools can be
programmed as a toroidal tool type by
using the Rt value as the insert radius.
General Programming Information for Applying M270 High-Feed
tool diameter
recommended starting Ap1 (mm)
10 12 13 16 17 20
0,40 0,40 0,40 0,60 0,60 0,75
Rt
CAM programming
fz
recommended for general purpose
fz
recommended for 45 HRC (approx.)
fz
recommended for 55 HRC (approx.)
1,15 1,40 1,40 1,90 1,90 2,30
0,45 0,55 0,55 0,60 0,60 0,70
0,40 0,45 0,45 0,55 0,55 0,65
0,30 0,35 0,35 0,45 0,45 0,50
NOTE: Use two effective teeth for feed calculations.
For materials above 45 HRC, we recommend adjusting the ae max to 55% of cutting diameter and using no more than 50% of Ap1 max.
While centre cutting is possible, we recommend using a ramp angle of 0.5°–1.0° to ensure smooth operation.
M130
