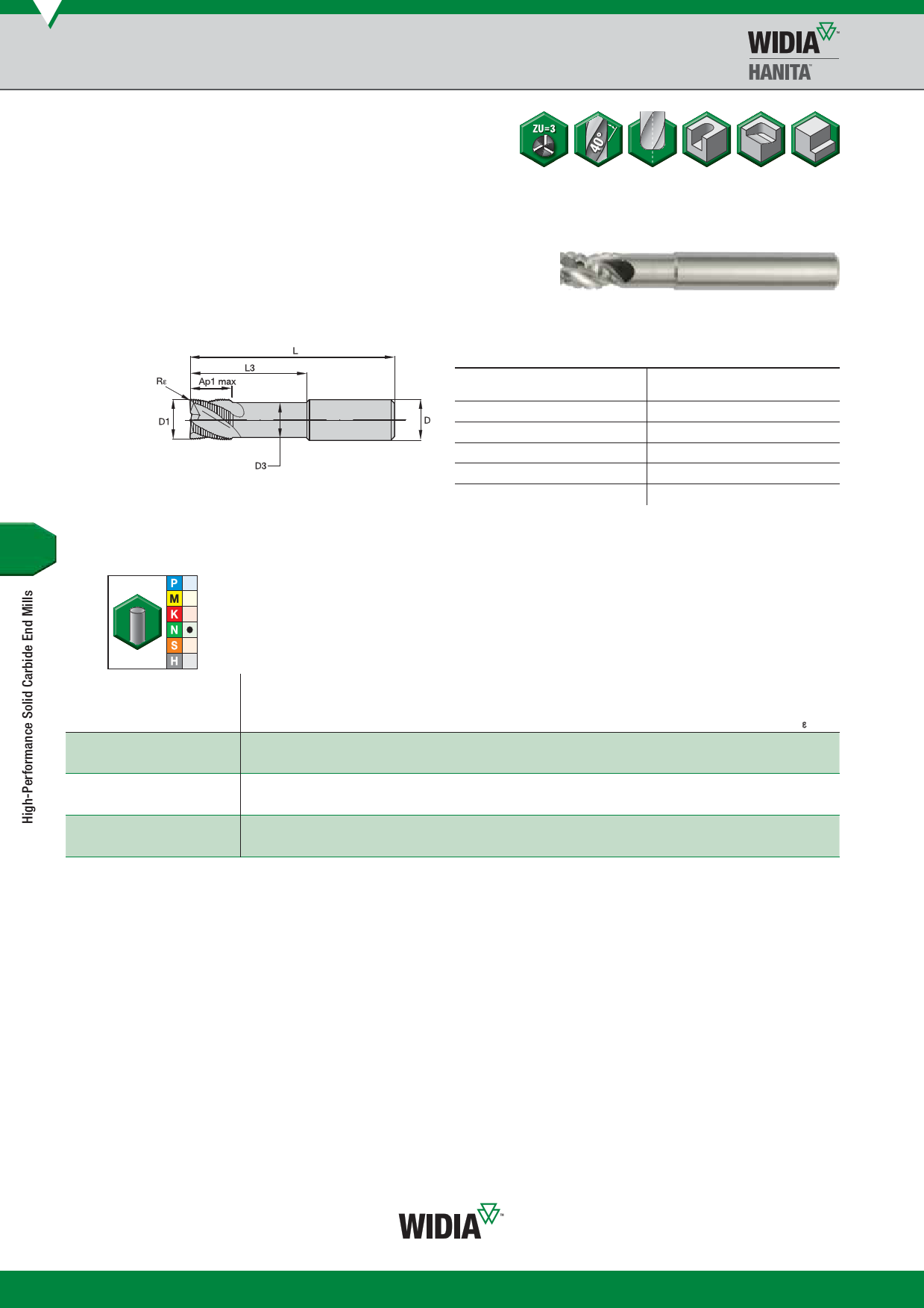

High-Performance Solid Carbide End Mills • Aluminium
Series 49N9
• Centre cutting.
• Chamfered pitch.
• Standard items listed. Additional styles
and coatings made-to-order.
Series 49N9
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance d11
-0,020/-0,080
-0,030/-0,105
-0,040/-0,130
-0,050/-0,160
-0,065/-0,195
D
)3
> 3–6
> 6–10
> 10–18
> 18–30
tolerance h6
+/-
0/0,006
0/0,008
0/0,009
0/0,011
0/0,013
first choice
alternate choice
graUdeNCUONACTOEADTED
length of cut
length
order # catalogue # D1 D
D3
Ap1 max
L3
L R
2510324 49N906002.. 6,0 6 5,00
8,00 18,00 57 0,25
2510325 49N908003.. 8,0 8 7,00
10,00
24,00 63 0,25
2510326 49N910004..
10,0 10
9,00
12,00
30,00 72 0,50
2510327 49N912005.. 12,0 12 11,00
15,00
36,00 83 0,50
2510328 49N916006.. 16,0 16 14,80
20,00
48,00 92 1,00
2510329 49N920007.. 20,0 20 18,70
24,00
60,00 104 1,00
O142
