Series 49G9
для размещения заказа - zakaz@widiahanita.ru

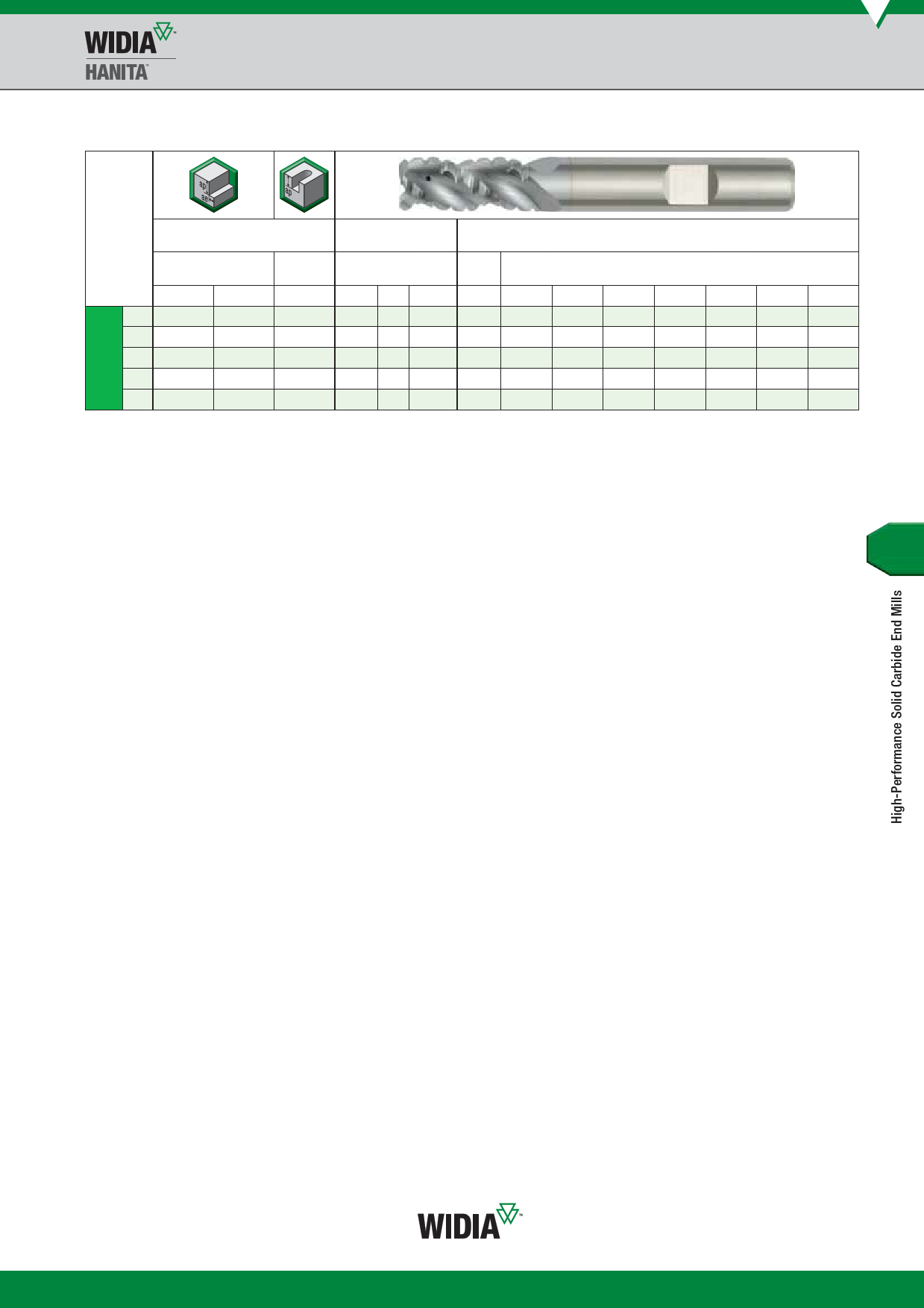

High-Performance Solid Carbide End Mills • Aluminium
Application Data • Series 49G9
Side Milling (A)
and Slotting (B)
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
B
Cutting Speed — vc
m/min
D1 — Diameter
ap min
max mm
6,0
8,0 10,0 12,0 16,0 18,0 20,0
1 1 x D 0,5 x D 1 x D 500 – 2000 fz 0,072 0,096 0,120 0,144 0,192 0,216 0,240
2 1 x D 0,5 x D 1 x D 500 – 1500 fz 0,065 0,086 0,108 0,130 0,173 0,194 0,216
N 3 1 x D 0,5 x D 1 x D 500 – 1500 fz 0,050 0,067 0,084 0,101 0,134 0,151 0,168
4 1 x D 0,5 x D 1 x D 400 – 750
fz 0,058 0,077 0,096 0,115 0,154 0,173 0,192
5 1 x D 0,5 x D 1 x D 250 – 1000 fz 0,065 0,086 0,108 0,130 0,173 0,194 0,216
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
zakaz@widiahanita.ru
www.widiahanita.ru
O149
