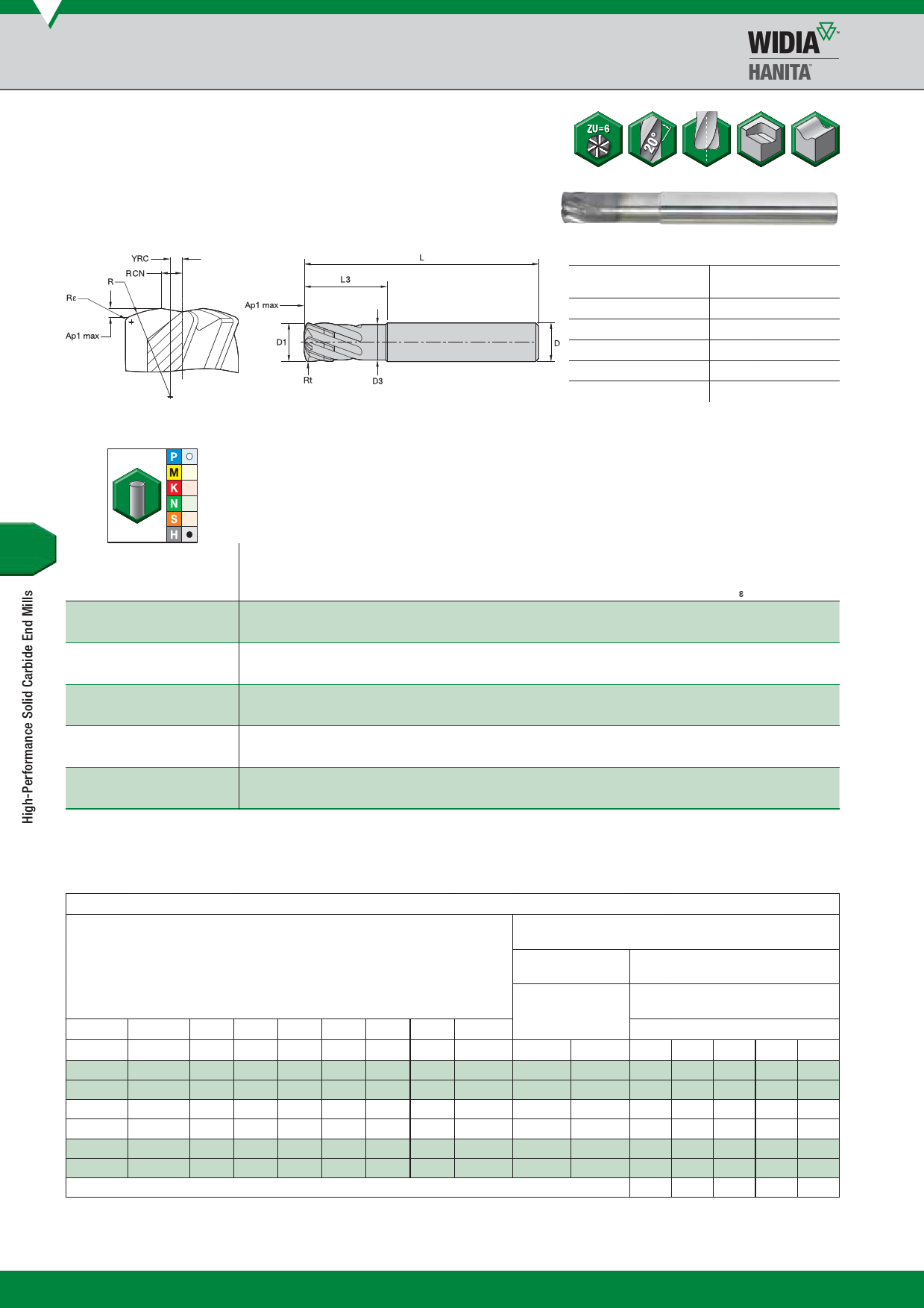

High-Performance Solid Carbide End Mills • Hard Materials
Series 70N6 71N6 • 37–52 HRC • Vision Plus™ X-Feed™
• Non-centre cutting.
• Standard items listed. Additional styles
and coatings made-to-order.
Series 70N6 71N6 • 37–52 HRC • Vision Plus X-Feed
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance e8
tolerance h6
D +/-
-0,014/-0,028
)3
0/0,006
-0,020/-0,038 > 3–6
0/0,008
-0,025/-0,047 > 6–10
0/0,009
-0,032/-0,059 > 10–18 0/0,011
-0,040/-0,073 > 18–30 0/0,013
first choice
alternate choice
graAdelTAiNlT-MiNT-M1 T1
AlTiN
length of cut
length
order # catalogue #
D1 D
D3
Ap1 max
L3
L R Rt
3745400 71N606002MT
6,0
6
5,50
0,32
9,00 57 0,38 0,62
3341346 70N606002MT
6,0
6
5,50
0,32 18,00 63 0,38 0,62
3745401 71N608003MT
8,0
8
7,50
0,42 12,00 63 0,50 0,83
3341348 70N608003MT
8,0
8
7,50
0,42 24,00 76 0,50 0,83
3745402 71N610004MT 10,0 10
9,00
0,53 15,00 72 0,63 1,04
3101466 70N610004MT 10,0 10
9,00
0,53 30,00 89 0,63 1,04
3745413 71N612005MT 12,0 12 11,00 0,63 18,00 83 0,75 1,24
3101467 70N612005MT 12,0 12 11,00 0,63 36,00 100 0,75 1,24
3484748 70N616006MT 16,0 16 15,00 0,84 48,00 110 1,00 1,66
3484749 70N620007MT 20,0 20 19,00 1,05 60,00 125 1,25 2,07
NOTE: YRC = distance from centre line to the crown of the R radius.
RCN = distance from centre line to the start of the cutting edge. This dimension can also help determine the minimum circle size when helical ramping.
R = the head radius size.
R = the shoulder radius or radius at the corner of the cutter.
Programming Data
Tool List 70N6
Ramping Guide for Circular and Linear Interpolation
Geometrical Parameters
Circular Interpolation
Linear Interpolation
diameter
[mm]
6
8
10
12
16
20
Ap1 max
[mm]
0,32
0,42
0,53
0,63
0,84
1,05
Rfm
[mm]
6
8
10
12
16
20
Rt
[mm]
0,62
0,83
1,04
1,24
1,66
2,07
Rc Xfm Yfm
[mm] [mm] [mm]
0,375 0,32 0,75
0,500 0,42 1,00
0,625 0,53 1,25
0,750 0,63 1,50
1,000 0,84 2,00
1,250 1,05 2,50
Recommended Feed
YD
[mm]
1,32
1,76
2,20
2,64
3,52
4,40
Number
utes
6
6
6
6
6
6
Allowed Range of
Hole Diameter
Calculated Length (mm) per Ramp Angle
Ramp Angle (degree)
Smallest Largest 1 2 3 4 5
8,64 12 18,12 9,06 6,03 4,52 3,61
11,52
16 24,16 12,08 8,05 6,03 4,82
14,4 20 30,20 15,09 10,06 7,54 6,02
17,28
24 36,24 18,11 12,07 9,05 7,23
23,04
32 48,31 24,15 16,09 12,06 9,64
28,8 40 60,39 30,19 20,11 15,08 12,05
100% 70% 50% 30% 10%
