Series 7525 • Vision Plus
для размещения заказа - zakaz@widiahanita.ru

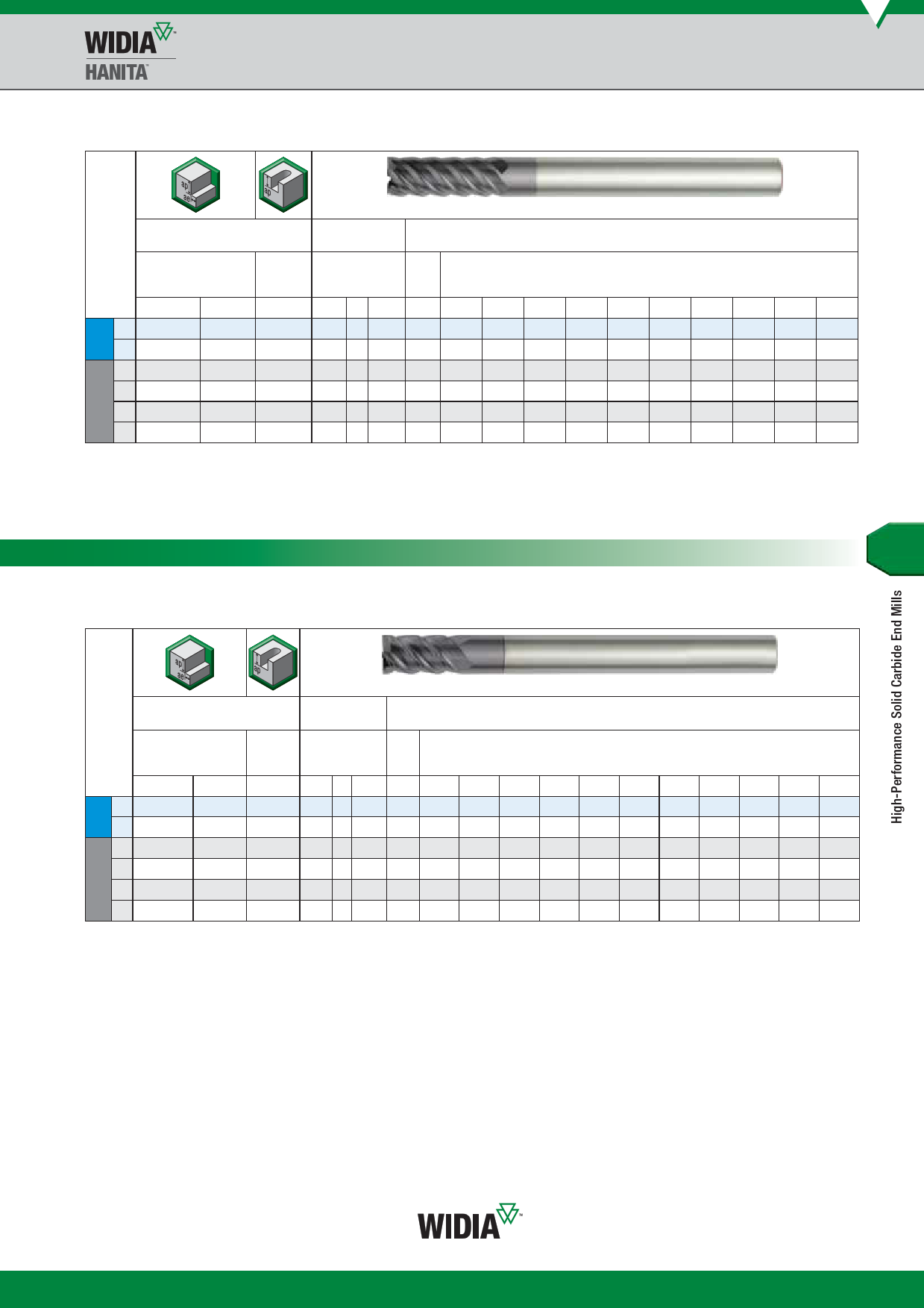

High-Performance Solid Carbide End Mills • Hard Materials
Application Data • Series 7525 • Vision Plus™
Side Milling (A)
and Slotting (B)
TiAlN
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
Cutting Speed
B — vc
m/min
D1 — Diameter
ap min
max mm 3,0 4,0 5,0 6,0 8,0 10,0 12,0 16,0 20,0 25,0
3
P
4
3xD
3xD
0,2 x D 0,5 x D 160 – 180
0,2 x D 0,3 x D 140 – 160
fz 0,019 0,026 0,033 0,040 0,055 0,067 0,077 0,096 0,111 0,125
fz 0,017 0,024 0,030 0,036 0,049 0,059 0,069 0,084 0,097 0,107
1 3 x D 0,2 x D 0,3 x D 120 – 140 fz 0,017 0,024 0,030 0,036 0,049 0,059 0,069 0,084 0,097 0,107
2
H
3
3xD
3xD
0,15 x D 0,2 x D
0,05 x D
–
0 – 130
70 – 100
fz 0,013 0,018 0,022 0,027 0,037 0,044 0,051 0,063 0,071 0,078
fz 0,010 0,014 0,018 0,021 0,029 0,035 0,041 0,051 0,059 0,067
4 3 x D 0,03 x D
–
50 – 70 fz 0,007 0,009 0,012 0,014 0,019 0,023 0,027 0,034 0,039 0,044
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group.
Higher value of cutting speed is used for nishing applications or for lower hardness (machinability) within group.
For better surface nish, reduce feed per tooth.
Series 7585 7595 • Vision Plus
Application Data • Series 7585 7595 • Vision Plus™
Side Milling (A)
and Slotting (B)
TiAlN
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
Cutting Speed
B — vc
m/min
D1 — Diameter
ap min
max mm 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0 25,0
3
P
4
1xD
1xD
0,4 x D 1 x D 120 – 160 fz 0,019 0,033 0,040 0,055 0,067 0,077 0,077 0,096 0,096 0,111 0,125
0,4 x D 0,75 x D 90 – 150 fz 0,017 0,030 0,036 0,049 0,059 0,069 0,069 0,084 0,084 0,097 0,107
1 1 x D 0,4 x D 0,75 x D 80 – 140 fz 0,017 0,030 0,036 0,049 0,059 0,069 0,069 0,084 0,084 0,097 0,107
2
H
3
1xD
1xD
0,3 x D 0,5 x D 70 – 120 fz 0,013 0,022 0,027 0,037 0,044 0,051 0,051 0,063 0,063 0,071 0,078
0,15 x D 0,3 x D 60 – 90 fz 0,010 0,018 0,021 0,029 0,035 0,041 0,041 0,051 0,051 0,059 0,067
4 1 x D 0,1 x D 0,15 x D 50 – 70 fz 0,007 0,012 0,014 0,019 0,023 0,027 0,027 0,034 0,034 0,039 0,044
NOTE: Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group.
Higher value of cutting speed is used for nishing applications or for lower hardness (machinability) within group.
For better surface nish, reduce feed per tooth.
