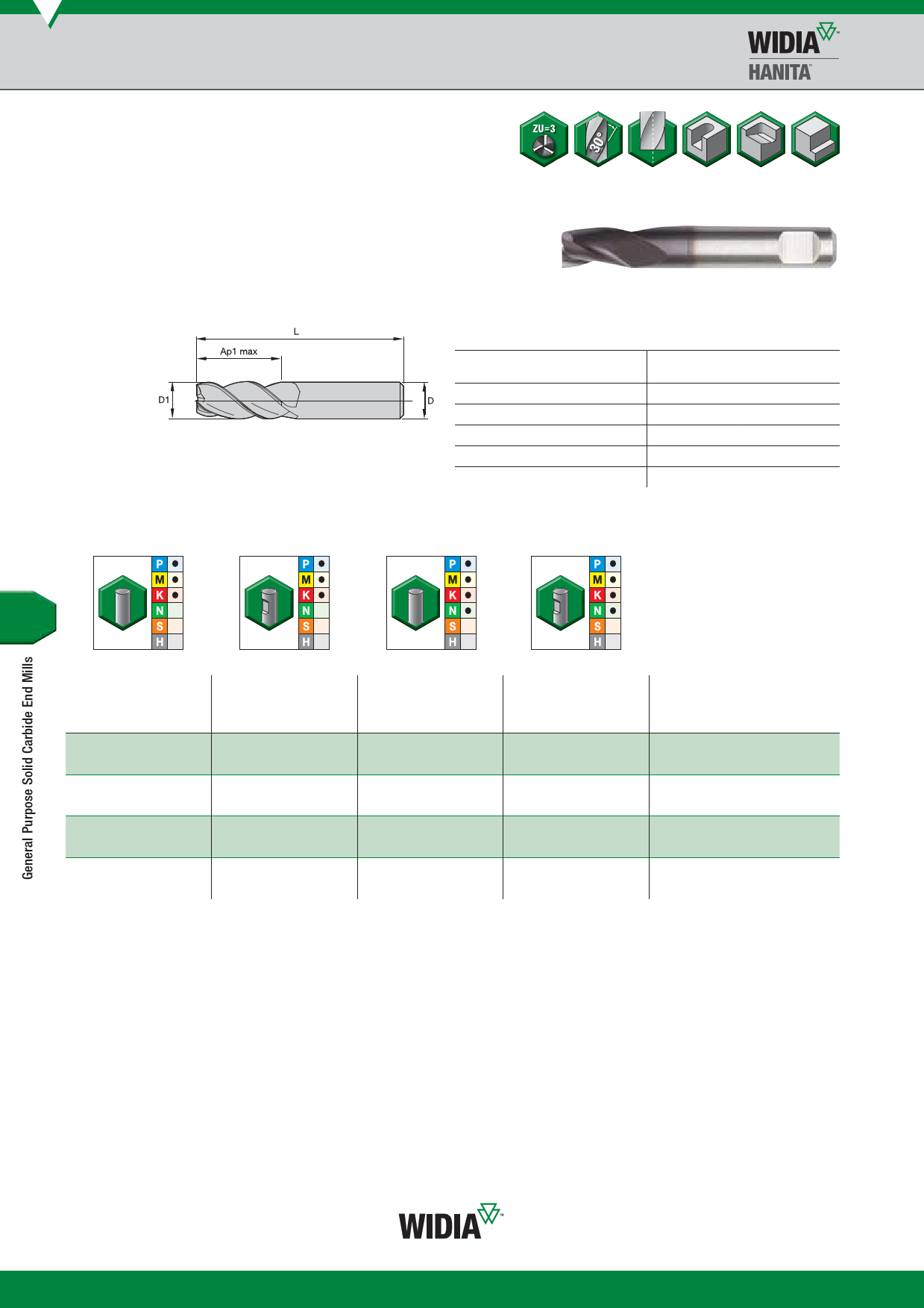

General Purpose Solid Carbide End Mills • Roughing/Finishing
Series 423002 323002 423001 323001 • NINA™
• Centre cutting.
• Standard items listed. Additional styles
and coatings made-to-order.
Series 423002 323002 423001 323001 • NINA
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance h10
+/-
D
0/0,04
)3
0/0,048
> 3–6
0/0,058
> 6–10
0/0,070
> 10–18
0/0,084
> 18–30
tolerance h6
+/-
0/0,006
0/0,008
0/0,009
0/0,011
0/0,013
first choice
alternate choice
K30F-DCF
K30F-DCF
K30F-TICN
K30F-TICN
grade K30F-DCF
TiAlN
order # catalogue #
grade K30F-DCF
TiAlN
order # catalogue #
grade K30F-TiCN
TiCN
order # catalogue #
grade K30F-TiCN
TiCN
order # catalogue #
length of cut length
D1 D Ap1 max
L
2627990 423002-000020 2343352 423001-000020 2627800 323002-000020 2336740 323001-000020 2,0 6
4,00
38
2628043 423002-000030 2343354 423001-000030 2627801 323002-000030 2336747 323001-000030 3,0 6
5,00
38
2628044 423002-000040 2343356 423001-000040 2627802 323002-000040 2336753 323001-000040 4,0 6
7,00
38
2628045 423002-000050 2343358 423001-000050 2627983 323002-000050 2336759 323001-000050 5,0 6
8,00
38
2628046 423002-000060 2343360 423001-000060 2627984 323002-000060 2336765 323001-000060 6,0 6
8,00
38
2628047 423002-000080 2343362 423001-000080 2627985 323002-000080 2336771 323001-000080 8,0 8
11,00
43
2628048 423002-000100 2343364 423001-000100 2627986 323002-000100 2336777 323001-000100 10,0 10
13,00
50
2628049 423002-000120 2343366 423001-000120 2627987 323002-000120 2336783 323001-000120 12,0 12
15,00
55
NOTE: For application data, please see page P9.
