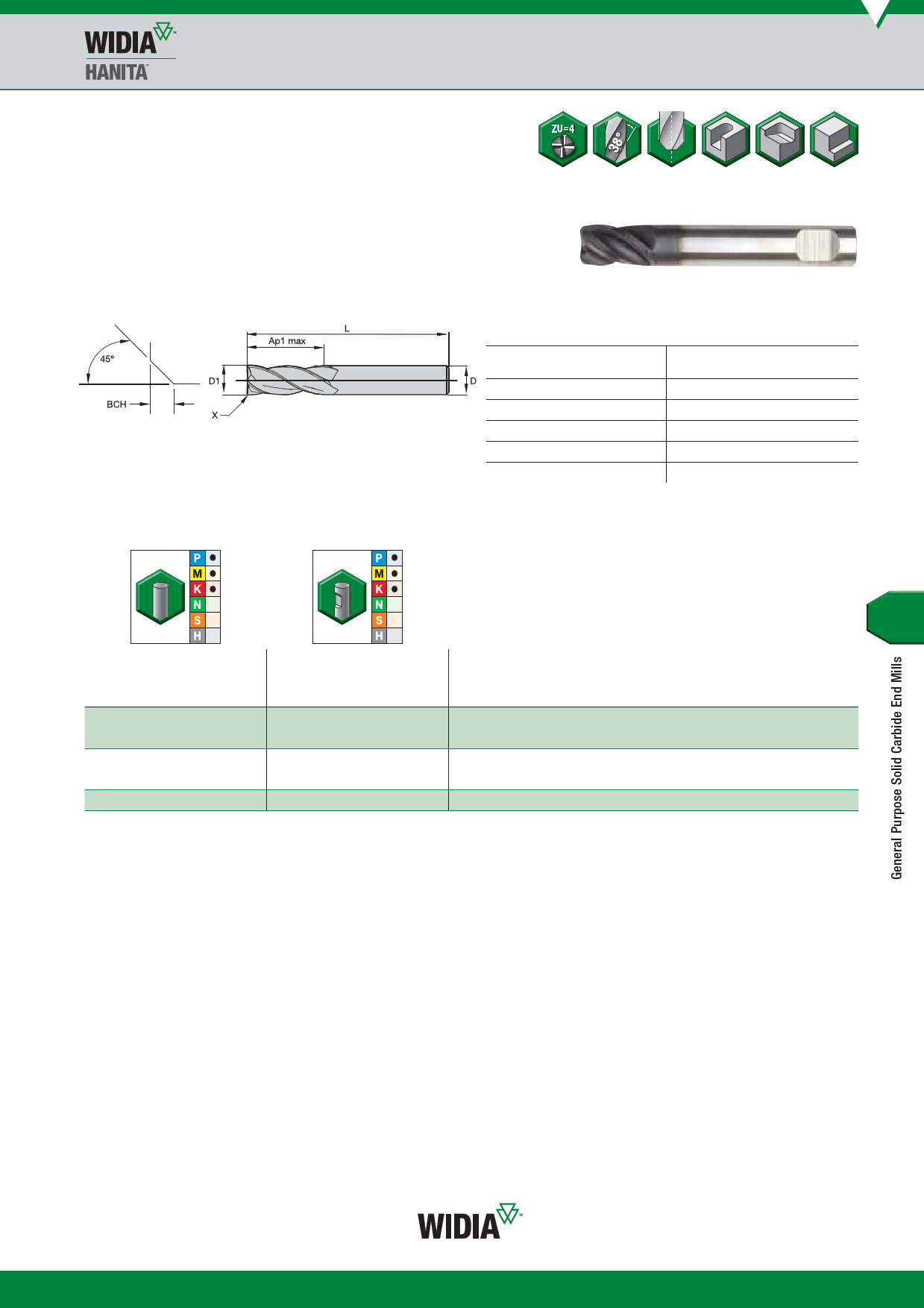

General Purpose Solid Carbide End Mills • Roughing/Finishing
Series 423004 423003 • NINA™
• Centre cutting.
• HPC.
• Standard items listed. Additional styles
and coatings made-to-order.
Detail X
Series 423004 423003 • NINA
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance h10
+/-
D
0/0,04
)3
0/0,048
> 3–6
0/0,058
> 6–10
0/0,070
> 10–18
0/0,084
> 18–30
tolerance h6
+/-
0/0,006
0/0,008
0/0,009
0/0,011
0/0,013
first choice
alternate choice
graKde30KF3-0DFC-HDPCHP
AlTiN
order # catalogue #
graKde30KF3-0DFC-HDPCHP
AlTiN
order # catalogue #
length of cut
length
D1 D
Ap1 max
L BCH
3657761 423004-000040
3657756 423003-000040
4,0
6
7,00
38 0,40
3657762 423004-000060
3657757 423003-000060
6,0
6
8,00
38 0,40
3657763 423004-000080
3657758 423003-000080
8,0
8
11,00
43 0,40
3657764 423004-000100 3657759 423003-000100 10,0 10
13,00
50 0,50
3657765 423004-000120 3657760 423003-000120 12,0 12
15,00
55 0,50
NOTE: For application data, please see page P9.
