Modular Drills

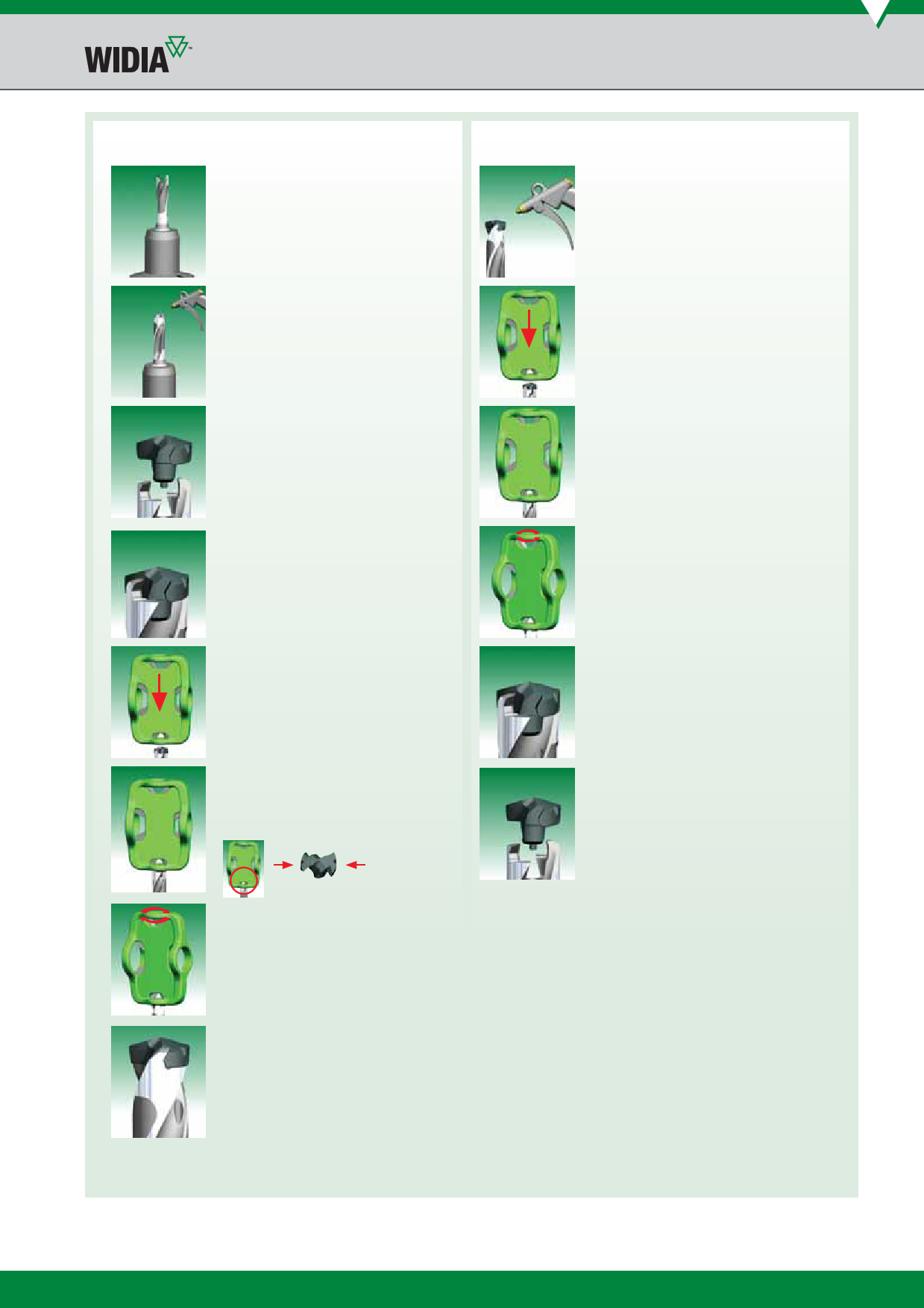

Application Data • Victory™ TOP DRILL M1™
How to attach inserts
1) Fix drill holder on arbour. For insert exchange,
fix arbour on the machine or set on tool
presetter.
How to detach inserts
1) Remove dust from insert using air blast.
2) Remove dust using air blast.
2) Set the wrench properly.*
3) Put insert into drill holder. (Use gloves to
protect your hands.)
3) Fit the wrench to insert slot.
4) Turn lightly in a clockwise direction. (Use
gloves to protect your hands.)
4) Turn the wrench in an anti-clockwise direction.
5) Set the wrench properly.*
5) Once lock is released, insert can be turned with
fingers. (Use gloves to protect your hands.)
6) Make sure the wrench fits with the insert slot
for the wrench. (Is the wrench unfixed from
the slot?)
6) Remove insert. (Use gloves to protect
your hands.)
Slot for wrench
7) Slowly turn the wrench in a clockwise
direction.
*To order the TDM1 Wrench, please use order
number 3861623 and catalogue number 170.315.
8) Complete.
