Hole Finishing
ROTAFLEX™ High-Performance Boring Systems

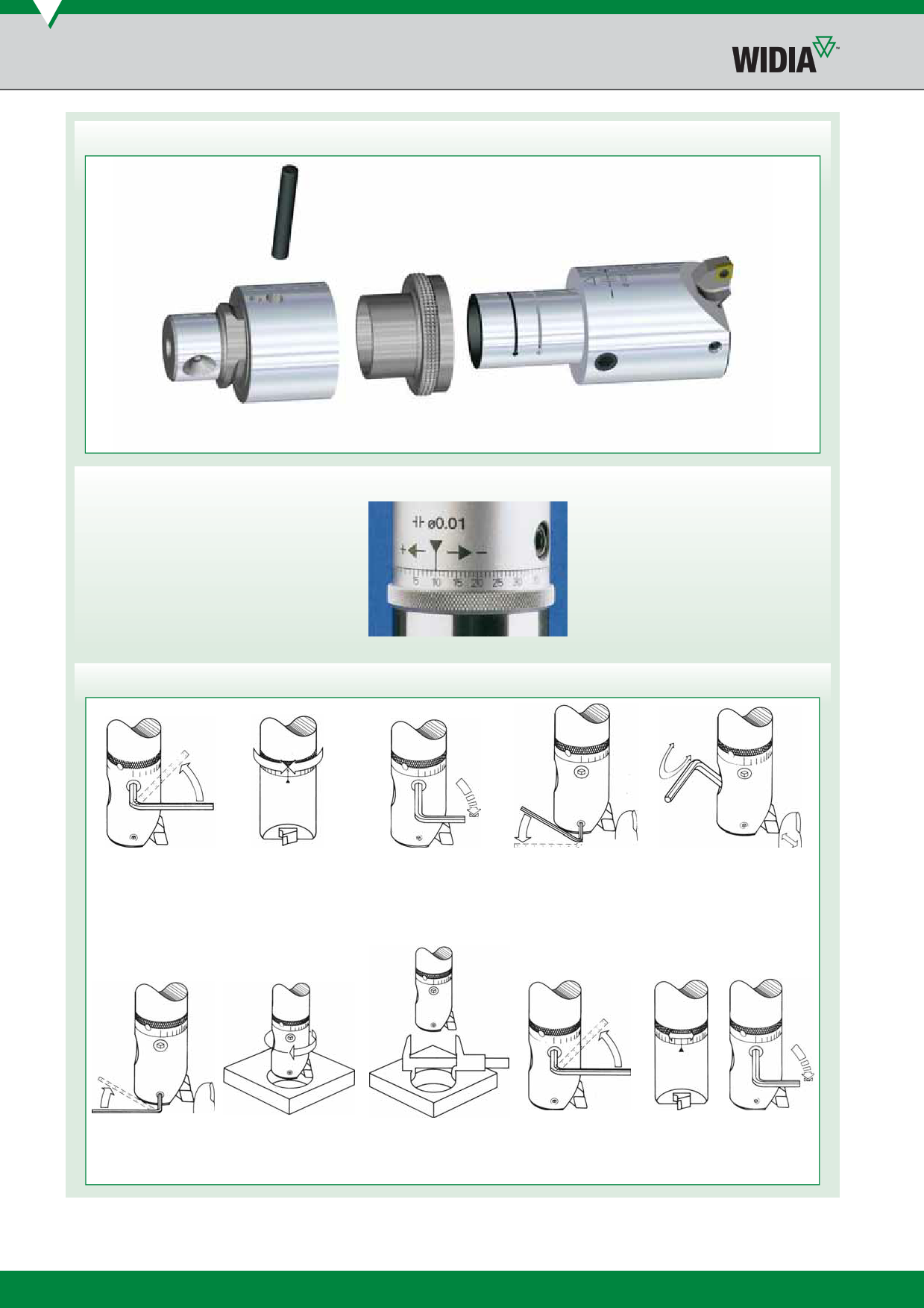

Design Principle
Basic adaptor
Eccentric bushing
Eccentric bushing for ne adjustment
Regular fine boring heads have a threaded
spindle as an adjustment mechanism. In
this situation, spindle inaccuracy can cause
backlash and require extra effort during setup.
The ROTAFLEX eccentric bushing is easy to
use, and machining forces are transmitted
via a larger surface, ensuring a consistent
diameter during machining.
Adjustment
Boring bar adaptor
After rough adjustment of the insert
holder, the easy-to-read scale enables
fine adjustment to reach precisely the
diameter needed. Here, no parallax
errors occur when reading the scale.
Unlock fine
adjustment ring
Set fine
adjustment
to zero
Lock fine
adjustment ring
Unlock insert
holder
Coarse adjustment
on pre-set equipment
Lock insert holder
W68
Control cut
Measure
Unlock fine
adjustment ring
Readjust
Lock fine
adjustment ring
