High-Performance Taps

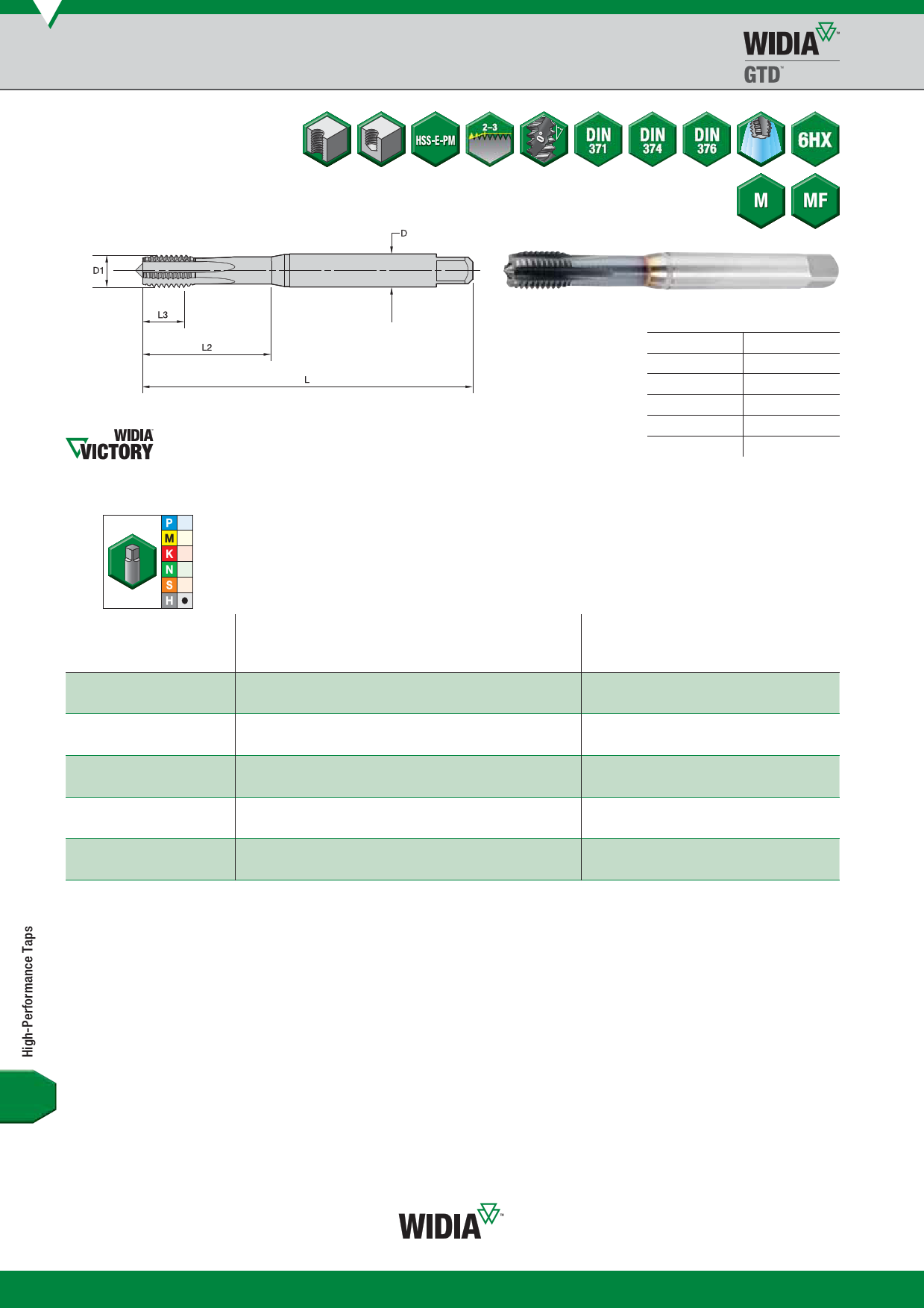

Victory™ Straight-Flute HSS-E-PM Taps • Blind and Through Holes
• WS32MG TiCN for
steel 44–55 HRC.
Shank Tolerance
D mm
tolerance h9
1–3 +0, -0,025
>3–6 +0, -0,030
>6–10
+0, -0,036
>10–18
+0, -0,043
>18–30
+0, -0,052
GT06 • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 • For Hard Steel
first choice
alternate choice
graWdeSW32SM3G2MG
TiCN
order # catalogue #
4159915 GT065003
4159918 GT065006
4159913 GT065001
4159919 GT065007
4159914 GT065002
4159920 GT065008
4159916 GT065004
4159921 GT065009
4159922 GT065010
4159917 GT065005
D1 size
M6 X 1
M8 X 1
M8 X 1,25
M10 X 1
M10 X 1,5
M12 X 1,5
M12 X 1,75
M14 X 1,5
M16 X 1,5
M16 X 2
metric dimensions
L L3 L2 D
80 10 30 6,0
90 10 35 8,0
90 14 35 8,0
90 10 35 10,0
100 16 39 10,0
100 15 —
9,0
110 18 —
9,0
100 15 — 11,0
100 15 — 12,0
110 22 — 12,0
number
of utes
4
5
5
5
5
5
5
6
6
6
dimension
standard
DIN 371
DIN 374
DIN 371
DIN 374
DIN 371
DIN 374
DIN 376
DIN 374
DIN 374
DIN 376
class
of t
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
Y56
