• GP6520 TiCN for cast iron
and cast aluminium.
для размещения заказа - zakaz@widiahanita.ru
High-Performance Taps

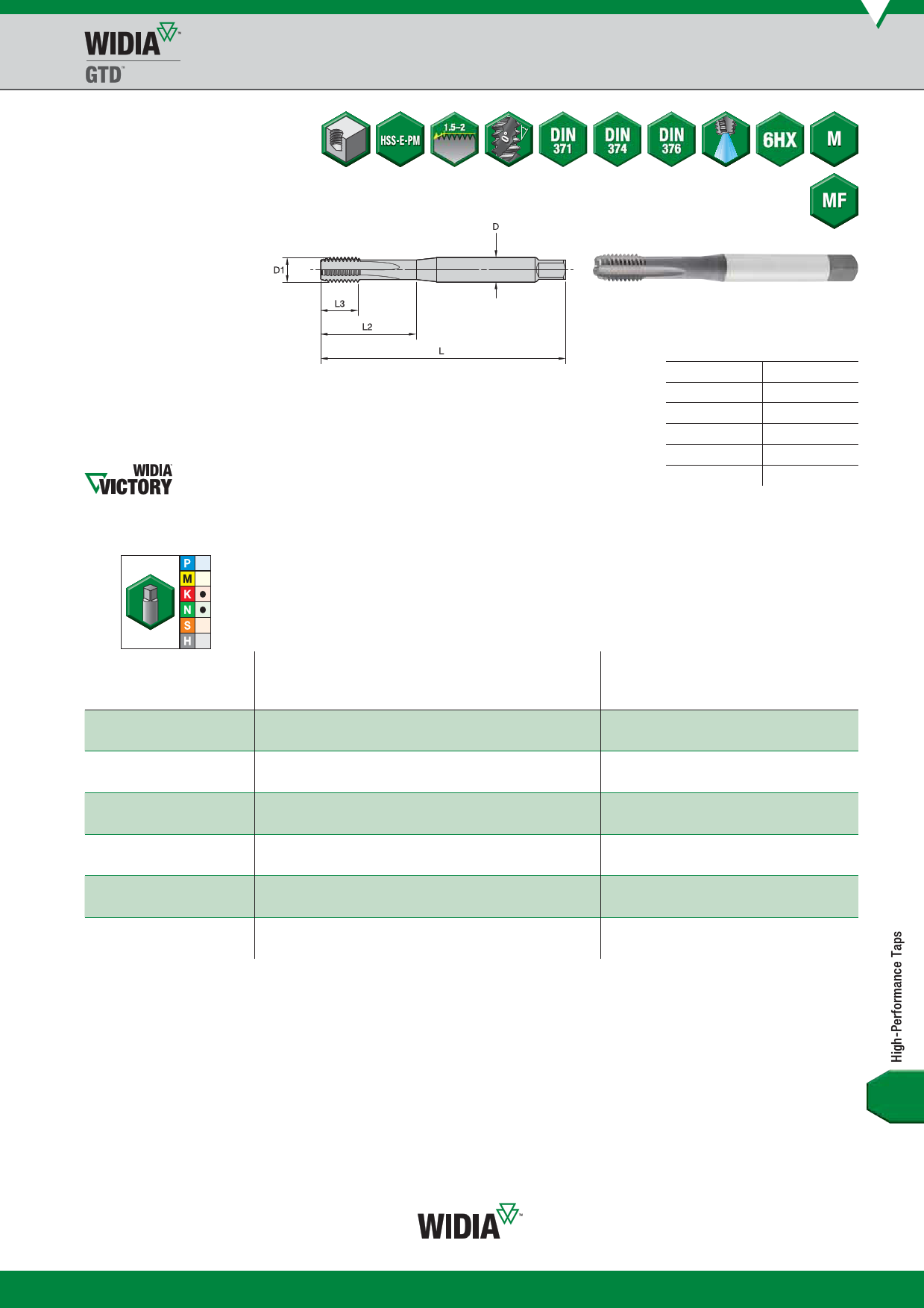

Victory™ Straight-Flute HSS-E-PM Taps • Threading Close to the Bottom in Blind Holes
Shank Tolerance
D mm
tolerance h6
>3–6
+0, -0,008
>6–10
+0, -0,009
>10–18
+0, -0,011
>18–30
+0, -0,013
>30–50
+0, -0,016
GT43 • Form E Bottoming Chamfer • Through Coolant • Metric DIN 371, 374, and 376 • For Cast Iron
and Cast Aluminium
first choice
alternate choice
graGdeP6G5P260520
TiCN
order # catalogue #
4154283 GT435001
4154284 GT435002
4154285 GT435003
4154286 GT435004
4154289 GT435007
4154287 GT435005
4154290 GT435008
4154288 GT435006
4154291 GT435009
5408405 GT435010
5408406 GT435011
5408407 GT435012
D1 size
M5 X 0,8
M6 X 1
M8 X 1,25
M10 X 1,5
M12 X 1,5
M12 X 1,75
M14 X 1,5
M14 X 2
M16 X 1,5
M16 X 2
M18 X 2,5
M20 X 2,5
metric dimensions
L L3 L2 D
70 10 25 6,0
80 10 30 6,0
90 13 35 8,0
100 15 39 10,0
100 15 39 9,0
110 18 44 9,0
100 15 47 11,0
110 20 52 11,0
100 15 46 12,0
110 20 51 12,0
125 25 58 14,0
140 25 64 16,0
number
of utes
3
4
4
4
4
4
4
4
4
4
4
4
dimension
standard
DIN 371
DIN 371
DIN 371
DIN 371
DIN 374
DIN 376
DIN 374
DIN 376
DIN 374
DIN 376
DIN 376
DIN 376
class
of t
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
6HX
