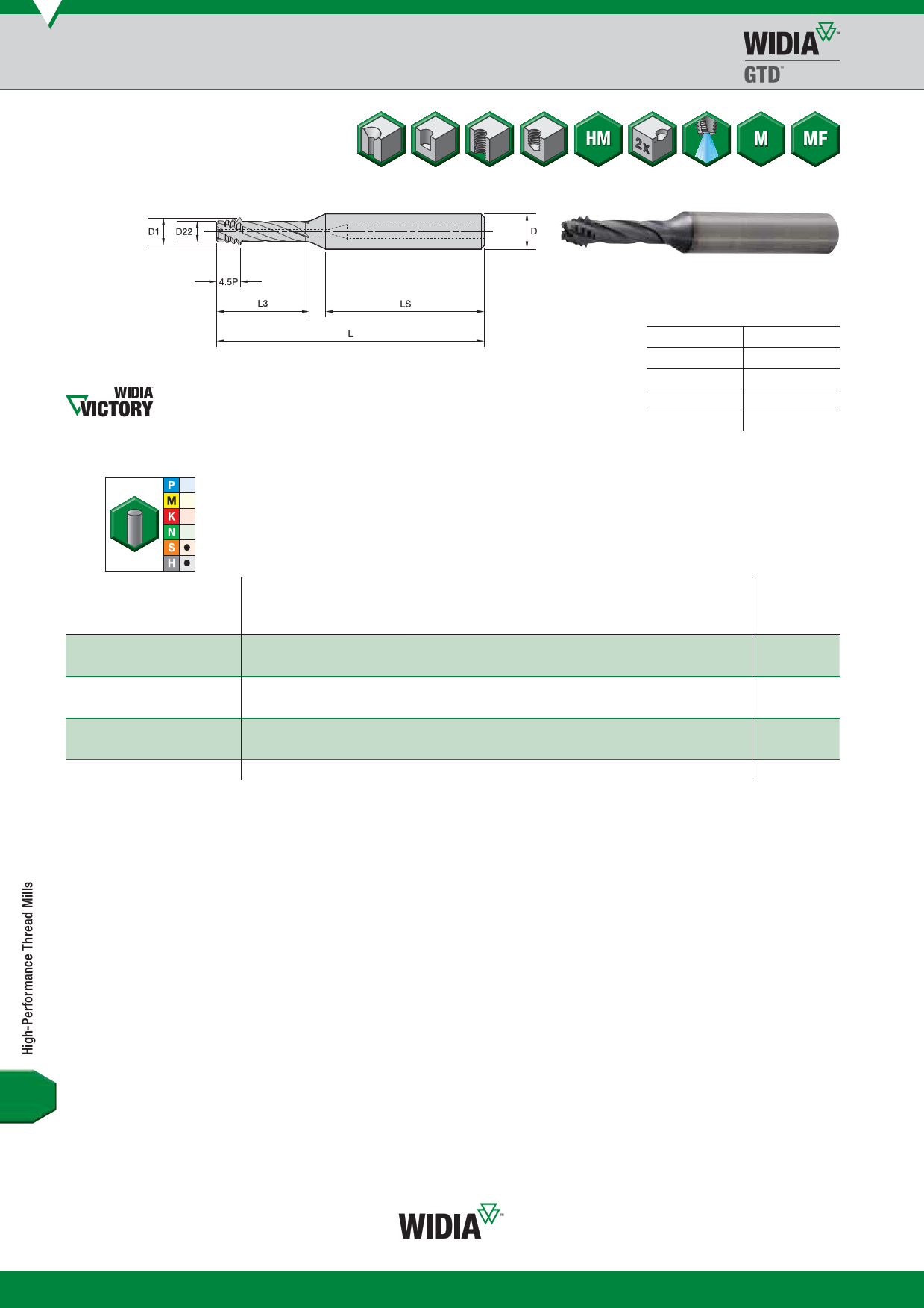

High-Performance Thread Mills
Victory™ Solid Carbide Thread Mills • Blind and Through Holes
GTM41 • Through Coolant • Left Hand • Metric and Metric Fine
Shank Tolerance
D mm
tolerance h6
6 +0, -0,008
8–10 +0, -0,009
12–18
+0, -0,011
20–30
+0, -0,013
first choice
alternate choice
graWdeUW16UP1V6PV
TiAlN+MoS2
metric dimensions
cutting
order # catalogue #
D1 size
D1 D22 L3
L LS
D
edges
4138575 GTM415041
M6X1
4,51 3,41 16,5 60 36
8,0
3
4138577 GTM415042
M7X1
4,51 3,41 16,5 60 36
8,0
3
4138579 GTM415043
M8X1.25 6,23 4,91 21,9 71 40 10,0
4
4138581 GTM415044
M9X1.25 6,23 4,91 21,9 71 40 10,0
4
4138583 GTM415045
M10X1.5 7,75 6,11 26,3 76 40 10,0
4
4138585 GTM415046
M11X1.5 7,75 6,11 26,3 76 40 10,0
4
4138597 GTM415047
M12X1.5 9,17 7,21 32,4 86 45 12,0
4
