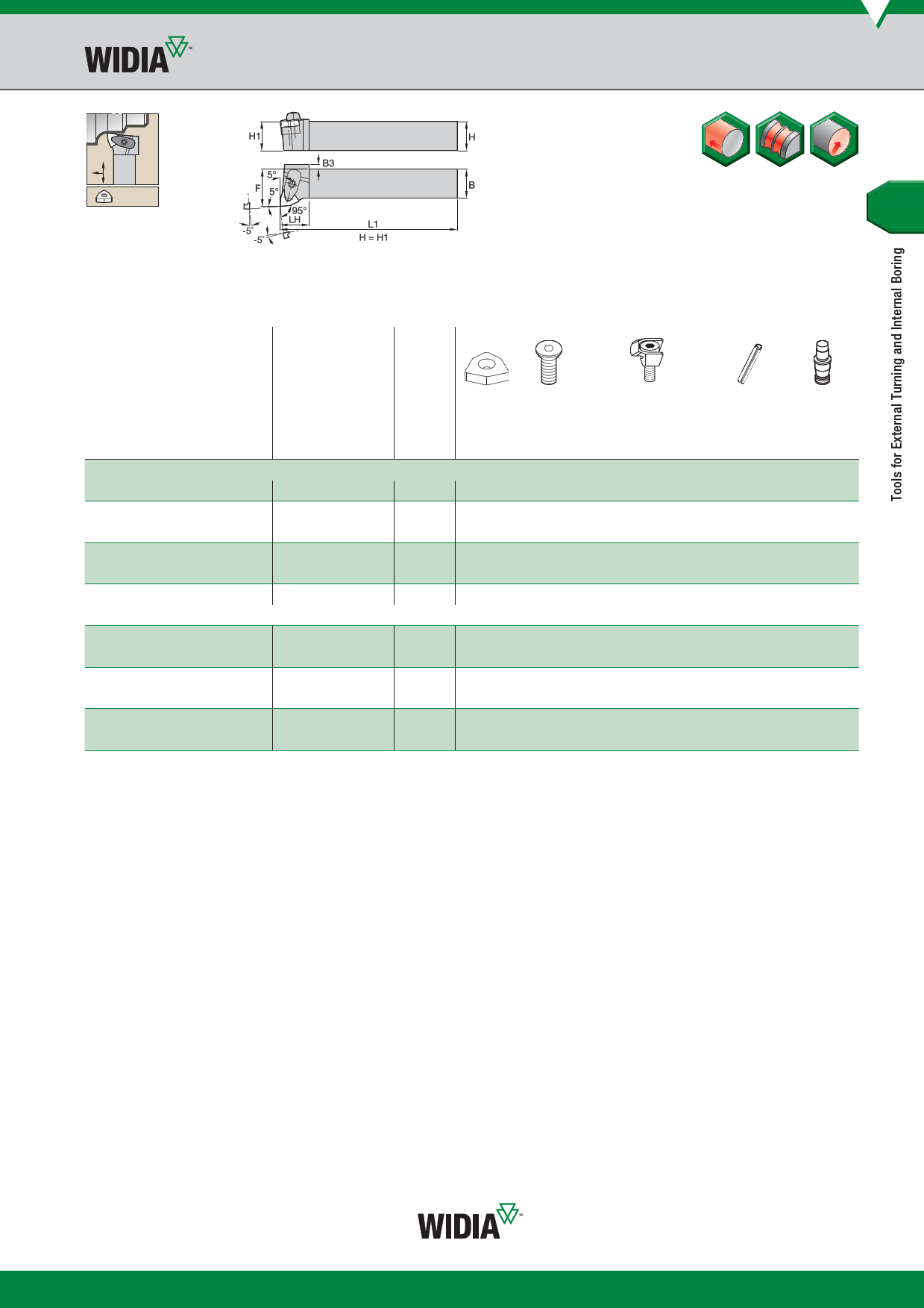

D-Style Clamping Toolholders for Negative Inserts
See pages B99–B105
for inserts.
DWLN 95°
gage
order number catalogue number H B F L1 LH B3 insert
shim
shim Torx clamp Torx slotted
screw Plus assembly Plus
pin
optional
lock pin
right hand
5696757 DWLNR2020K06KC04 20 20 25,0 125 31,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M KLM34L9IP
5696758 DWLNR2020K08KC04 20 20 25,0 125 33,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696759 DWLNR2525M06KC04 25 25 32,0 150 25,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M KLM34L9IP
5696760 DWLNR2525M08KC04 25 25 32,0 150 25,0 4,0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696761 DWLNR3225P08KC04 32 25 32,0 170 25,0 4,0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696762 DWLNR3232P08KC04 32 32 40,0 170 25,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15IP SSP025016M KLM4615IP
left hand
5696751 DWLNL2020K06KC04 20 20 25,0 125 31,0 — WN..060408 IWSN322 KMSP39IP 15 IP CM234R ASSY 15 IP SSP025016M KLM34L9IP
5696752 DWLNL2020K08KC04 20 20 25,0 125 33,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696753 DWLNL2525M06KC04 25 25 32,0 150 25,0 — WN..060408 IWSN322 KMSP315IP 15 IP CM234R ASSY 15 IP SSP025016M KLM34L9IP
5696754 DWLNL2525M08KC04 25 25 32,0 150 25,0 4,0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696755 DWLNL3225P08KC04 32 25 32,0 170 25,0 4,0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
5696756 DWLNL3232P08KC04 32 32 40,0 170 25,0 — WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY 15 IP SSP025016M KLM4615IP
