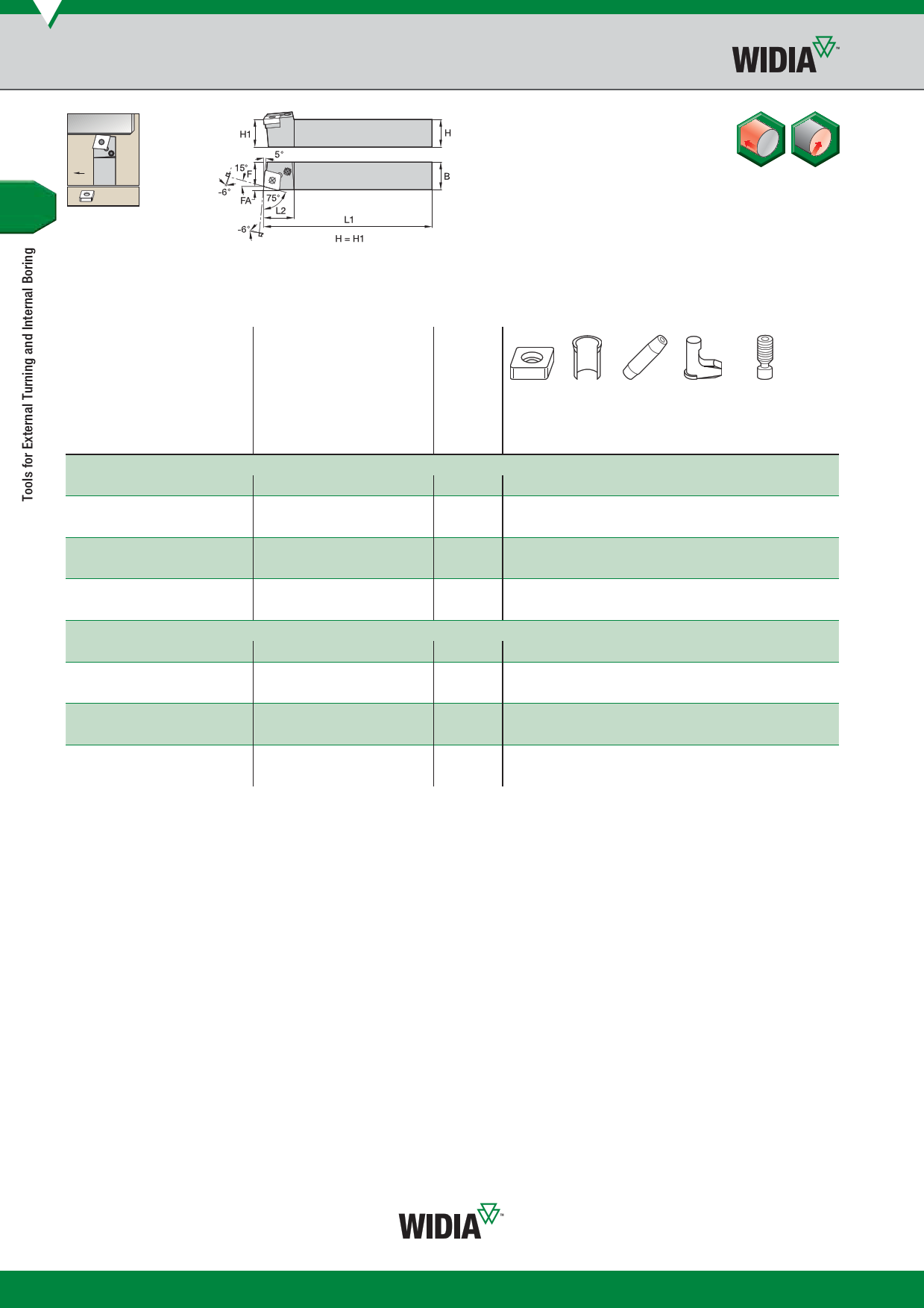

P-Style Clamping Toolholders for Negative Inserts
See pages B30–B46
for inserts.
PCBN 75°
order number catalogue number
right hand
3878361
PCBNR2020K12
3878356
PCBNR2525M12
3878366
PCBNR2525M16
3878367
PCBNR3225P16
3878363
PCBNR3232P16
3878358
PCBNR3232P19
3878364
PCBNR4040S19
left hand
3878360
PCBNL2020K12
3878354
PCBNL2525M12
3878365
PCBNL2525M16
3878359
PCBNL3225P16
3878355
PCBNL3232P16
3878357
PCBNL3232P19
3878362
PCBNL4040S19
H B F L1 L2 FA
gage
insert
shim
shim
pin
20 20 17,0 125 26,0 3,1 CN..120408 512.112 513.023
25 25 22,0 150 26,0 3,1 CN..120408 512.112 513.023
25 25 22,0 150 26,0 4,2 CN..160612 512.117 513.025
32 25 22,0 170 28,0 4,2 CN..160612 512.117 513.025
32 32 27,0 170 38,0 4,2 CN..160612 512.117 513.025
32 32 27,0 170 40,0 4,6 CN..190612 512.123 513.033
40 40 35,0 250 38,0 4,6 CN..190612 512.123 513.033
20 20 17,0 125 26,0 3,1 CN..120408 512.112 513.023
25 25 22,0 150 26,0 3,1 CN..120408 512.112 513.023
25 25 22,0 150 26,0 4,2 CN..160612 512.117 513.025
32 25 22,0 170 28,0 4,2 CN..160612 512.117 513.025
32 32 27,0 170 38,0 4,2 CN..160612 512.117 513.025
32 32 27,0 170 40,0 4,6 CN..190612 512.123 513.033
40 40 35,0 250 38,0 4,6 CN..190612 512.123 513.033
punch
pin
515.018
515.018
515.022
515.022
515.022
515.022
515.022
515.018
515.018
515.022
515.022
515.022
515.022
515.022
lever
511.023
511.023
511.025
511.025
511.025
511.033
511.033
511.023
511.023
511.025
511.025
511.025
511.033
511.033
lever
screw
514.123
514.123
514.125
514.125
514.125
514.133
514.133
514.123
514.123
514.125
514.125
514.125
514.133
514.133
Torx
Plus
15 IP
15 IP
15 IP
15 IP
15 IP
25 IP
25 IP
15 IP
15 IP
15 IP
15 IP
15 IP
25 IP
25 IP
C20
