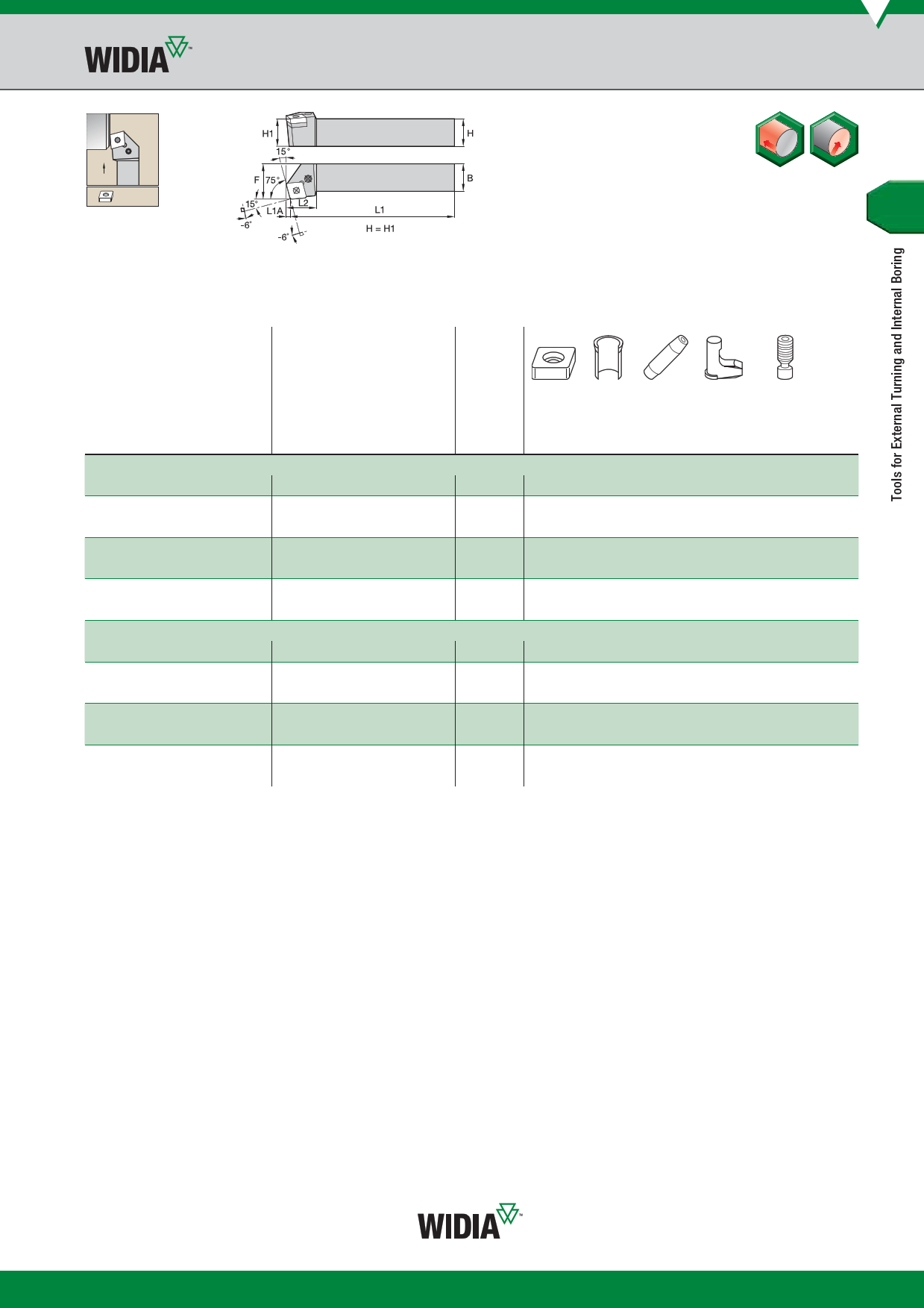

P-Style Clamping Toolholders for Negative Inserts
See pages B30–B46
for inserts.
PCKN 75°
order number catalogue number
right hand
3878372
PCKNR2020K12
3878370
PCKNR2525M12
3878374
PCKNR2525M16
3878375
PCKNR3225P16
3899889
PCKNR3232P16
3878371
PCKNR3232P19
3879707
PCKNR4040S19
left hand
3878373
PCKNL2020K12
3878369
PCKNL2525M12
3878377
PCKNL2525M16
3878376
PCKNL3225P16
3899888
PCKNL3232P16
3878368
PCKNL3232P19
3878378
PCKNL4040S19
H B F L1 L2 L1A
gage
insert
shim
shim
pin
20 20 25,0 125 23,0 3,1 CN..120408 512.112 513.023
25 25 32,0 150 23,0 3,1 CN..120408 512.112 513.023
25 25 32,0 150 30,0 3,8 CN..160612 512.117 513.025
32 25 32,0 170 30,0 3,8 CN..160612 512.117 513.025
32 32 40,0 170 38,0 3,8 CN..160612 512.117 513.025
32 32 40,0 170 40,0 4,6 CN..190612 512.123 513.033
40 40 50,0 250 36,0 4,6 CN..190612 512.123 513.033
20 20 25,0 125 23,0 3,1 CN..120408 512.112 513.023
25 25 32,0 150 23,0 3,1 CN..120408 512.112 513.023
25 25 32,0 150 30,0 3,8 CN..160612 512.117 513.025
32 25 32,0 170 30,0 3,8 CN..160612 512.117 513.025
32 32 40,0 170 38,0 3,8 CN..160612 512.117 513.025
32 32 40,0 170 40,0 4,6 CN..190612 512.123 513.033
40 40 50,0 250 36,0 4,6 CN..190612 512.123 513.033
punch
pin
515.018
515.018
515.022
515.022
515.022
515.022
515.022
515.018
515.018
515.022
515.022
515.022
515.022
515.022
lever
511.023
511.023
511.025
511.025
511.025
511.033
511.033
511.023
511.023
511.025
511.025
511.025
511.033
511.033
lever
screw
514.123
514.123
514.125
514.125
514.125
514.133
514.133
514.123
514.123
514.125
514.125
514.125
514.133
514.133
Torx
Plus
15 IP
15 IP
15 IP
15 IP
—
25 IP
25 IP
15 IP
15 IP
15 IP
15 IP
—
25 IP
25 IP
