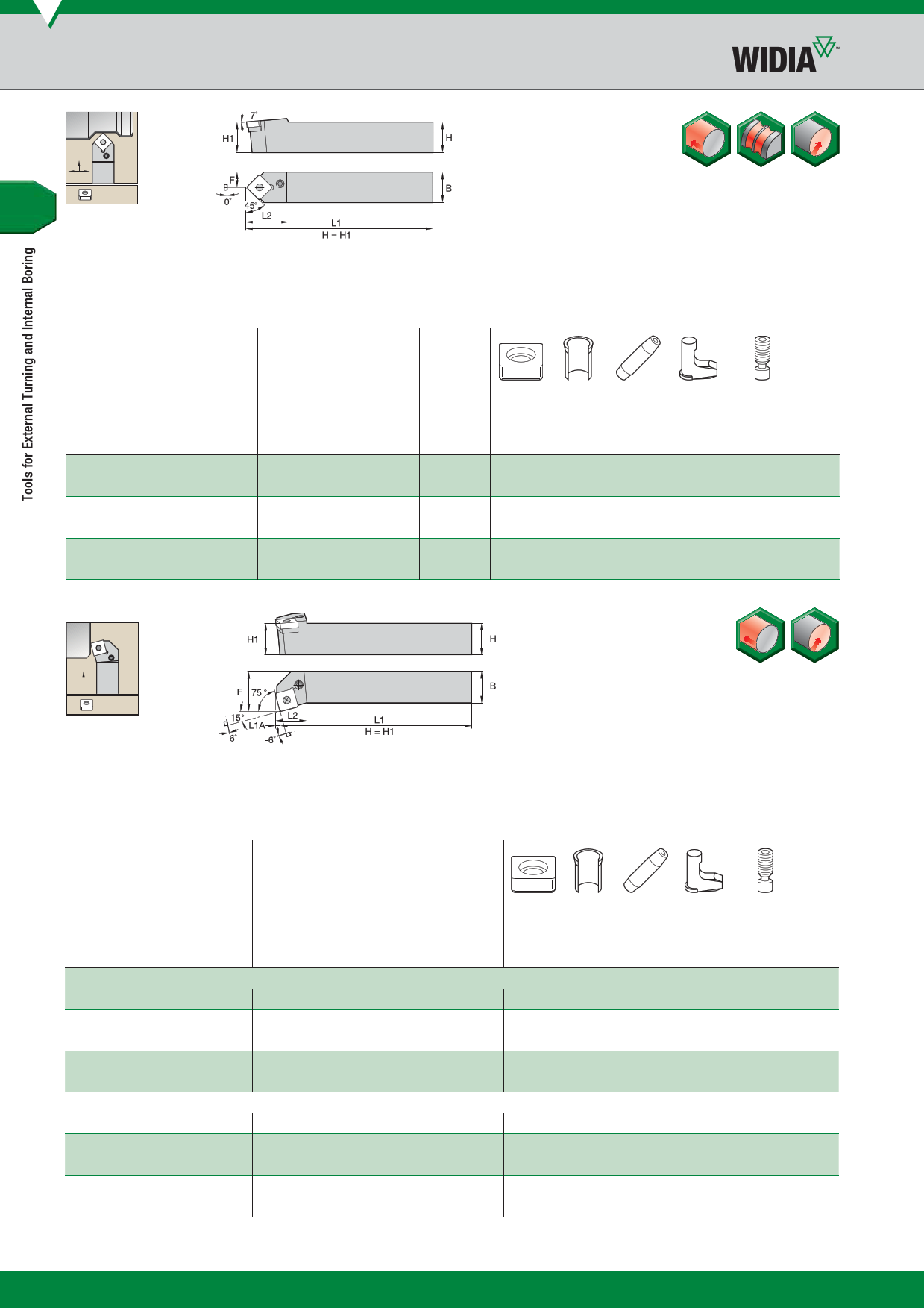

P-Style Clamping Toolholders for Negative Inserts
See pages B68–B80
for inserts.
PSDN 45°
order number catalogue number H B F L1 L2
gage
insert
3879336
PSDNN1616H09 16 16 8,0 100 20,0 SN..090308
3879335
PSDNN2020K12 20 20 10,0 125 26,0 SN..120408
3879337
PSDNN2525M12 25 25 12,5 150 26,0 SN..120408
3900160
PSDNN3225P15 32 25 12,5 170 33,0 SN..150612
3900161
PSDNN3232P15 32 32 16,0 170 33,0 SN..150612
3879338
PSDNN4040S25 40 40 20,0 250 47,0 SN..250724
shim
512.053
512.063
512.063
512.025
512.025
512.092
shim
pin
513.019
513.023
513.023
513.025
513.025
513.038
punch
pin
515.018
515.018
515.018
515.022
515.022
515.028
lever
511.018
511.023
511.023
511.025
511.025
511.038
lever
screw
514.118
514.123
514.123
514.125
514.125
514.138
Torx
Plus
10 IP
15 IP
15 IP
15 IP
15 IP
30 IP
See pages B68–B80
for inserts.
PSKN 75°
order number catalogue number H B F L1 L2 L1A
gage
insert
right hand
3879340
PSKNR2020K12 20 20 25,0 125 23,0 3,1 SN..120408
3879341
PSKNR2525M12 25 25 32,0 150 23,0 3,1 SN..120408
3879708
PSKNR2525M15 25 25 32,0 150 32,0 3,8 SN..150612
3879342
PSKNR3232P19 32 32 40,0 170 37,5 4,6 SN..190612
3879710
PSKNR4040S19 40 40 50,0 250 37,5 4,6 SN..190612
left hand
3879709
PSKNL1616H09 16 16 20,0 100 20,0 2,2 SN..090308
3879343
PSKNL2020K12 20 20 25,0 125 23,0 3,1 SN..120408
3879339
PSKNL2525M12 25 25 32,0 150 23,0 3,1 SN..120408
3879344
PSKNL3232P19 32 32 40,0 170 37,5 4,6 SN..190612
3879345
PSKNL4040S19 40 40 50,0 250 37,5 4,6 SN..190612
shim
shim
pin
512.063
512.063
512.025
512.083
512.083
513.023
513.023
513.025
513.033
513.033
512.053
512.063
512.063
512.083
512.083
513.019
513.023
513.023
513.033
513.033
punch
pin
515.018
515.018
515.022
515.022
515.022
515.018
515.018
515.018
515.022
515.022
lever
511.023
511.023
511.025
511.033
511.033
511.018
511.023
511.023
511.033
511.033
C26
lever
screw
514.123
514.123
514.125
514.133
514.133
514.118
514.123
514.123
514.133
514.133
Torx
Plus
15 IP
15 IP
15 IP
25 IP
25 IP
10 IP
15 IP
15 IP
25 IP
25 IP
