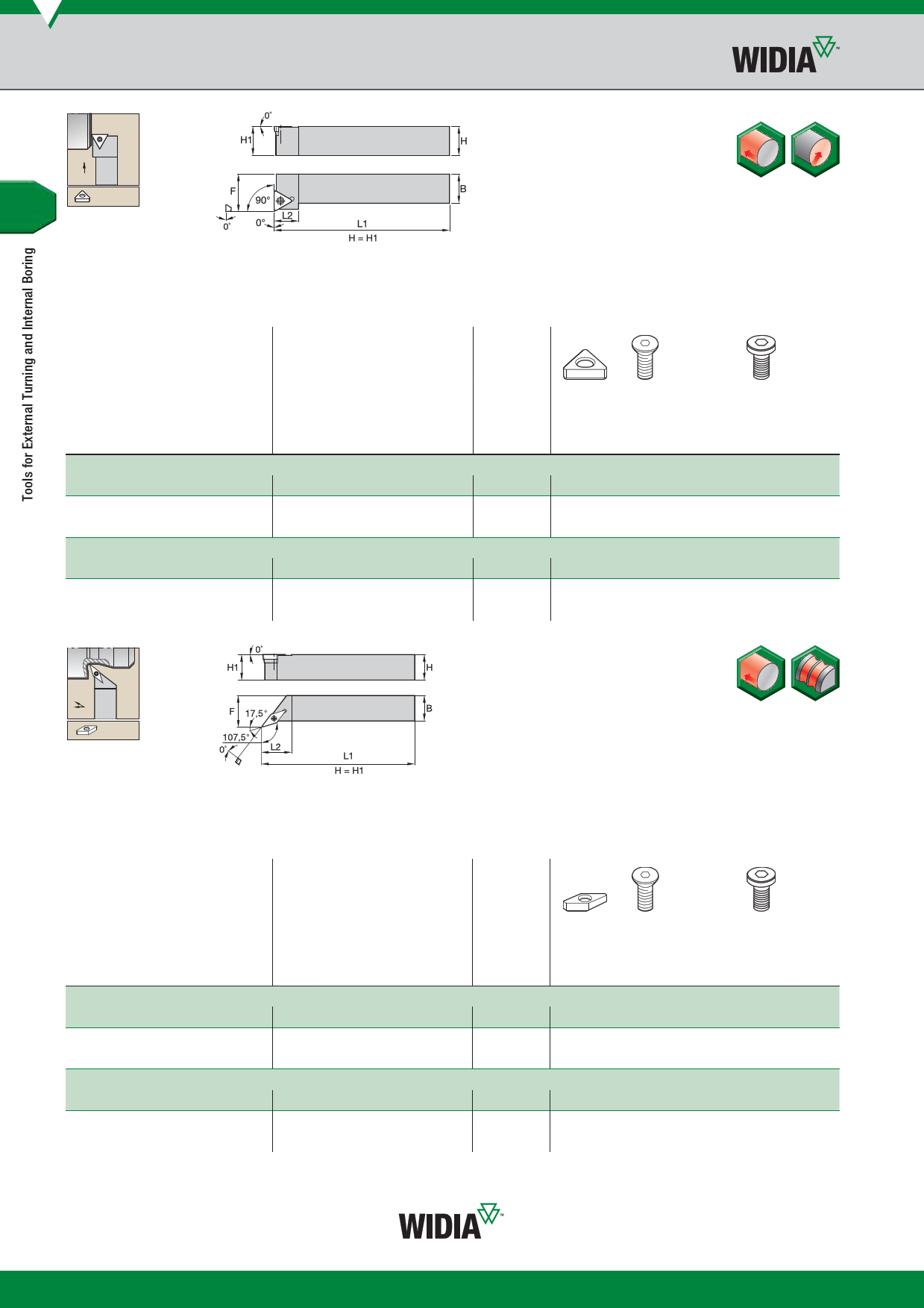

S-Style Screw Clamp Toolholders for Positive Inserts
See pages B81–B93
for inserts.
STFC 90°
order number catalogue number H B F L1 L2
gage
insert
shim
shim
screw
hex
insert
screw
Torx
right hand
3900184
STFCR1212F11
12 12 16,0 80 13,0 TC..110204
—
— — MS1153 T7
3879763
STFCR2020K16
20 20 25,0 125 20,0 TC..16T308 SKTP343 SRS3 3.5 mm MS1156 T15
3879750
STFCR2525M16
25 25 32,0 150 20,0 TC..16T308 SKTP343 SRS3 3.5 mm MS1156 T15
left hand
3879751
STFCL1616H16
16 16 20,0 100 20,0 TC..16T308 SKTP343 SRS3 3.5 mm MS1156 T15
3879748
STFCL2020K16
20 20 25,0 125 20,0 TC..16T308 SKTP343 SRS3 3.5 mm MS1156 T15
3879752
STFCL2525M16
25 25 32,0 150 20,0 TC..16T308 SKTP343 SRS3 3.5 mm MS1156 T15
See pages B94–B99
for inserts.
SVHB 107,5°
order number catalogue number H B F L1 L2
gage
insert
shim
shim
screw
hex
insert
screw
Torx
right hand
3879767
SVHBR2020K16
20 20 25,0 125 28,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879765
SVHBR2525M16 25 25 32,0 150 28,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879853
SVHBR3225P16
32 25 32,0 170 25,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
left hand
3879764
SVHBL2020K16
20 20 25,0 125 28,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879766
SVHBL2525M16 25 25 32,0 150 28,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879768
SVHBL3225P16
32 25 32,0 170 25,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
