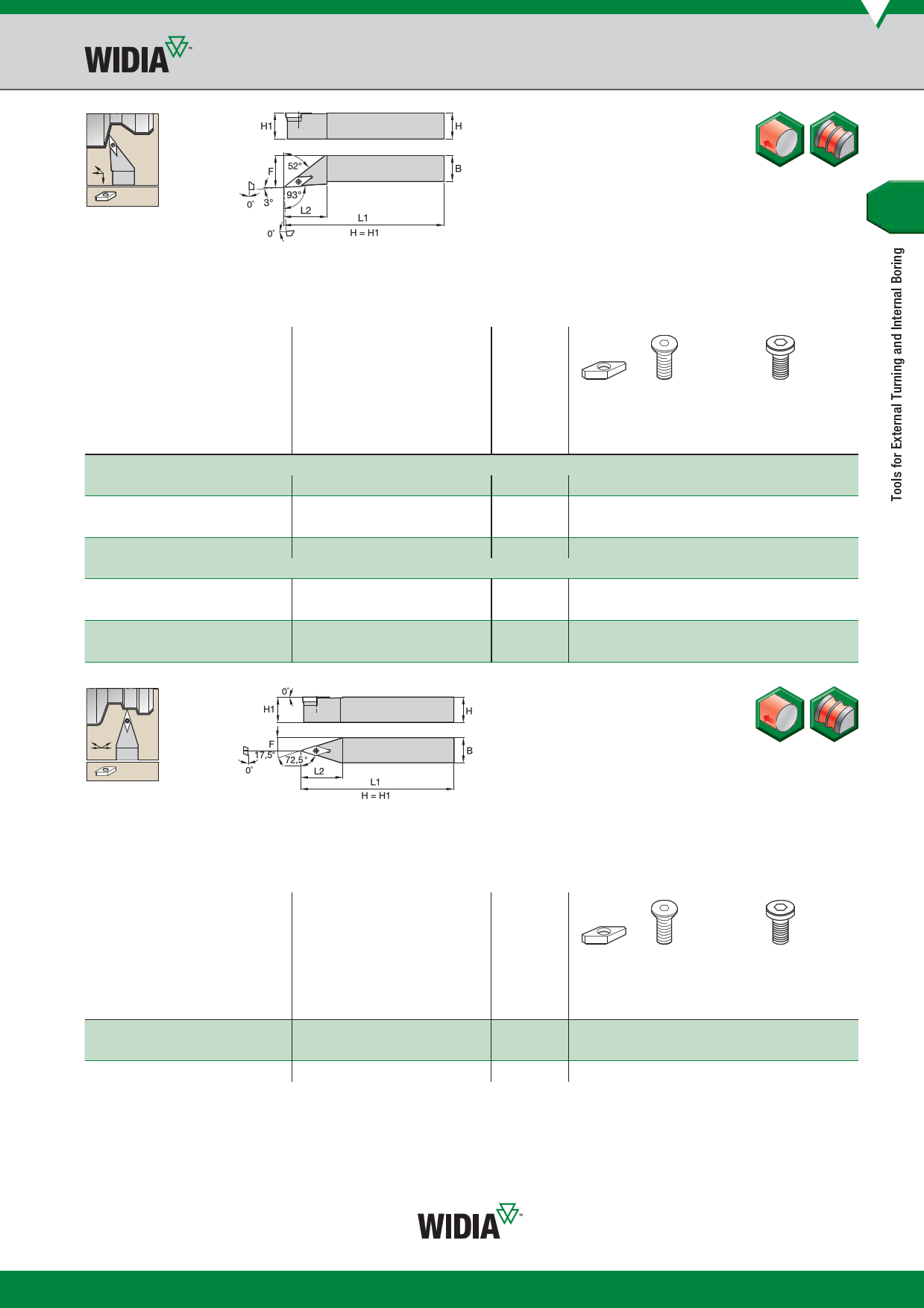

S-Style Screw Clamp Toolholders for Positive Inserts
See pages B94–B99
for inserts.
SVJB 93°
order number catalogue number H B F L1 L2
gage
insert
shim
shim
screw
hex
insert
screw
Torx
right hand
3879769
SVJBR1616H16
16 16 20,0 100 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879776
SVJBR2020K16
20 20 25,0 125 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879775
SVJBR2525M16
25 25 32,0 150 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879773
SVJBR3225P16
32 25 32,0 170 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
left hand
3879772
SVJBL1616H16
16 16 20,0 100 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879770
SVJBL2020K16
20 20 25,0 125 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879774
SVJBL2525M16
25 25 32,0 150 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879771
SVJBL3225P16
32 25 32,0 170 35,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
See pages B94–B99
for inserts.
SVVB 72,5°
order number catalogue number H B F L1 L2
gage
insert
shim
shim
screw
hex
insert
screw
Torx
3879777
SVVBN2020K16
20 20 10,0 125 33,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879778
SVVBN2525M16 25 25 12,5 150 33,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
3879779
SVVBN3225P16
32 25 12,5 170 33,0 VB..160408 SKVN343 SRS3 3.5 mm MS1156 T15
