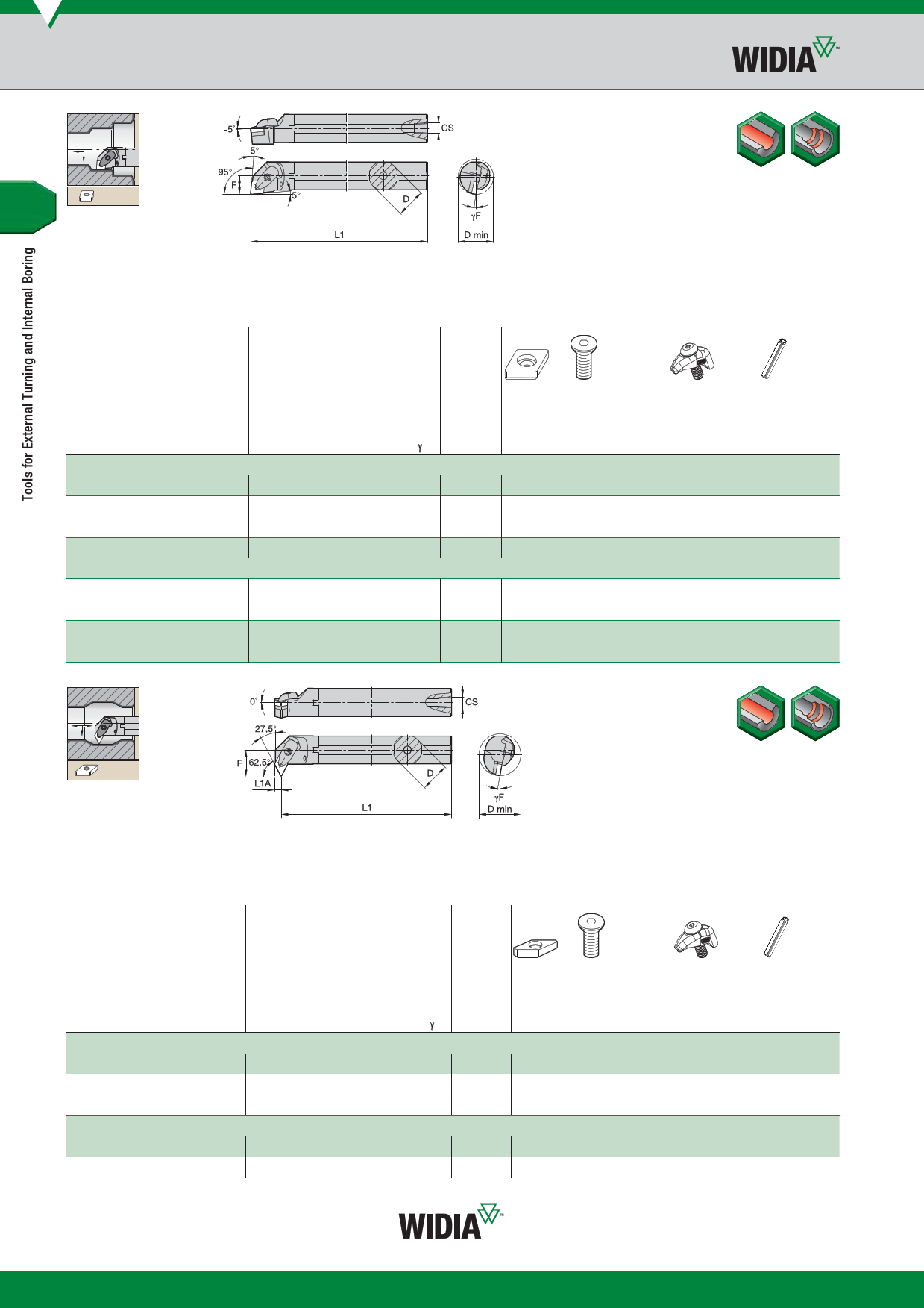

D-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B30–B46
for inserts.
A-DCLN 95°
gage
shim Torx
clamp
order number catalogue number D D min F L1 CS aF° insert shim screw Plus assembly
slotted Torx
pin Plus
right hand
5696071 A25RDCLNR12KC04 25 32,0 17,0 200 1/4-18 NPT -12.0 CN..120408
—
— — CM234RLP ASSY SSP025016M 15 IP
5696073 A32SDCLNR12KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 CN..120408 ICSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696075 A40TDCLNR12KC04 40 50,0 27,0 300 1/4-18 NPT -9.0 CN..120408 ICSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696077 A40TDCLNR16KC06 32 45,0 27,0 250 1/4-18 NPT -12.0 CN..160612 ICSN533 KMSP515IP 15 IP CM209R ASSY SSP025018M 15 IP
left hand
5696072 A25RDCLNL12KC04 25 32,0 17,0 200 1/4-18 NPT -12.0 CN..120408
—
— — CM234RLP ASSY SSP025016M 15 IP
5696074 A32SDCLNL12KC04 40 50,0 27,0 300 1/4-18 NPT -9.0 CN..120408 ICSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696076 A40TDCLNL12KC04 32 45,0 27,0 250 1/4-18 NPT -12.0 DN..150608 ICSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696078 A40TDCLNL16KC06 32 45,0 27,0 250 1/4-18 NPT -12.0 CN..160612 ICSN533 KMSP515IP 15 IP CM209R ASSY SSP025018M 15 IP
Steel shank with
through coolant.
See pages B47–B64
for inserts.
A-DDPN 117,5°
order number catalogue number D D min F L1 L1A CS
gage
aF° insert
shim
shim Torx
screw Plus
clamp
assembly
slotted Torx
pin Plus
right hand
5696079 A25RDDPNR11KC04 32 45,0 27,0 250 6,5 1/4-18 NPT -12.0 DN..150608 IDSN322 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP
5696080 A32SDDPNR15KC06 40 52,0 30,0 300 6,6 1/4-18 NPT -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696082 A40TDDPNR15KC06 40 52,0 30,0 300 6,6 1/4-18 NPT -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
left hand
5696081 A32SDDPNL15KC06 40 52,0 30,0 300 6,6 1/4-18 NPT -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696083 A40TDDPNL15KC06 40 52,0 30,0 300 6,6 1/4-18 NP -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
C56
