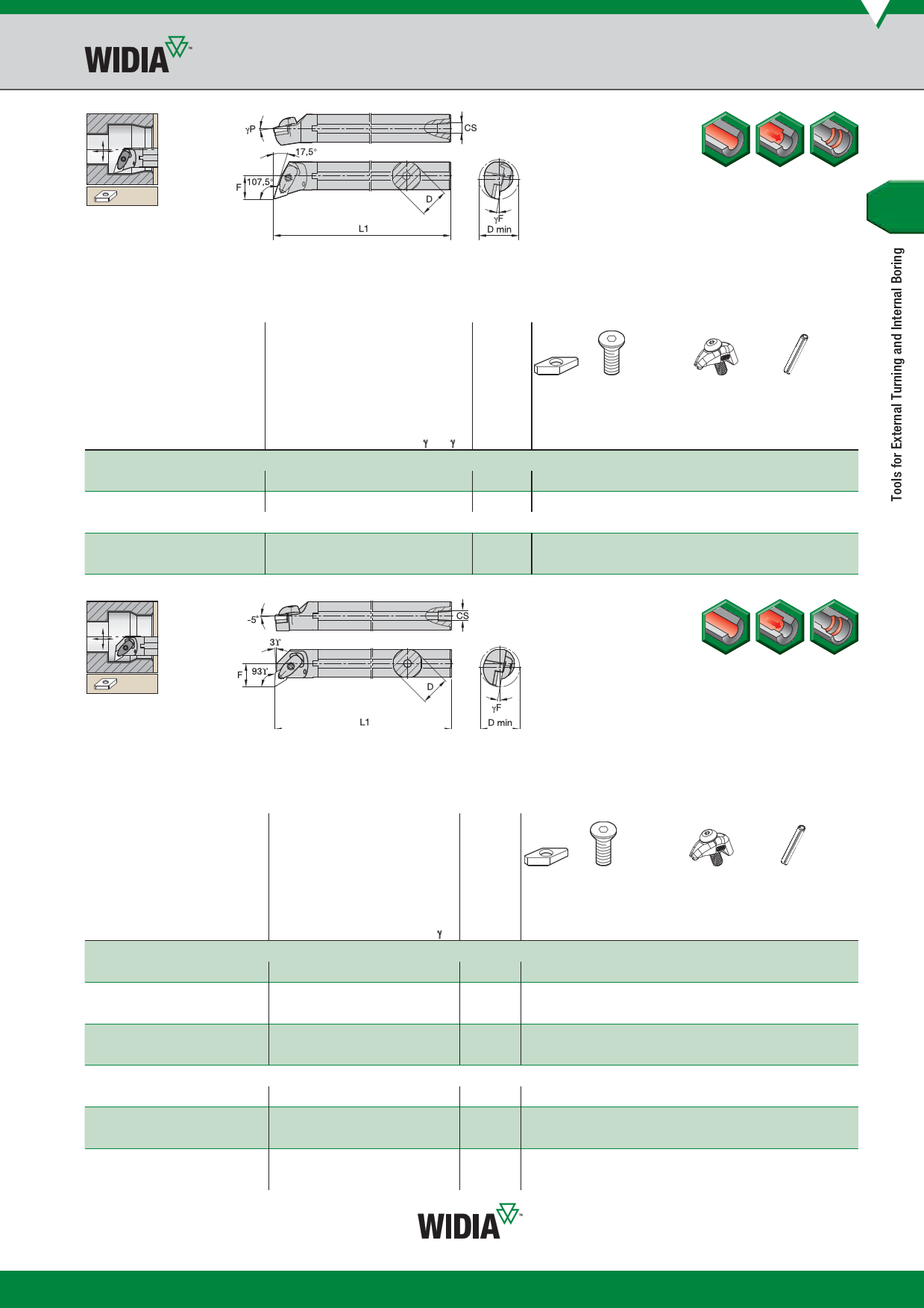

D-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B47–B64
for inserts.
A-DDQN 107,5°
order number catalogue number D D min F L1 CS
gage
aF° aP° insert
shim
shim Torx
screw Plus
clamp
assembly
slotted Torx
pin Plus
right hand
5696085 A32SDDQNR15KC06 32 40,0 22,0 250 1/4-18 NPT -12.0 -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234RLP ASSY SSP025016M 15 IP
5696087 A40TDDQNR15KC06 40 50,0 27,0 300 1/4-18 NPT -10.0 -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
left hand
5696086 A32SDDQNL15KC06 32 40,0 22,0 250 1/4-18 NPT -12.0 -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234RLP ASSY SSP025016M 15 IP
5696088 A40TDDQNL15KC06 40 50,0 27,0 300 1/4-18 NPT -10.0 -10.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
Steel shank with
through coolant.
See pages B47–B64
for inserts.
A-DDUN 93°
gage
shim Torx
clamp
order number catalogue number D D min F L1 CS aF° insert shim screw Plus assembly
slotted Torx
pin Plus
right hand
5696089 A25RDDUNR11KC04 25 32,0 17,0 200 1/4-18 NPT -12.0 DN..110408
—
— — CM234RLP ASSY SSP025016M 15 IP
5696211 A32SDDUNR11KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 DN..110408 IDSN322 KMSP315IP 15 IP CM234R ASSY SSP025016M 15 IP
5696213 A32SDDUNR15KC06 32 40,0 22,0 250 1/4-18 NPT -12.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696215 A40TDDUNR15KC06 40 50,0 27,0 300 1/4-18 NPT -9.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696217 A50UDDUNR15KC06 50 63,0 35,0 350 1/4-18 NPT -7.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
left hand
5696210 A25RDDUNL11KC04 25 32,0 17,0 200 1/4-18 NPT -12.0 DN..110408
—
— — CM234RLP ASSY SSP025016M 15 IP
5696212 A32SDDUNL11KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 DN..110408 IDSN322 KMSP315IP 15 IP CM234R ASSY SSP025016M 15 IP
5696214 A32SDDUNL15KC06 32 40,0 22,0 250 1/4-18 NPT -12.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696216 A40TDDUNL15KC06 40 50,0 27,0 300 1/4-18 NPT -9.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
5696218 A50UDDUNL15KC06 50 63,0 35,0 350 1/4-18 NPT -7.0 DN..150608 IDSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
