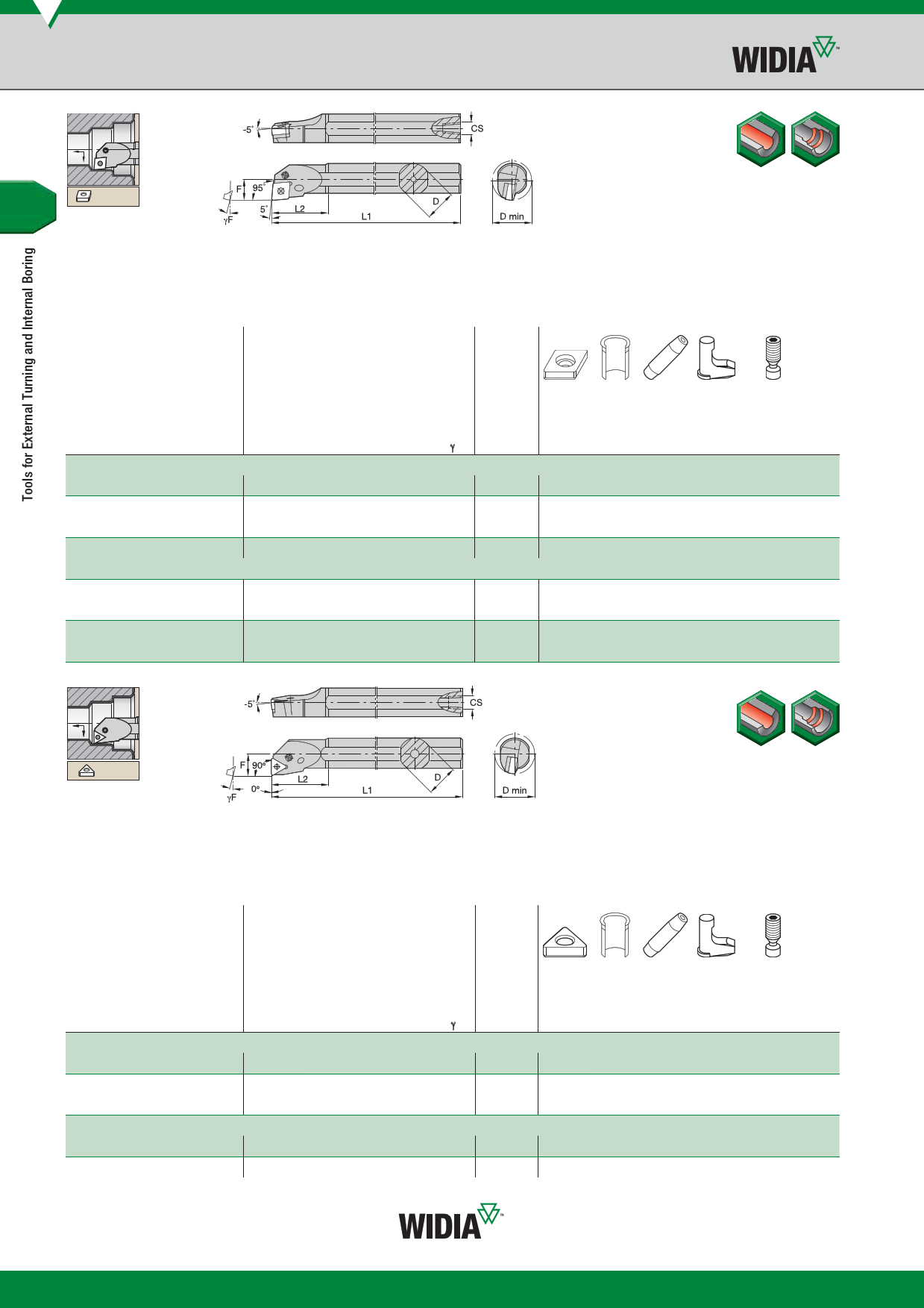

P-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B30–B46
for inserts.
A-PCLN 95°
order number catalogue number D D min F L1 L2 CS
gage
aF° insert
right hand
3883468
A25TPCLNR12 25 32,0 17,0 300 40 1/4-18 NPT -12.0 CN..120408
shim
—
shim
pin
—
toggle
pin lever
— 511.022
3883466
A32UPCLNR12 32 40,0 22,0 350 50 1/4-18 NPT -10.0 CN..120408 512.112 513.023 515.018 511.023
3883463
3883442
A40VPCLNR12 40 50,0 27,0 400 55 1/4-18 NPT -10.0 CN..120408 512.112 513.023 515.018 511.023
A40VPCLNR16 40 50,0 27,0 400 55 1/4-18 NPT -11.0 CN..160612 512.117 513.025 515.022 511.025
left hand
3883469
3883467
A25TPCLNL12 25 32,0 17,0 300 40 1/4-18 NPT -12.0 CN..120408 — — — 511.022
A32UPCLNL12 32 0,0 22,0 350 50 1/4-18 NPT -10.0 CN..120408 512.112 513.023 515.018 511.023
3883465
3883464
A40VPCLNL12 40 50,0 27,0 400 55 1/4-18 NPT -10.0 CN..120408 512.112 513.023 515.018 511.023
A40VPCLNL16 40 50,0 27,0 400 55 1/4-18 NPT -11.0 CN..160612 512.117 513.025 515.022 511.025
lever
screw
514.122
514.123
514.123
514.125
514.122
514.123
514.123
514.125
Torx
Plus
10 IP
15 IP
15 IP
15 IP
10 IP
15 IP
15 IP
15 IP
Steel shank with
through coolant.
See pages B81–B93
for inserts.
A-PTFN 90°
order number catalogue number D D min F L1 L2 CS
gage
aF° insert
shim
shim
pin
toggle
pin lever
right hand
3883263
A25TPTFNR16 25 32,0 17,0 300 40 1/4-18 NPT -12.0 TN..160408 512.013 513.018 515.018 511.018
3883151
A32UPTFNR16 32 40,0 22,0 350 50 1/4-18 NPT -10.0 TN..160408 512.013 513.018 515.018 511.018
3883149
A40VPTFNR22 40 48,0 27,0 400 55 1/4-18 NPT -10.0 TN..220408 512.023 513.023 515.018 511.023
left hand
3883264
A25TPTFNL16 25 32,0 17,0 300 40 1/4-18 NPT -12.0 TN..160408 512.013 513.018 515.018 511.018
3883150
A40VPTFNL22 40 48,0 27,0 400 55 1/4-18 NPT -10.0 TN..220408 512.023 513.023 515.018 511.023
lever
screw
514.118
514.118
514.123
514.118
514.123
Torx
Plus
10 IP
10 IP
15 IP
10 IP
15 IP
